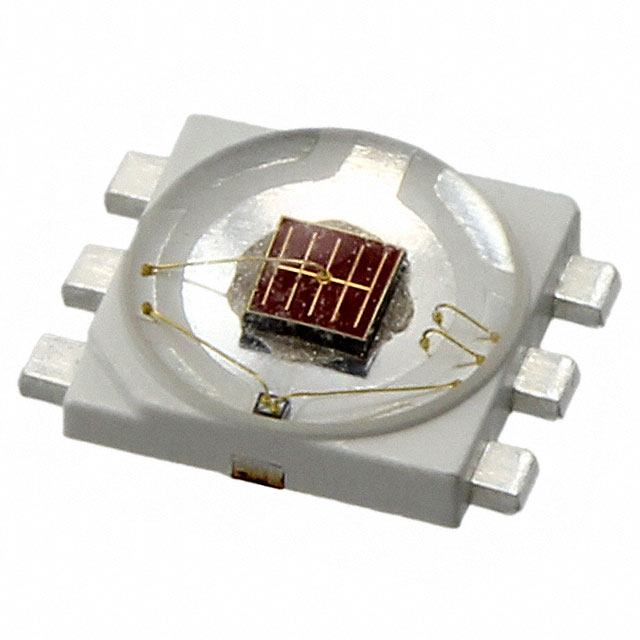

ASMT-JR10-ARS01

Obsolete

Broadcom Limited

LED RED 628NM 1W

Search across all available documentation for this part.

Obsolete

Broadcom Limited

LED RED 628NM 1W

Technical Specifications

Parameters and characteristics for this part

Specification	ASMT-JR10-ARS01

Color	Red
Current - Max [Max]	500 mA
Current - Test	350 mA
Height - Seated (Max) [Max]	1.95 mm
Height - Seated (Max) [Max]	0.077 in
Lumens/Watt @ Current - Test	95 lm/W
Luminous Flux @ Current/Temperature	70 lm
Luminous Flux @ Current/Temperature [Max]	87 lm
Luminous Flux @ Current/Temperature [Min]	52 lm
Mounting Type	Surface Mount
Package / Case	6-SMD, Flat Lead Exposed Pad
Size / Dimension [x]	4 mm
Size / Dimension [x]	0.157 "
Size / Dimension [y]	0.157 in
Size / Dimension [y]	4 mm
Thermal Resistance of Package [diameter]	9 °C/W
Viewing Angle	165 °
Voltage - Forward (Vf) (Typ)	2.1 V
Wavelength	628 nm
Wavelength [Max]	635 nm
Wavelength [Min]	620 nm

Part	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Lumens/Watt @ Current - Test	Viewing Angle	Luminous Flux @ Current/Temperature	Voltage - Forward (Vf) (Typ)	Current - Max [Max]	Current - Test	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Supplier Device Package	Wavelength	Color	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]	Wavelength [Min]	Wavelength [Max]	Thermal Resistance of Package [diameter]
Broadcom Limited ASMT-JR10-AST01	Surface Mount	0.157 in	4 mm	4 mm	0.157 "	84 lm/W	165 °	62 lm	2.1 V	500 mA	350 mA	1.95 mm	0.077 in	1616 (4040 Metric)	1616	625 nm	Red
Broadcom Limited ASMT-JR10-ARS01	Surface Mount	0.157 in	4 mm	4 mm	0.157 "	95 lm/W	165 °	70 lm	2.1 V	500 mA	350 mA	1.95 mm	0.077 in	6-SMD Flat Lead Exposed Pad		628 nm	Red	87 lm	52 lm	620 nm	635 nm	9 °C/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting Color - Red 628nm (620nm ~ 635nm) 6-SMD, Flat Lead Exposed Pad
