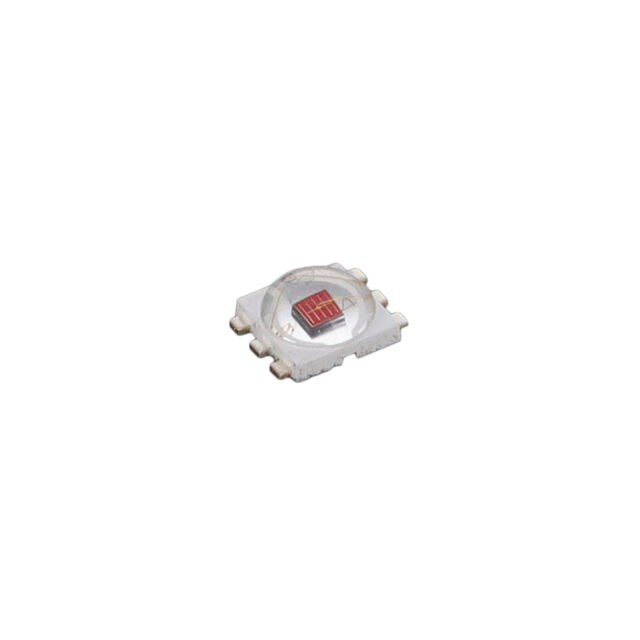

ASMT-JR10-AST01

Active

Broadcom Limited

MS JD,1W RED

Search across all available documentation for this part.

Active

Broadcom Limited

MS JD,1W RED

Technical Specifications

Parameters and characteristics for this part

Specification	ASMT-JR10-AST01

Color	Red
Current - Max [Max]	500 mA
Current - Test	350 mA
Height - Seated (Max) [Max]	1.95 mm
Height - Seated (Max) [Max]	0.077 in
Lumens/Watt @ Current - Test	84 lm/W
Luminous Flux @ Current/Temperature	62 lm
Mounting Type	Surface Mount
Package / Case	1616 (4040 Metric)
Size / Dimension [x]	4 mm
Size / Dimension [x]	0.157 "
Size / Dimension [y]	0.157 in
Size / Dimension [y]	4 mm
Supplier Device Package	1616
Viewing Angle	165 °
Voltage - Forward (Vf) (Typ)	2.1 V
Wavelength	625 nm

Part	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Lumens/Watt @ Current - Test	Viewing Angle	Luminous Flux @ Current/Temperature	Voltage - Forward (Vf) (Typ)	Current - Max [Max]	Current - Test	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Supplier Device Package	Wavelength	Color	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]	Wavelength [Min]	Wavelength [Max]	Thermal Resistance of Package [diameter]
Broadcom Limited ASMT-JR10-AST01	Surface Mount	0.157 in	4 mm	4 mm	0.157 "	84 lm/W	165 °	62 lm	2.1 V	500 mA	350 mA	1.95 mm	0.077 in	1616 (4040 Metric)	1616	625 nm	Red
Broadcom Limited ASMT-JR10-ARS01	Surface Mount	0.157 in	4 mm	4 mm	0.157 "	95 lm/W	165 °	70 lm	2.1 V	500 mA	350 mA	1.95 mm	0.077 in	6-SMD Flat Lead Exposed Pad		628 nm	Red	87 lm	52 lm	620 nm	635 nm	9 °C/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting Color ASMT-Jx1x Red 625nm 1616 (4040 Metric)
