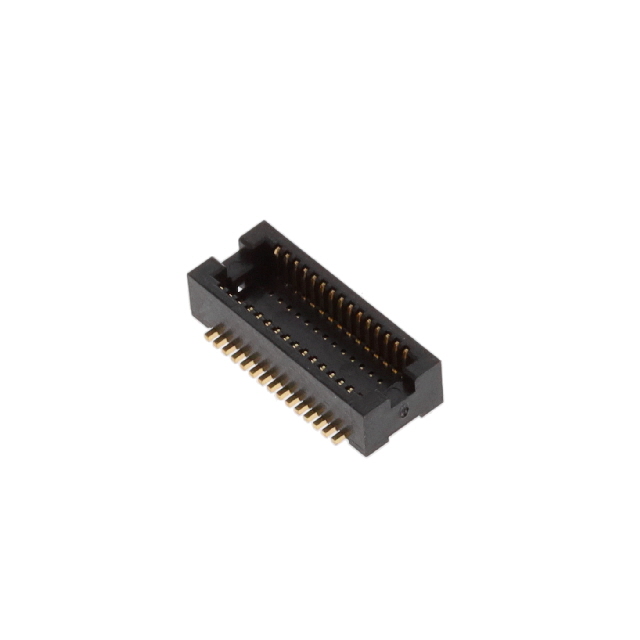

DF12NC(3.0)-30DP-0.5V(51)

Active

Hirose Electric USA, Inc.

CONN HDR 30POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF12NC(3.0)-30DP-0.5V(51)

Active

Hirose Electric USA, Inc.

CONN HDR 30POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF12NC(3.0)-30DP-0.5V(51)

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Height Above Board [z]	0.091 in
Height Above Board [z]	2.3 mm
Mated Stacking Heights	3 mm
Mounting Type	Surface Mount
Number of Positions	30
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

DF12NC(3.0) Series

Part	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Rows	Mounting Type	Height Above Board	Height Above Board	Mated Stacking Heights	Number of Positions	Pitch [x]	Pitch [x]	Height Above Board [z]	Height Above Board [z]
Hirose Electric USA, Inc. DF12NC(3.0)-80DS-0.5V(51)	Center Strip Contacts Receptacle	8 çin	0.203 çm	Gold	2	Surface Mount	0.087 in	2.2 mm	3 mm	80	0.5 mm	0.02 in
Hirose Electric USA, Inc. DF12NC(3.0)-10DS-0.5V(51)	Center Strip Contacts Receptacle	8 çin	0.203 çm	Gold	2	Surface Mount	0.087 in	2.2 mm	3 mm	10	0.5 mm	0.02 in
Hirose Electric USA, Inc. DF12NC(3.0)-36DS-0.5V(51)	Center Strip Contacts Receptacle	8 çin	0.203 çm	Gold	2	Surface Mount	0.087 in	2.2 mm	3 mm	36	0.5 mm	0.02 in
Hirose Electric USA, Inc. DF12NC(3.0)-60DS-0.5V(51)	Center Strip Contacts Receptacle	8 çin	0.203 çm	Gold	2	Surface Mount	0.087 in	2.2 mm	3 mm	60	0.5 mm	0.02 in
Hirose Electric USA, Inc. DF12NC(3.0)-32DP-0.5V(51)	Header Outer Shroud Contacts	8 çin	0.203 çm	Gold	2	Surface Mount			3 mm		0.5 mm	0.02 in	0.091 in	2.3 mm
Hirose Electric USA, Inc. DF12NC(3.0)-40DS-0.5V(51)	Center Strip Contacts Receptacle	8 çin	0.203 çm	Gold	2	Surface Mount	0.087 in	2.2 mm	3 mm	40	0.5 mm	0.02 in
Hirose Electric USA, Inc. DF12NC(3.0)-60DP-0.5V(51)	Header Outer Shroud Contacts	8 çin	0.203 çm	Gold	2	Surface Mount			3 mm	60	0.5 mm	0.02 in	0.091 in	2.3 mm
Hirose Electric USA, Inc. DF12NC(3.0)-30DP-0.5V(51)	Header Outer Shroud Contacts	8 çin	0.203 çm	Gold	2	Surface Mount			3 mm	30	0.5 mm	0.02 in	0.091 in	2.3 mm
Hirose Electric USA, Inc. DF12NC(3.0)-30DS-0.5V(51)	Center Strip Contacts Receptacle	8 çin	0.203 çm	Gold	2	Surface Mount	0.087 in	2.2 mm	3 mm	30	0.5 mm	0.02 in
Hirose Electric USA, Inc. DF12NC(3.0)-32DS-0.5V(51)	Center Strip Contacts Receptacle	8 çin	0.203 çm	Gold	2	Surface Mount	0.087 in	2.2 mm	3 mm		0.5 mm	0.02 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.46
		10	$ 1.24
		25	$ 1.16
		50	$ 1.10
		100	$ 1.05
		250	$ 0.99
		500	$ 0.94
	Digi-Reel®	1	$ 1.55
		10	$ 1.35
		25	$ 1.30
		50	$ 1.27
		100	$ 1.21
		250	$ 1.09
		500	$ 1.01
	Tape & Reel (TR)	1000	$ 0.89
		2000	$ 0.85
		3000	$ 0.83
		5000	$ 0.80
		7000	$ 0.78
		10000	$ 0.76

Description

General part information

DF12NC(3.0) Series

30 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
