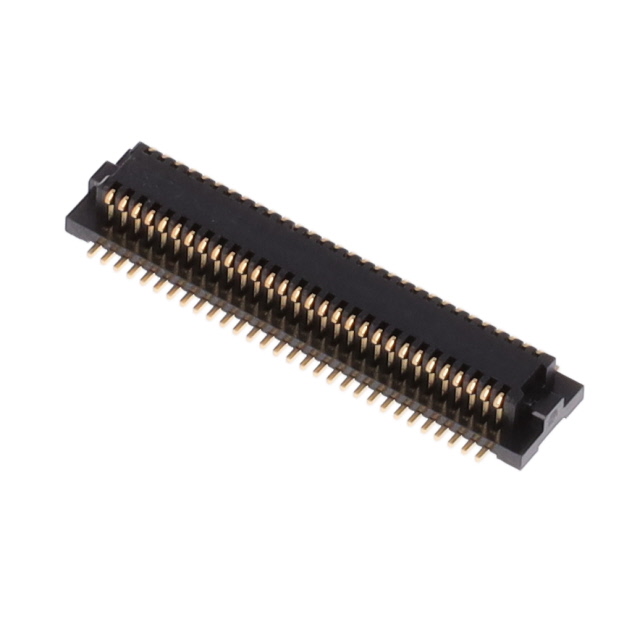

DF12NC(3.0)-60DS-0.5V(51)

Active

Hirose Electric USA, Inc.

CONN RCPT 60POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF12NC(3.0)-60DS-0.5V(51)

Active

Hirose Electric USA, Inc.

CONN RCPT 60POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF12NC(3.0)-60DS-0.5V(51)

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Height Above Board	0.087 in
Height Above Board	2.2 mm
Mated Stacking Heights	3 mm
Mounting Type	Surface Mount
Number of Positions	60
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

DF12NC(3.0) Series

Part	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Rows	Mounting Type	Height Above Board	Height Above Board	Mated Stacking Heights	Number of Positions	Pitch [x]	Pitch [x]	Height Above Board [z]	Height Above Board [z]
Hirose Electric USA, Inc. DF12NC(3.0)-80DS-0.5V(51)	Center Strip Contacts Receptacle	8 çin	0.203 çm	Gold	2	Surface Mount	0.087 in	2.2 mm	3 mm	80	0.5 mm	0.02 in
Hirose Electric USA, Inc. DF12NC(3.0)-10DS-0.5V(51)	Center Strip Contacts Receptacle	8 çin	0.203 çm	Gold	2	Surface Mount	0.087 in	2.2 mm	3 mm	10	0.5 mm	0.02 in
Hirose Electric USA, Inc. DF12NC(3.0)-36DS-0.5V(51)	Center Strip Contacts Receptacle	8 çin	0.203 çm	Gold	2	Surface Mount	0.087 in	2.2 mm	3 mm	36	0.5 mm	0.02 in
Hirose Electric USA, Inc. DF12NC(3.0)-60DS-0.5V(51)	Center Strip Contacts Receptacle	8 çin	0.203 çm	Gold	2	Surface Mount	0.087 in	2.2 mm	3 mm	60	0.5 mm	0.02 in
Hirose Electric USA, Inc. DF12NC(3.0)-32DP-0.5V(51)	Header Outer Shroud Contacts	8 çin	0.203 çm	Gold	2	Surface Mount			3 mm		0.5 mm	0.02 in	0.091 in	2.3 mm
Hirose Electric USA, Inc. DF12NC(3.0)-40DS-0.5V(51)	Center Strip Contacts Receptacle	8 çin	0.203 çm	Gold	2	Surface Mount	0.087 in	2.2 mm	3 mm	40	0.5 mm	0.02 in
Hirose Electric USA, Inc. DF12NC(3.0)-60DP-0.5V(51)	Header Outer Shroud Contacts	8 çin	0.203 çm	Gold	2	Surface Mount			3 mm	60	0.5 mm	0.02 in	0.091 in	2.3 mm
Hirose Electric USA, Inc. DF12NC(3.0)-30DP-0.5V(51)	Header Outer Shroud Contacts	8 çin	0.203 çm	Gold	2	Surface Mount			3 mm	30	0.5 mm	0.02 in	0.091 in	2.3 mm
Hirose Electric USA, Inc. DF12NC(3.0)-30DS-0.5V(51)	Center Strip Contacts Receptacle	8 çin	0.203 çm	Gold	2	Surface Mount	0.087 in	2.2 mm	3 mm	30	0.5 mm	0.02 in
Hirose Electric USA, Inc. DF12NC(3.0)-32DS-0.5V(51)	Center Strip Contacts Receptacle	8 çin	0.203 çm	Gold	2	Surface Mount	0.087 in	2.2 mm	3 mm		0.5 mm	0.02 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.77
		10	$ 1.54
		25	$ 1.48
		50	$ 1.44
		100	$ 1.38
		250	$ 1.25
		500	$ 1.15
	Digi-Reel®	1	$ 1.77
		10	$ 1.54
		25	$ 1.48
		50	$ 1.44
		100	$ 1.38
		250	$ 1.25
		500	$ 1.15
	Tape & Reel (TR)	1000	$ 0.98
		2000	$ 0.95
		3000	$ 0.92
		5000	$ 0.87
		10000	$ 0.85

Description

General part information

DF12NC(3.0) Series

60 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
