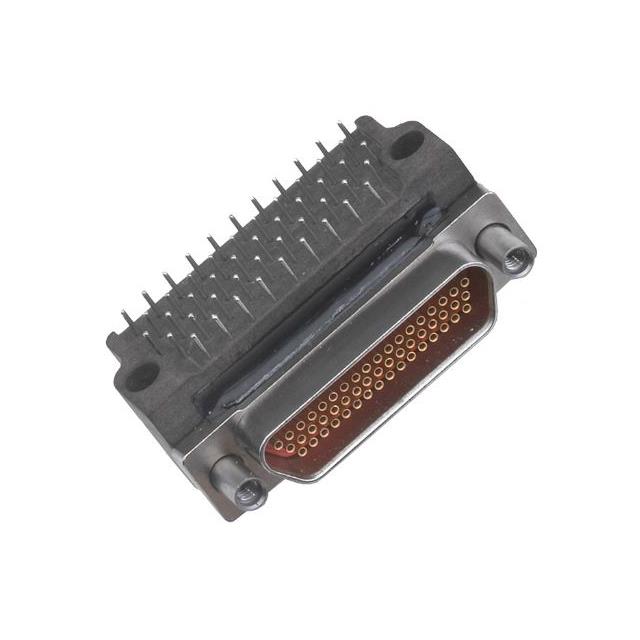

M83513/10-C01CP

Active

Cinch Connectivity Solutions Trompeter

21 POS PLUG RED. 90 PCB CD PLTD

Deep-Dive with AI

Search across all available documentation for this part.

M83513/10-C01CP

Active

Cinch Connectivity Solutions Trompeter

21 POS PLUG RED. 90 PCB CD PLTD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M83513/10-C01CP

Backset Spacing	3.3 mm
Backset Spacing	0.13 in
Connector Style	Micro-D, D-Type
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester, Glass Filled
Flange Feature	Mating Side, Female Screwlock (2-56)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	21
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Yellow Chromate Plated Cadmium, Aluminum Alloy
Shell Size, Connector Layout [custom]	0.043
Shell Size, Connector Layout [custom]	0.05
Termination	Solder

M83513/10 Series

Part	Number of Positions	Mounting Type	Current Rating (Amps)	Backset Spacing	Backset Spacing	Flange Feature	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Dielectric Material	Shell Material, Finish	Contact Material	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Termination	Material Flammability Rating	Connector Type	Number of Rows
Cinch Connectivity Solutions Trompeter M83513/10-E01NP	31	Through Hole Right Angle	3 A	3.3 mm	0.13 in	Female Screwlock (2-56) Mating Side	-55 °C	125 °C	Signal	Polyester Glass Filled	Aluminum Alloy Electroless Nickel Plated	Copper Alloy	Gold	50 µin	1.27 µm	D-Type Micro-D	0.043	0.05	Solder	UL94 V-0	Male Pins Plug
Cinch Connectivity Solutions Trompeter M83513/10-B01CP	15	Through Hole Right Angle	3 A	3.3 mm	0.13 in	Female Screwlock (2-56) Mating Side	-55 °C	125 °C	Signal	Polyester Glass Filled	Aluminum Alloy Yellow Chromate Plated Cadmium	Copper Alloy	Gold	50 µin	1.27 µm	D-Type Micro-D	0.043	0.05	Solder	UL94 V-0	Male Pins Plug	3
Cinch Connectivity Solutions Trompeter M83513/10-B01NP	15	Through Hole Right Angle	3 A	3.3 mm	0.13 in	Female Screwlock (2-56) Mating Side	-55 °C	125 °C	Signal	Polyester Glass Filled	Aluminum Alloy Electroless Nickel Plated	Copper Alloy	Gold	50 µin	1.27 µm	D-Type Micro-D	0.043	0.05	Solder	UL94 V-0	Male Pins Plug	3
Cinch Connectivity Solutions Trompeter M83513/10-C01CP	21	Through Hole Right Angle	3 A	3.3 mm	0.13 in	Female Screwlock (2-56) Mating Side	-55 °C	125 °C	Signal	Polyester Glass Filled	Aluminum Alloy Yellow Chromate Plated Cadmium	Copper Alloy	Gold	50 µin	1.27 µm	D-Type Micro-D	0.043	0.05	Solder	UL94 V-0	Male Pins Plug	3
Cinch Connectivity Solutions Trompeter M83513/10-A01NP	9	Through Hole Right Angle	3 A	5.84 mm	0.23 in	Female Screwlock (2-56) Mating Side	-55 °C	125 °C	Signal	Polyester Glass Filled	Aluminum Alloy Electroless Nickel Plated	Copper Alloy	Gold	50 µin	1.27 µm	D-Type Micro-D	0.043	0.05	Solder	UL94 V-0	Male Pins Plug	2
Cinch Connectivity Solutions Trompeter M83513/10-D01NP		Through Hole Right Angle	3 A	3.3 mm	0.13 in	Female Screwlock (2-56) Mating Side	-55 °C	125 °C	Signal	Polyester Glass Filled	Aluminum Alloy Electroless Nickel Plated	Copper Alloy	Gold	50 µin	1.27 µm	D-Type Micro-D	0.043	0.05	Solder	UL94 V-0	Male Pins Plug	3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 66.65
		10	$ 54.95
	Bulk	1	$ 889.27

Description

General part information

M83513/10 Series

21 Position D-Type, Micro-D Plug, Male Pins Connector

Documents

Technical documentation and resources

No documents available
