M83513/10-B01NP
ActiveCinch Connectivity Solutions Trompeter

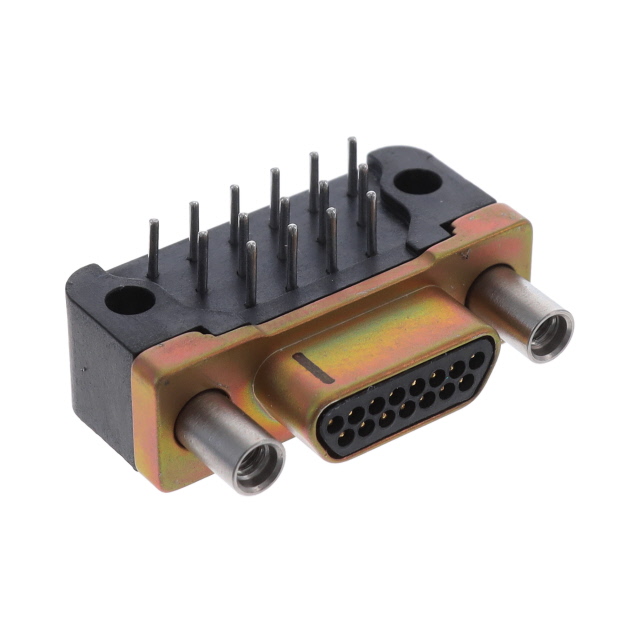

CONN MICRO-D PLUG 15POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
M83513/10-B01NP
ActiveCinch Connectivity Solutions Trompeter
CONN MICRO-D PLUG 15POS R/A SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M83513/10-B01NP |
|---|---|
| Backset Spacing | 3.3 mm |
| Backset Spacing | 0.13 in |
| Connector Style | Micro-D, D-Type |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polyester, Glass Filled |
| Flange Feature | Mating Side, Female Screwlock (2-56) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Aluminum Alloy, Electroless |
| Shell Size, Connector Layout [custom] | 0.043 |
| Shell Size, Connector Layout [custom] | 0.05 |
| Termination | Solder |
M83513/10 Series
| Part | Number of Positions | Mounting Type | Current Rating (Amps) | Backset Spacing | Backset Spacing | Flange Feature | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Dielectric Material | Shell Material, Finish | Contact Material | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Connector Style | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Termination | Material Flammability Rating | Connector Type | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cinch Connectivity Solutions Trompeter | 31 | Through Hole Right Angle | 3 A | 3.3 mm | 0.13 in | Female Screwlock (2-56) Mating Side | -55 °C | 125 °C | Signal | Polyester Glass Filled | Aluminum Alloy Electroless Nickel Plated | Copper Alloy | Gold | 50 µin | 1.27 µm | D-Type Micro-D | 0.043 | 0.05 | Solder | UL94 V-0 | Male Pins Plug | |
Cinch Connectivity Solutions Trompeter | 15 | Through Hole Right Angle | 3 A | 3.3 mm | 0.13 in | Female Screwlock (2-56) Mating Side | -55 °C | 125 °C | Signal | Polyester Glass Filled | Aluminum Alloy Yellow Chromate Plated Cadmium | Copper Alloy | Gold | 50 µin | 1.27 µm | D-Type Micro-D | 0.043 | 0.05 | Solder | UL94 V-0 | Male Pins Plug | 3 |
Cinch Connectivity Solutions Trompeter | 15 | Through Hole Right Angle | 3 A | 3.3 mm | 0.13 in | Female Screwlock (2-56) Mating Side | -55 °C | 125 °C | Signal | Polyester Glass Filled | Aluminum Alloy Electroless Nickel Plated | Copper Alloy | Gold | 50 µin | 1.27 µm | D-Type Micro-D | 0.043 | 0.05 | Solder | UL94 V-0 | Male Pins Plug | 3 |
Cinch Connectivity Solutions Trompeter | 21 | Through Hole Right Angle | 3 A | 3.3 mm | 0.13 in | Female Screwlock (2-56) Mating Side | -55 °C | 125 °C | Signal | Polyester Glass Filled | Aluminum Alloy Yellow Chromate Plated Cadmium | Copper Alloy | Gold | 50 µin | 1.27 µm | D-Type Micro-D | 0.043 | 0.05 | Solder | UL94 V-0 | Male Pins Plug | 3 |
Cinch Connectivity Solutions Trompeter | 9 | Through Hole Right Angle | 3 A | 5.84 mm | 0.23 in | Female Screwlock (2-56) Mating Side | -55 °C | 125 °C | Signal | Polyester Glass Filled | Aluminum Alloy Electroless Nickel Plated | Copper Alloy | Gold | 50 µin | 1.27 µm | D-Type Micro-D | 0.043 | 0.05 | Solder | UL94 V-0 | Male Pins Plug | 2 |
Cinch Connectivity Solutions Trompeter | Through Hole Right Angle | 3 A | 3.3 mm | 0.13 in | Female Screwlock (2-56) Mating Side | -55 °C | 125 °C | Signal | Polyester Glass Filled | Aluminum Alloy Electroless Nickel Plated | Copper Alloy | Gold | 50 µin | 1.27 µm | D-Type Micro-D | 0.043 | 0.05 | Solder | UL94 V-0 | Male Pins Plug | 3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 130.49 | |
| 10 | $ 101.74 | |||
| 25 | $ 92.66 | |||
| 50 | $ 86.53 | |||
| 100 | $ 81.00 | |||
| Bulk | 1 | $ 800.54 | ||
Description
General part information
M83513/10 Series
15 Position D-Type, Micro-D Plug, Male Pins Connector
Documents
Technical documentation and resources
No documents available
