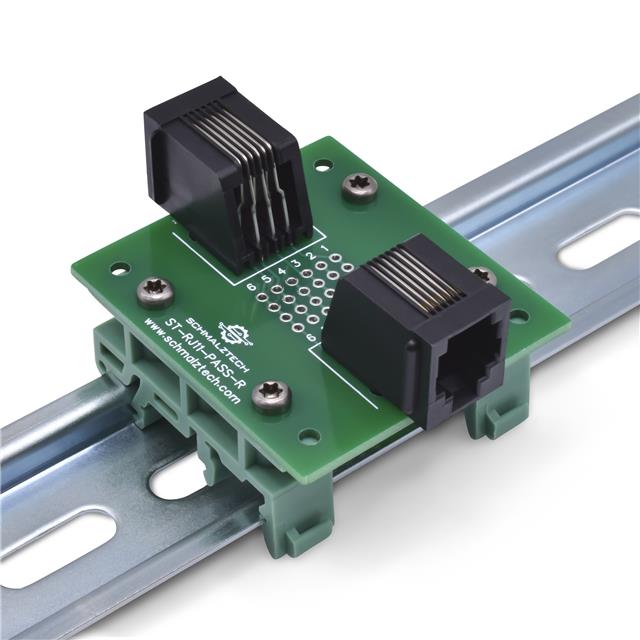

ST-RJ11-PASS-R-DIN

Active

SchmalzTech, LLC

RJ11 PASS-THROUGH BREAKOUT BOARD

Search across all available documentation for this part.

Active

SchmalzTech, LLC

RJ11 PASS-THROUGH BREAKOUT BOARD

Technical Specifications

Parameters and characteristics for this part

Specification	ST-RJ11-PASS-R-DIN

Number of Positions	6
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Proto Board Type	Connector to Plated Through Hole
Size / Dimension [x]	2 in
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	1.8 in
Size / Dimension [y]	45.72 mm

Part	Board Thickness	Board Thickness	Material	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Number of Positions	Proto Board Type	Package Accepted	Pitch [x]	Pitch [x]
SchmalzTech, LLC ST-RJ11-R-MIN	1.6 mm	0.063 in	FR4 Epoxy Glass	1.5 in	38.1 mm	1.2 "	30.48 mm	6	Connector to Terminal Block	RJ11
SchmalzTech, LLC ST-RJ11-PASS-R-FT				1.8 in	45.72 mm	2 in	50.8 mm	6	Connector to Plated Through Hole		2.54 mm	0.1 in
SchmalzTech, LLC ST-RJ11-PASS-R-DIN				1.8 in	45.72 mm	2 in	50.8 mm	6	Connector to Plated Through Hole		2.54 mm	0.1 in
SchmalzTech, LLC ST-RJ11-R-DIN	1.6 mm	0.063 in	FR4 Epoxy Glass	1.8 in	45.72 mm	2 in	50.8 mm	6	Connector to Terminal Block	RJ11

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RJ11 PASS-THROUGH BREAKOUT BOARD

Technical documentation and resources
