ST-RJ11-R-MIN

Active

SchmalzTech, LLC

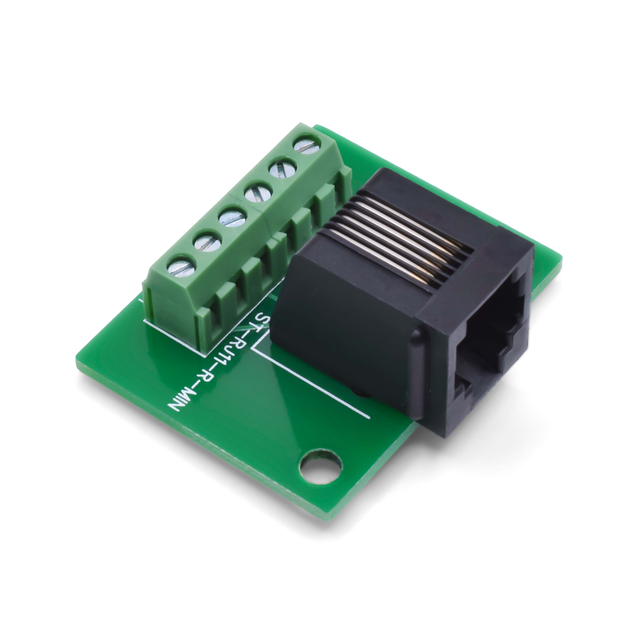

RJ11 MINI BREAKOUT BOARD

Search across all available documentation for this part.

Active

SchmalzTech, LLC

RJ11 MINI BREAKOUT BOARD

Technical Specifications

Parameters and characteristics for this part

Part	Board Thickness	Board Thickness	Material	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Number of Positions	Proto Board Type	Package Accepted	Pitch [x]	Pitch [x]
SchmalzTech, LLC ST-RJ11-R-MIN	1.6 mm	0.063 in	FR4 Epoxy Glass	1.5 in	38.1 mm	1.2 "	30.48 mm	6	Connector to Terminal Block	RJ11
SchmalzTech, LLC ST-RJ11-PASS-R-FT				1.8 in	45.72 mm	2 in	50.8 mm	6	Connector to Plated Through Hole		2.54 mm	0.1 in
SchmalzTech, LLC ST-RJ11-PASS-R-DIN				1.8 in	45.72 mm	2 in	50.8 mm	6	Connector to Plated Through Hole		2.54 mm	0.1 in
SchmalzTech, LLC ST-RJ11-R-DIN	1.6 mm	0.063 in	FR4 Epoxy Glass	1.8 in	45.72 mm	2 in	50.8 mm	6	Connector to Terminal Block	RJ11

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RJ11 MINI BREAKOUT BOARD

Technical documentation and resources
