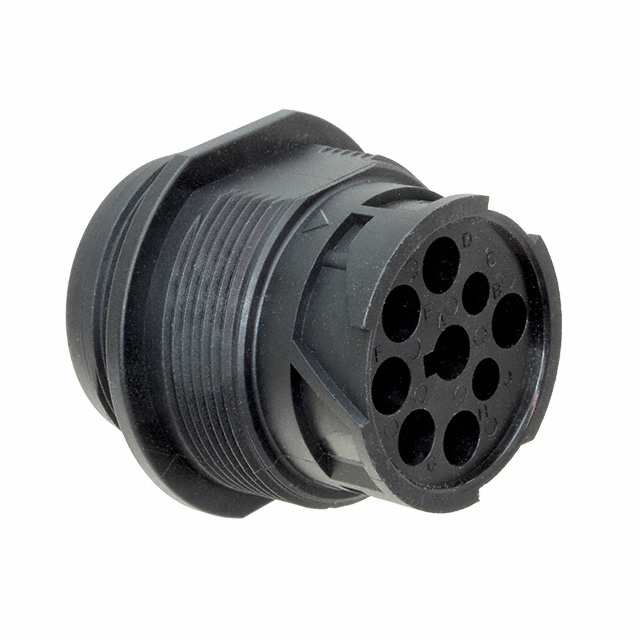

AHD10-9-1939P-B022
ActiveAmphenol Sine Systems Corp
CONN RCPT HSNG MALE 9POS PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
AHD10-9-1939P-B022
ActiveAmphenol Sine Systems Corp
CONN RCPT HSNG MALE 9POS PNL MNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AHD10-9-1939P-B022 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 16 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Housing Color | Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Feature | Flange |
| Note | Contacts Not Included |
| Number of Positions | 9 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Keyed |
| Shielding | Unshielded |
| Type | For Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.12 | |
| 10 | $ 9.45 | |||
| 25 | $ 8.86 | |||
| 50 | $ 8.44 | |||
| 100 | $ 8.03 | |||
| 300 | $ 7.43 | |||
| 500 | $ 7.17 | |||
| 1000 | $ 6.83 | |||
Description
General part information
AHD10 Series
9 Position Circular Connector Receptacle Housing Panel Mount
