DocumentsDatasheet AHD Series J1939 Type 1 & 2

AHD10-9-1939PNR

Active

Amphenol Sine Systems Corp

UNSEALED DIAGNOSTIC 9-POSITION R

Deep-Dive with AI

DocumentsDatasheet AHD Series J1939 Type 1 & 2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AHD10-9-1939PNR

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	9
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Shielding	Unshielded
Type	For Male Pins

AHD10 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Mounting Feature	Contact Size	Contact Type	Connector Type	Housing Color	Type	Note	Ingress Protection	Fastening Type	Orientation	Contact Shape	Shielding
Amphenol Sine Systems Corp AHD10-6-12P-L	-55 °C	125 °C	6	Flange	12	Crimp	Receptacle Housing	Gray	For Male Pins	Contacts Not Included	IP67 - Dust Tight Waterproof	Bayonet Lock	Keyed	Circular	Unshielded
Amphenol Sine Systems Corp AHD10-9-1939P80	-55 °C	125 °C	9	Flange	16	Crimp	Receptacle Housing	Green	For Male Pins	Contacts Not Included	IP67 - Dust Tight Waterproof	Bayonet Lock	Keyed	Circular	Unshielded
Amphenol Sine Systems Corp AHD10-9-1939P-BP80	-55 °C	125 °C	9	Flange	16	Crimp	Receptacle Housing	Green	For Male Pins	Contacts Not Included	IP67 - Dust Tight Waterproof	Bayonet Lock	Keyed	Circular	Unshielded
Amphenol Sine Systems Corp AHD10-9-1939PNR	-55 °C	125 °C	9	Flange	16	Crimp	Receptacle Housing	Black	For Male Pins	Contacts Not Included	IP67 - Dust Tight Waterproof	Bayonet Lock	Keyed	Circular	Unshielded
Amphenol Sine Systems Corp AHD10-9-1939PR-B022	-55 °C	125 °C	9	Flange	16	Crimp	Receptacle Housing	Black	For Male Pins	Contacts Not Included	IP67 - Dust Tight Waterproof	Bayonet Lock	Keyed	Circular	Unshielded
Amphenol Sine Systems Corp AHD10-9-1939P8R	-55 °C	125 °C	9	Flange	16	Crimp	Receptacle Housing	Green	For Male Pins	Contacts Not Included	IP67 - Dust Tight Waterproof	Bayonet Lock	Keyed	Circular	Unshielded
Amphenol Sine Systems Corp AHD10-9-1939P-B022	-55 °C	125 °C	9	Flange	16	Crimp	Receptacle Housing	Black	For Male Pins	Contacts Not Included	IP67 - Dust Tight Waterproof	Bayonet Lock	Keyed	Circular	Unshielded
Amphenol Sine Systems Corp AHD10-9-1939PE	-55 °C	125 °C	9	Flange	16	Crimp	Receptacle Housing	Black	For Male Pins	Contacts Not Included	IP67 - Dust Tight Waterproof	Bayonet Lock	Keyed	Circular	Unshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 8.88

Description

General part information

AHD10 Series

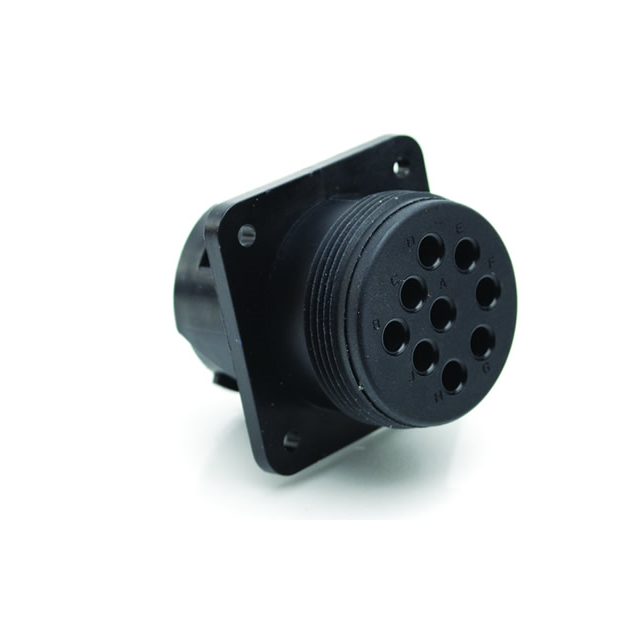

9 Position Circular Connector Receptacle Housing Panel Mount

Documents

Technical documentation and resources

Datasheet

AHD Series J1939 Type 1 & 2

Datasheet
