05K432-K00S3
ActiveRosenberger

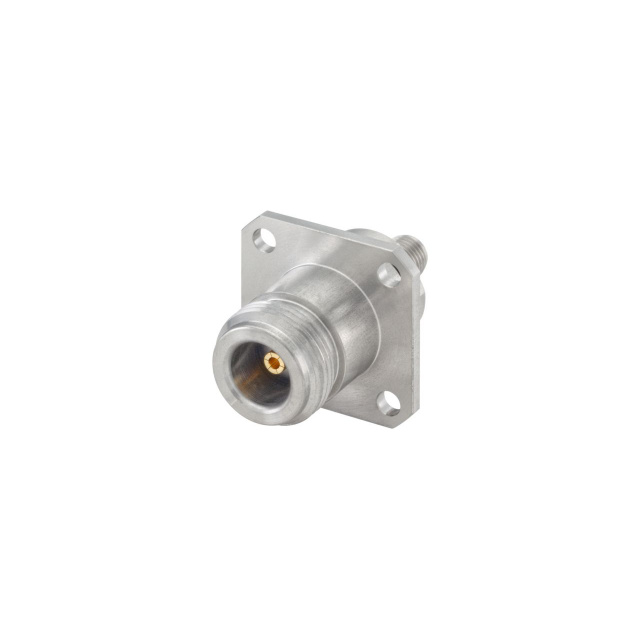

PRECISION N TYPE ADAPTER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
05K432-K00S3
ActiveRosenberger
PRECISION N TYPE ADAPTER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 05K432-K00S3 |
|---|---|
| Adapter Series | RJC-N to SMA |
| Adapter Type | Jack to Jack |
| Body Material | Stainless Steel |
| Center Contact Material | Brass, Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | N Jack, Female Socket |
| Convert To (Adapter End) | SMA Jack, Female Socket |
| Dielectric Material | Polyphenylene Ether (PPE), Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 18 GHz |
| Impedance | 50 Ohms |
| Insertion Loss | 0.42 dB |
| Mating Cycles | 500 |
| Mounting Feature | Flange |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 5 | $ 307.09 | |
Description
General part information
05K432 Series
Adapter Coaxial Connector N Jack, Female Socket To SMA Jack, Female Socket 50 Ohms
