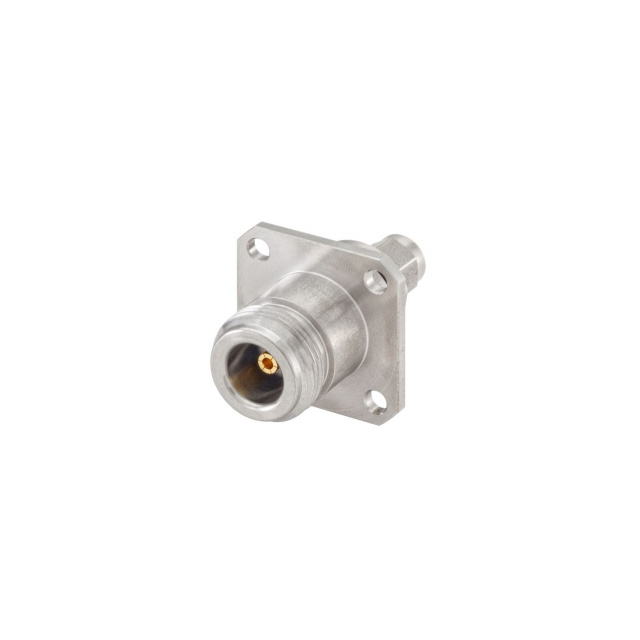

05K432-S00S3

Active

Rosenberger

PRECISION N TYPE ADAPTER

Search across all available documentation for this part.

Active

Rosenberger

PRECISION N TYPE ADAPTER

Technical Specifications

Parameters and characteristics for this part

Specification	05K432-S00S3

Adapter Series	SMA, RPC-N
Adapter Type	Plug to Jack
Body Material	Stainless Steel
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	SMA Plug, Male Pin
Dielectric Material	Polyphenylene Ether (PPE), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Insertion Loss	0.42 dB
Mating Cycles	500
Mounting Feature	Flange
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	Straight

Part	Frequency - Max [Max]	Body Material	Operating Temperature [Max]	Operating Temperature [Min]	Insertion Loss	Center Contact Material	Center Contact Plating	Dielectric Material	Style	Adapter Series	Conversion Type	Impedance	Mating Cycles	Convert To (Adapter End)	Convert From (Adapter End)	Adapter Type	Mounting Feature	Center Gender
Rosenberger 05K432-S00S3	18 GHz	Stainless Steel	85 °C	-40 °C	0.42 dB	Beryllium Copper Brass	Gold	Polyphenylene Ether (PPE) Polytetrafluoroethylene (PTFE)	Straight	RPC-N SMA	Between Series	50 Ohms	500	Male Pin SMA Plug	Female Socket N Jack	Plug to Jack	Flange
Rosenberger 05K432-K00S3	18 GHz	Stainless Steel	85 °C	-40 °C	0.42 dB	Beryllium Copper Brass	Gold	Polyphenylene Ether (PPE) Polytetrafluoroethylene (PTFE)	Straight	RJC-N to SMA	Between Series	50 Ohms	500	Female Socket SMA Jack	Female Socket N Jack	Jack to Jack	Flange	Female to Female

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 307.09

General part information

Adapter Coaxial Connector N Jack, Female Socket To SMA Plug, Male Pin 50 Ohms
