RPF2AJD

Active

SQUARE D BY SCHNEIDER ELECTRIC

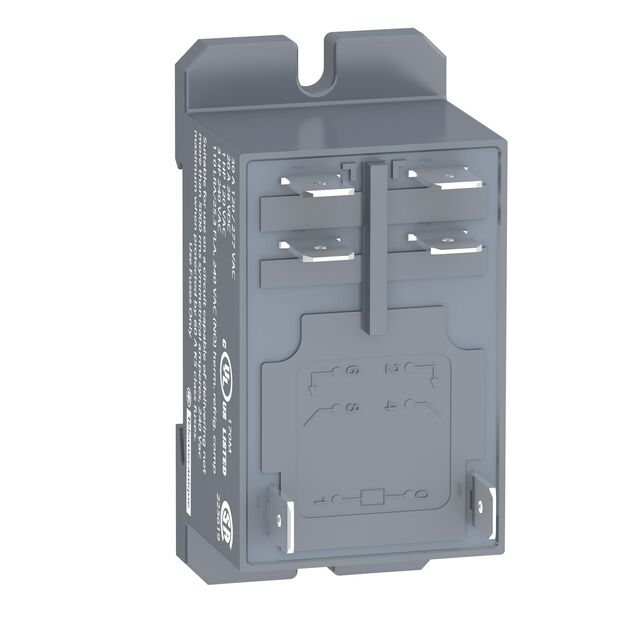

RELAY, DPST-NO, 12VDC, 30A, DIN RAIL

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

RELAY, DPST-NO, 12VDC, 30A, DIN RAIL

Technical Specifications

Parameters and characteristics for this part

Part	Coil Type	Operating Temperature [Min]	Operating Temperature [Max]	Switching Voltage	Must Operate Voltage	Release Time	Relay Type	Must Release Voltage	Coil Current	Load - Max Switching	Coil Resistance	Contact Material	Contact Form	Mounting Type	Termination Style	Approval Agency	Operate Time	Contact Rating (Current)	Coil Voltage
SQUARE D BY SCHNEIDER ELECTRIC RPF2AJD	Non Latching	-40 °C	55 °C	28 VDC 250 VAC	9.6 VDC	20 ms	General Purpose	1.2 VDC	139.5 mA	700 W 6250 VA	86 Ohms	Silver Tin Oxide (AgSnO)	DPST-NO (2 Form A)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	CE CSA GOST UL	25 ms	25 A	12 VDC
SQUARE D BY SCHNEIDER ELECTRIC RPF2AB7	Non Latching	-40 °C	55 °C	28 VDC 250 VAC		25 ms	General Purpose	3.6 VAC	141.2 mA	700 W 6250 VA	170 Ohms	Silver Tin Oxide (AgSnO)	DPST-NO (2 Form A)	Chassis Mount	Quick Connect - Multiple Sizes	CE CSA GOST UL	25 ms	25 A	24 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay DPST-NO (2 Form A) 12VDC Coil Chassis Mount
