RPF2AB7
ActiveSQUARE D BY SCHNEIDER ELECTRIC

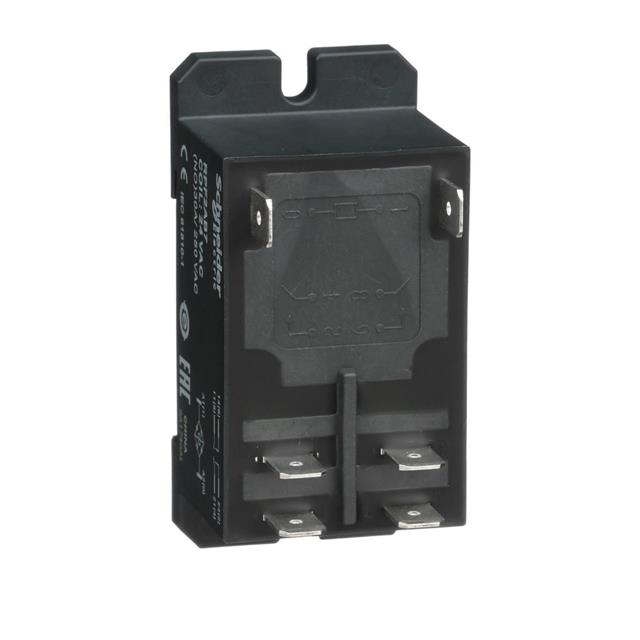

POWER RELAY, DPST, 24 VAC, 30 A, ZELIO RPF SERIES, DIN RAIL, PANEL
Deep-Dive with AI
Search across all available documentation for this part.
RPF2AB7
ActiveSQUARE D BY SCHNEIDER ELECTRIC
POWER RELAY, DPST, 24 VAC, 30 A, ZELIO RPF SERIES, DIN RAIL, PANEL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RPF2AB7 |
|---|---|
| Approval Agency | CSA, UL, CE, GOST |
| Coil Current | 141.2 mA |
| Coil Resistance | 170 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VAC |
| Contact Form | DPST-NO (2 Form A) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 25 A |
| Load - Max Switching | 700 W, 6250 VA |
| Mounting Type | Chassis Mount |
| Must Release Voltage | 3.6 VAC |
| Operate Time | 25 ms |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 25 ms |
| Switching Voltage | 250 VAC, 28 VDC |
| Termination Style | Quick Connect - Multiple Sizes |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
RPF2A Series
RPF panel mounting power relay with fast-on terminals has a coil control voltage of 24VAC and 2 normally open contacts with 30A current rating.
