211-60160
ObsoleteHELLERMANNTYTON

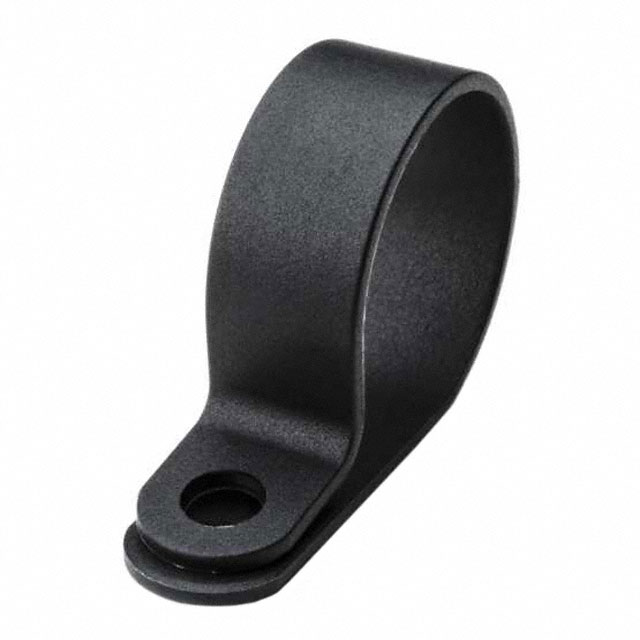

CBL CLAMP P-TYPE BLACK FASTENER
Deep-Dive with AI
Search across all available documentation for this part.
211-60160
ObsoleteHELLERMANNTYTON
CBL CLAMP P-TYPE BLACK FASTENER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 211-60160 |
|---|---|
| Bundle Center to Mounting Center [x] | 23 mm |
| Bundle Center to Mounting Center [x] | 0.906 in |
| Color | Black |
| Features | Heat Stabilized |
| Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-2 |
| Material Thickness | 0.059 in |
| Material Thickness | 1.5 mm |
| Mounting Type | Fastener |
| Opening Size [z] | 25.5 mm |
| Opening Size [z] | 1.003 in |
| Screw Size | 0.205 in |
| Screw Size | 5.2 mm |
| Type | Clamp, P-Type |
| Width | 12 mm |
| Width | 0.472 in |
211-60 Series
| Part | Panel Hole Size | Panel Hole Size | Color | Bundle Center to Mounting Center [x] | Bundle Center to Mounting Center [x] | Width [y] | Width [y] | Material Thickness | Material Thickness | Material Flammability Rating | Material | Mounting Type | Opening Size | Opening Size | Type | Bundle Center to Mounting Center | Bundle Center to Mounting Center | Opening Size [custom] | Opening Size [custom] | Screw Size | Screw Size | Features | Opening Size | Width | Width | Opening Size [z] | Opening Size [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HELLERMANNTYTON | 4.2 mm | 0.165 in | Natural | 10 mm | 0.394 in | 0.394 in | 10 mm | 1.2 mm | 0.047 in | UL94 V-2 | Polyamide (PA66) Nylon 6/6 | Fastener | 0.315 in | 8 mm | Clamp P-Type | ||||||||||||
HELLERMANNTYTON | 4.2 mm | 0.165 in | Natural | 0.394 in | 10 mm | 1.5 mm | 0.059 in | UL94 V-2 | Polyamide (PA66) Nylon 6/6 | Fastener | Clamp P-Type | 0.591 in | 15 mm | 14 mm | 0.551 in | ||||||||||||
HELLERMANNTYTON | Black | 13 mm | 0.512 in | 0.394 in | 10 mm | 1.2 mm | 0.047 in | UL94 V-2 | Polyamide (PA66) Nylon 6/6 | Fastener | Clamp P-Type | 11 mm | 0.433 in | 4.2 mm | 0.165 in | Heat Stabilized | |||||||||||
HELLERMANNTYTON | 4.2 mm | 0.165 in | Natural | 9.5 mm | 0.374 in | 0.394 in | 10 mm | 1 mm | 0.039 in | UL94 V-2 | Polyamide (PA66) Nylon 6/6 | Fastener | Clamp P-Type | ||||||||||||||
HELLERMANNTYTON | 4.2 mm | 0.165 in | Natural | 11 mm | 0.433 in | 0.394 in | 10 mm | 1.2 mm | 0.047 in | UL94 V-2 | Polyamide (PA66) Nylon 6/6 | Fastener | Clamp P-Type | ||||||||||||||
HELLERMANNTYTON | Black | 10 mm | 0.394 in | 0.394 in | 10 mm | 1.2 mm | 0.047 in | UL94 V-2 | Polyamide (PA66) Nylon 6/6 | Fastener | 0.315 in | 8 mm | Clamp P-Type | 4.2 mm | 0.165 in | Heat Stabilized | |||||||||||
HELLERMANNTYTON | Black | 10 mm | 0.394 in | 0.394 in | 10 mm | 1 mm | 0.039 in | UL94 V-2 | Polyamide (PA66) Nylon 6/6 | Fastener | 6.5 mm | Clamp P-Type | 4.2 mm | 0.165 in | Heat Stabilized | 0.256 in | |||||||||||
HELLERMANNTYTON | Black | 23 mm | 0.906 in | 1.5 mm | 0.059 in | UL94 V-2 | Polyamide (PA66) Nylon 6/6 | Fastener | Clamp P-Type | 5.2 mm | 0.205 in | Heat Stabilized | 12 mm | 0.472 in | 25.5 mm | 1.003 in | |||||||||||
HELLERMANNTYTON | Black | 14 mm | 0.551 " | 0.394 in | 10 mm | 1.2 mm | 0.047 in | UL94 V-2 | Polyamide (PA66) Nylon 6/6 | Fastener | Clamp P-Type | 4.2 mm | 0.165 in | Heat Stabilized | 12.5 mm | 0.492 in | |||||||||||
HELLERMANNTYTON | Black | 0.394 in | 10 mm | 1.5 mm | 0.059 in | UL94 V-2 | Polyamide (PA66) Nylon 6/6 | Fastener | Clamp P-Type | 0.591 in | 15 mm | 14 mm | 0.551 in | 4.2 mm | 0.165 in | Heat Stabilized |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
211-60 Series
Cable Clamp, P-Type Black Fastener 1.003" (25.50mm)
