211-60002

Active

HELLERMANNTYTON

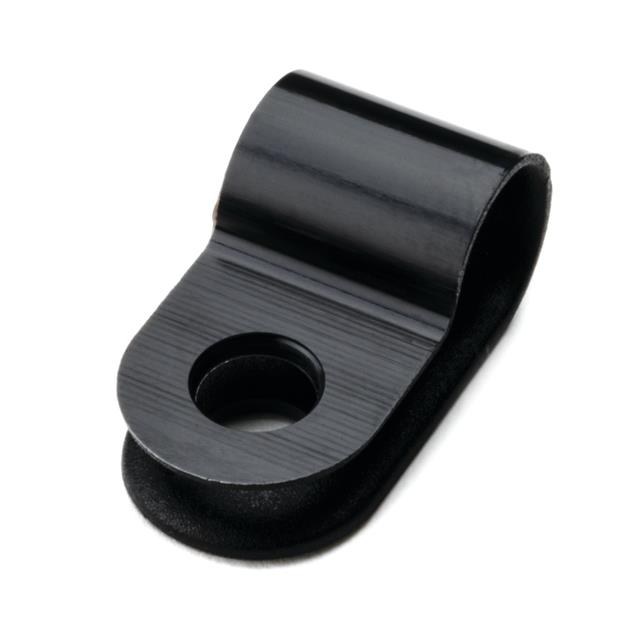

CBL CLAMP P-TYPE BLACK FASTENER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Materials Guide for Bundling & Securing

211-60002

Active

HELLERMANNTYTON

CBL CLAMP P-TYPE BLACK FASTENER

Deep-Dive with AI

DocumentsDatasheet Materials Guide for Bundling & Securing

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	211-60002

Bundle Center to Mounting Center [x]	10 mm
Bundle Center to Mounting Center [x]	0.394 in
Color	Black
Features	Heat Stabilized
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Material Thickness	1 mm
Material Thickness	0.039 in
Mounting Type	Fastener
Opening Size	0.256 in
Opening Size	6.5 mm
Screw Size	4.2 mm
Screw Size	0.165 in
Type	Clamp, P-Type
Width [y]	0.394 in
Width [y]	10 mm

211-60 Series

Part	Panel Hole Size	Panel Hole Size	Color	Bundle Center to Mounting Center [x]	Bundle Center to Mounting Center [x]	Width [y]	Width [y]	Material Thickness	Material Thickness	Material Flammability Rating	Material	Mounting Type	Opening Size	Opening Size	Type	Bundle Center to Mounting Center	Bundle Center to Mounting Center	Opening Size [custom]	Opening Size [custom]	Screw Size	Screw Size	Features	Opening Size	Width	Width	Opening Size [z]	Opening Size [z]
HELLERMANNTYTON 211-60049	4.2 mm	0.165 in	Natural	10 mm	0.394 in	0.394 in	10 mm	1.2 mm	0.047 in	UL94 V-2	Polyamide (PA66) Nylon 6/6	Fastener	0.315 in	8 mm	Clamp P-Type
HELLERMANNTYTON 211-60089	4.2 mm	0.165 in	Natural			0.394 in	10 mm	1.5 mm	0.059 in	UL94 V-2	Polyamide (PA66) Nylon 6/6	Fastener			Clamp P-Type	0.591 in	15 mm	14 mm	0.551 in
HELLERMANNTYTON 211-60005			Black	13 mm	0.512 in	0.394 in	10 mm	1.2 mm	0.047 in	UL94 V-2	Polyamide (PA66) Nylon 6/6	Fastener			Clamp P-Type			11 mm	0.433 in	4.2 mm	0.165 in	Heat Stabilized
HELLERMANNTYTON 211-60029	4.2 mm	0.165 in	Natural	9.5 mm	0.374 in	0.394 in	10 mm	1 mm	0.039 in	UL94 V-2	Polyamide (PA66) Nylon 6/6	Fastener			Clamp P-Type
HELLERMANNTYTON 211-60059	4.2 mm	0.165 in	Natural	11 mm	0.433 in	0.394 in	10 mm	1.2 mm	0.047 in	UL94 V-2	Polyamide (PA66) Nylon 6/6	Fastener			Clamp P-Type
HELLERMANNTYTON 211-60003			Black	10 mm	0.394 in	0.394 in	10 mm	1.2 mm	0.047 in	UL94 V-2	Polyamide (PA66) Nylon 6/6	Fastener	0.315 in	8 mm	Clamp P-Type					4.2 mm	0.165 in	Heat Stabilized
HELLERMANNTYTON 211-60002			Black	10 mm	0.394 in	0.394 in	10 mm	1 mm	0.039 in	UL94 V-2	Polyamide (PA66) Nylon 6/6	Fastener	6.5 mm		Clamp P-Type					4.2 mm	0.165 in	Heat Stabilized	0.256 in
HELLERMANNTYTON 211-60160			Black	23 mm	0.906 in			1.5 mm	0.059 in	UL94 V-2	Polyamide (PA66) Nylon 6/6	Fastener			Clamp P-Type					5.2 mm	0.205 in	Heat Stabilized		12 mm	0.472 in	25.5 mm	1.003 in
HELLERMANNTYTON 211-60078			Black	14 mm	0.551 "	0.394 in	10 mm	1.2 mm	0.047 in	UL94 V-2	Polyamide (PA66) Nylon 6/6	Fastener			Clamp P-Type					4.2 mm	0.165 in	Heat Stabilized				12.5 mm	0.492 in
HELLERMANNTYTON 211-60090			Black			0.394 in	10 mm	1.5 mm	0.059 in	UL94 V-2	Polyamide (PA66) Nylon 6/6	Fastener			Clamp P-Type	0.591 in	15 mm	14 mm	0.551 in	4.2 mm	0.165 in	Heat Stabilized

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.20
		10	$ 0.16
		25	$ 0.13
		50	$ 0.12
		100	$ 0.12
		300	$ 0.10
		500	$ 0.10
		1000	$ 0.08
		2500	$ 0.08
