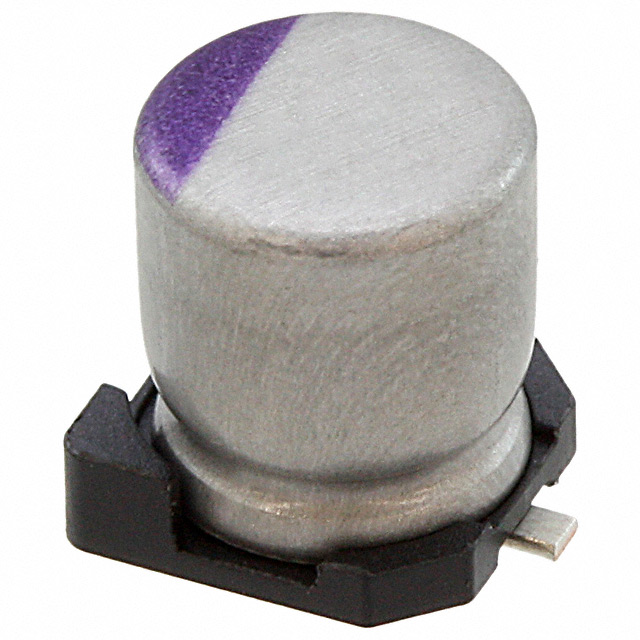

16SVPF82M

Active

Panasonic Industrial Automation Sales

CAP ALUM POLY 82UF 20% 16V SMD

Deep-Dive with AI

Search across all available documentation for this part.

16SVPF82M

Active

Panasonic Industrial Automation Sales

CAP ALUM POLY 82UF 20% 16V SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	16SVPF82M

Applications	General Purpose
Capacitance	82 µF
ESR (Equivalent Series Resistance)	27 mOhms
Height - Seated (Max) [Max]	0.236 in
Height - Seated (Max) [Max]	6 mm
Lifetime @ Temp.	5000 Hrs
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can - SMD
Ripple Current @ High Frequency	3 A
Ripple Current @ Low Frequency	150 mA
Size / Dimension [diameter]	5 mm
Size / Dimension [diameter]	0.197 "
Surface Mount Land Size [x]	0.209 in
Surface Mount Land Size [x]	5.3 mm
Surface Mount Land Size [y]	5.3 mm
Surface Mount Land Size [y]	0.209 in
Tolerance	20 %
Type	Polymer
Voltage - Rated	16 V

16SVPF Series

Part	Applications	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Capacitance	Package / Case	Mounting Type	Ripple Current @ Low Frequency	Ripple Current @ High Frequency	Operating Temperature [Max]	Operating Temperature [Min]	ESR (Equivalent Series Resistance)	Lifetime @ Temp.	Voltage - Rated	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Industrial Automation Sales 16SVPF1000MX	General Purpose	10.3 mm	0.406 in	10.3 mm	0.406 "	1000 µF	Radial Can - SMD	Surface Mount	215 mA	4.3 A	105 ░C	-55 °C	16 mOhm	5000 Hrs	16 V	Polymer	0.413 in	10.5 mm	10 mm	0.394 in	20 %
Panasonic Industrial Automation Sales 16SVPF82M	General Purpose	5.3 mm	0.209 in	5.3 mm	0.209 in	82 µF	Radial Can - SMD	Surface Mount	150 mA	3 A	105 ░C	-55 °C	27 mOhms	5000 Hrs	16 V	Polymer	0.236 in	6 mm	5 mm	0.197 "	20 %
Panasonic Industrial Automation Sales 16SVPF270M	General Purpose	8.3 mm	0.327 "	8.3 mm	0.327 in	270 µF	Radial Can - SMD	Surface Mount	165 mA	3.3 A	105 ░C	-55 °C	22 mOhms	5000 Hrs	16 V	Polymer	0.276 "	7 mm	8 mm	0.315 "	20 %
Panasonic Industrial Automation Sales 16SVPF560MX	General Purpose	8.3 mm	0.327 "	8.3 mm	0.327 in	560 µF	Radial Can - SMD	Surface Mount		3.9 A	105 ░C	-55 °C		5000 Hrs	16 V	Polymer	0.413 in	10.5 mm	8 mm	0.315 "	20 %
Panasonic Industrial Automation Sales 16SVPF560M	General Purpose	8.3 mm	0.327 "	8.3 mm	0.327 in	560 µF	Radial Can - SMD	Surface Mount	247.5 mA	4.95 A	105 ░C	-55 °C	14 mOhms	5000 Hrs	16 V	Polymer			8 mm	0.315 "	20 %	12 mm	0.472 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.28
		10	$ 0.80
		50	$ 0.60
		100	$ 0.54
		500	$ 0.44
	Digi-Reel®	1	$ 1.28
		10	$ 0.80
		50	$ 0.60
		100	$ 0.54
		500	$ 0.44
	Tape & Reel (TR)	1500	$ 0.39
		3000	$ 0.37
		4500	$ 0.36
		7500	$ 0.34
		10500	$ 0.34
		15000	$ 0.33

Description

General part information

16SVPF Series

82 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 27mOhm 5000 Hrs @ 105°C
