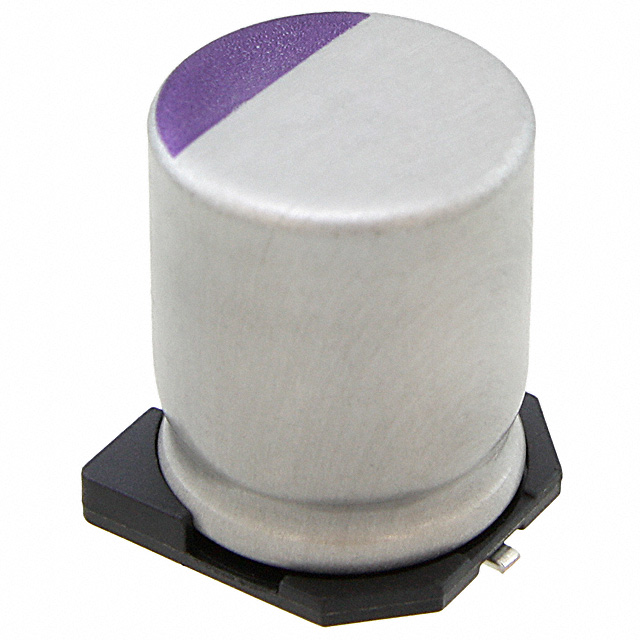

16SVPF1000MX
ActivePanasonic Industrial Automation Sales
ALUMINUM ELECTROLYTIC CAPACITOR, ALUMINUM (SOLID POLYMER),
Deep-Dive with AI
Search across all available documentation for this part.
16SVPF1000MX
ActivePanasonic Industrial Automation Sales
ALUMINUM ELECTROLYTIC CAPACITOR, ALUMINUM (SOLID POLYMER),
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 16SVPF1000MX |
|---|---|
| Applications | General Purpose |
| Capacitance | 1000 µF |
| ESR (Equivalent Series Resistance) | 16 mOhm |
| Height - Seated (Max) [Max] | 0.413 in |
| Height - Seated (Max) [Max] | 10.5 mm |
| Lifetime @ Temp. | 5000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial, Can - SMD |
| Ripple Current @ High Frequency | 4.3 A |
| Ripple Current @ Low Frequency | 215 mA |
| Size / Dimension [diameter] | 10 mm |
| Size / Dimension [diameter] | 0.394 in |
| Surface Mount Land Size [x] | 0.406 in |
| Surface Mount Land Size [x] | 10.3 mm |
| Surface Mount Land Size [y] | 10.3 mm |
| Surface Mount Land Size [y] | 0.406 " |
| Tolerance | 20 % |
| Type | Polymer |
| Voltage - Rated | 16 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.04 | |
| 10 | $ 1.57 | |||
| 50 | $ 1.44 | |||
| 100 | $ 1.19 | |||
| Digi-Reel® | 1 | $ 2.04 | ||
| 10 | $ 1.57 | |||
| 50 | $ 1.44 | |||
| 100 | $ 1.19 | |||
| Tape & Reel (TR) | 500 | $ 0.98 | ||
| 1000 | $ 0.85 | |||
| 2500 | $ 0.82 | |||
| 5000 | $ 0.79 | |||
| 12500 | $ 0.76 | |||
Description
General part information
16SVPF Series
1000 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 16mOhm 5000 Hrs @ 105°C
