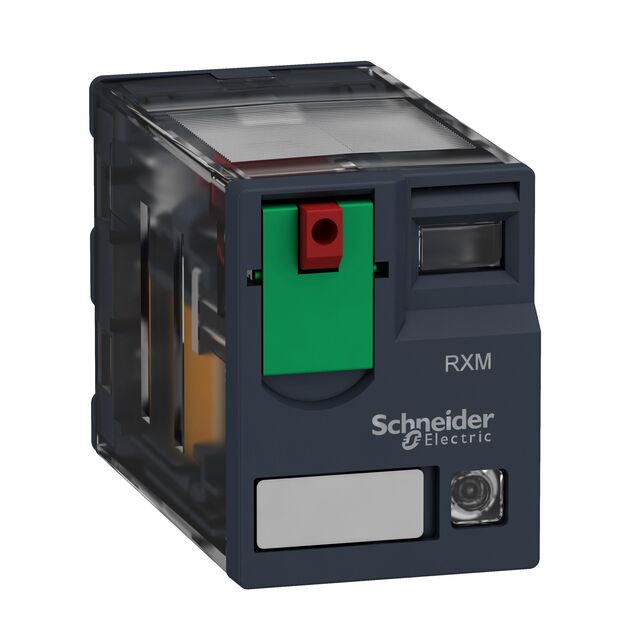

RXM4GB2E7

Active

SQUARE D BY SCHNEIDER ELECTRIC

PLUG-IN RELAY 250V 3A RXM +OPTIO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +3

RXM4GB2E7

Active

SQUARE D BY SCHNEIDER ELECTRIC

PLUG-IN RELAY 250V 3A RXM +OPTIO

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RXM4GB2E7

Approval Agency	CE, IECEE, Lloyd's, GOST, UL, CSA
Coil Current	67.6 mA
Coil Resistance	710 Ohms
Coil Type	Non Latching
Coil Voltage	48 VAC/DC
Contact Form	4PDT (4 Form C)
Contact Material	Silver (Ag), Gold (Au)
Contact Rating (Current)	3 A
Features	Test Button, Lighted Indicator
Load - Max Switching	750 VA, 84 W
Mounting Type	Socketable
Must Operate Voltage	38.4 VAC
Must Release Voltage	7.2 VAC
Operate Time	20 ms
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	20 ms
Switching Voltage	250 VAC, 28 VDC
Termination Style	Plug In

RXM4G Series

Part	Approval Agency	Switching Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Coil Current	Termination Style	Coil Type	Load - Max Switching	Must Release Voltage	Must Operate Voltage	Release Time	Relay Type	Features	Contact Material	Operate Time	Contact Form	Coil Voltage	Coil Resistance	Contact Rating (Current)	Mounting Type
SQUARE D BY SCHNEIDER ELECTRIC RXM4GB1E7	CE CSA GOST IECEE Lloyd's UL	28 VDC 250 VAC	-40 °C	55 °C	67.6 mA	Plug In	Non Latching	84 W 750 VA	7.2 VAC	38.4 VAC	20 ms	General Purpose	Test Button	Gold (Au) Silver (Ag)	20 ms	4PDT (4 Form C)	48 VAC/DC	710 Ohms	3 A	Socketable
SQUARE D BY SCHNEIDER ELECTRIC RXM4GB2U7	CE CSA GOST IECEE Lloyd's UL	28 VDC 250 VAC	-40 °C	55 °C	13.5 mA	Plug In	Non Latching	84 W 750 VA	36 VAC	192 VAC	20 ms	General Purpose	Lighted Indicator Test Button	Gold (Au) Silver (Ag)	20 ms	4PDT (4 Form C)	240 VAC	17.72 kOhms	3 A	Socketable
SQUARE D BY SCHNEIDER ELECTRIC RXM4GB1JD	CE CSA GOST IECEE Lloyd's UL	28 VDC 250 VAC	-40 °C	55 °C	75 mA	Plug In	Non Latching	84 W 750 VA	1.2 VDC	9.6 VDC	20 ms	General Purpose	Test Button	Gold (Au) Silver (Ag)	20 ms	4PDT (4 Form C)	12 VDC	160 Ohms	3 A	Socketable
SQUARE D BY SCHNEIDER ELECTRIC RXM4GB2E7	CE CSA GOST IECEE Lloyd's UL	28 VDC 250 VAC	-40 °C	55 °C	67.6 mA	Plug In	Non Latching	84 W 750 VA	7.2 VAC	38.4 VAC	20 ms	General Purpose	Lighted Indicator Test Button	Gold (Au) Silver (Ag)	20 ms	4PDT (4 Form C)	48 VAC/DC	710 Ohms	3 A	Socketable
SQUARE D BY SCHNEIDER ELECTRIC RXM4GB1P7	CE CSA GOST IECEE Lloyd's UL	28 VDC 250 VAC	-40 °C	55 °C	15.3 mA	Plug In	Non Latching	84 W 750 VA	34.5 VAC	184 VAC	20 ms	General Purpose	Test Button	Gold (Au) Silver (Ag)	20 ms	4PDT (4 Form C)	230 VAC	15 kOhms	3 A	Socketable
SQUARE D BY SCHNEIDER ELECTRIC RXM4GB3FD	CE CSA GOST IECEE Lloyd's UL	28 VDC 250 VAC	-40 °C	55 °C	8.2 mA	Plug In	Non Latching	84 W 750 VA	11 VDC	88 VDC	20 ms	General Purpose	Lighted Indicator	Gold (Au) Silver (Ag)	20 ms	4PDT (4 Form C)	110 VDC	13.44 kOhms	3 A	Socketable
SQUARE D BY SCHNEIDER ELECTRIC RXM4GB1B7	CE CSA GOST IECEE Lloyd's UL	28 VDC 250 VAC	-40 °C	55 °C	133.3 mA	Plug In	Non Latching	84 W 750 VA	3.6 VAC	19.2 VAC	20 ms	General Purpose	Test Button	Gold (Au) Silver (Ag)	20 ms	4PDT (4 Form C)	24 VAC	180 Ohms	3 A	Socketable
SQUARE D BY SCHNEIDER ELECTRIC RXM4GB2BD	CE CSA GOST IECEE Lloyd's UL	28 VDC 250 VAC	-40 °C	55 °C	36.9 mA	Plug In	Non Latching	84 W 750 VA	2.4 VDC	19.2 VDC	20 ms	General Purpose	Lighted Indicator Test Button	Gold (Au) Silver (Ag)	20 ms	4PDT (4 Form C)	24 VDC	650 Ohms	3 A	Socketable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 18.50
Newark	Each	1	$ 24.27
		10	$ 23.23
		25	$ 20.87
		50	$ 19.05
		100	$ 17.61
		250	$ 16.95

Description

General part information

RXM4G Series

General Purpose Relay 4PDT (4 Form C) 48VAC Coil Socketable
