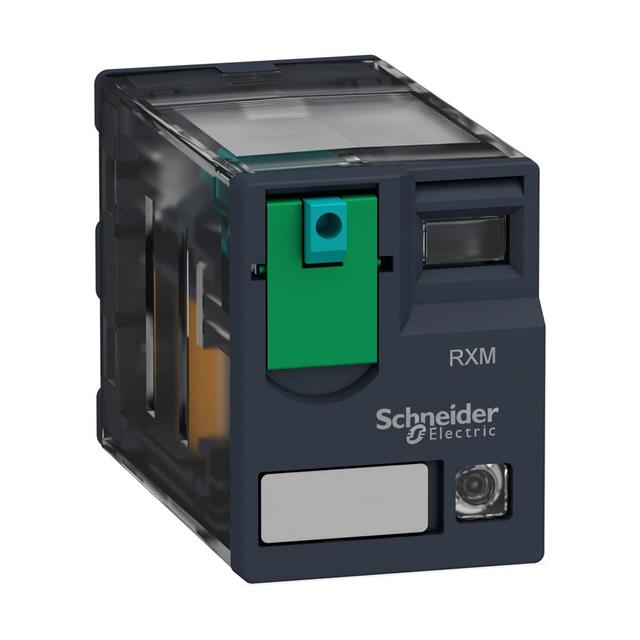

RXM4GB2BD
ActiveSQUARE D BY SCHNEIDER ELECTRIC
HARMONY, MINIATURE PLUG-IN RELAY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RXM4GB2BD |
|---|---|
| Approval Agency | CE, IECEE, Lloyd's, GOST, UL, CSA |
| Coil Current | 36.9 mA |
| Coil Resistance | 650 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | 4PDT (4 Form C) |
| Contact Material | Silver (Ag), Gold (Au) |
| Contact Rating (Current) | 3 A |
| Features | Test Button, Lighted Indicator |
| Load - Max Switching | 750 VA, 84 W |
| Mounting Type | Socketable |
| Must Operate Voltage | 19.2 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 20 ms |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 20 ms |
| Switching Voltage | 250 VAC, 28 VDC |
| Termination Style | Plug In |
RXM4G Series
| Part | Approval Agency | Switching Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Coil Current | Termination Style | Coil Type | Load - Max Switching | Must Release Voltage | Must Operate Voltage | Release Time | Relay Type | Features | Contact Material | Operate Time | Contact Form | Coil Voltage | Coil Resistance | Contact Rating (Current) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SQUARE D BY SCHNEIDER ELECTRIC | CE CSA GOST IECEE Lloyd's UL | 28 VDC 250 VAC | -40 °C | 55 °C | 67.6 mA | Plug In | Non Latching | 84 W 750 VA | 7.2 VAC | 38.4 VAC | 20 ms | General Purpose | Test Button | Gold (Au) Silver (Ag) | 20 ms | 4PDT (4 Form C) | 48 VAC/DC | 710 Ohms | 3 A | Socketable |
SQUARE D BY SCHNEIDER ELECTRIC | CE CSA GOST IECEE Lloyd's UL | 28 VDC 250 VAC | -40 °C | 55 °C | 13.5 mA | Plug In | Non Latching | 84 W 750 VA | 36 VAC | 192 VAC | 20 ms | General Purpose | Lighted Indicator Test Button | Gold (Au) Silver (Ag) | 20 ms | 4PDT (4 Form C) | 240 VAC | 17.72 kOhms | 3 A | Socketable |
SQUARE D BY SCHNEIDER ELECTRIC | CE CSA GOST IECEE Lloyd's UL | 28 VDC 250 VAC | -40 °C | 55 °C | 75 mA | Plug In | Non Latching | 84 W 750 VA | 1.2 VDC | 9.6 VDC | 20 ms | General Purpose | Test Button | Gold (Au) Silver (Ag) | 20 ms | 4PDT (4 Form C) | 12 VDC | 160 Ohms | 3 A | Socketable |
SQUARE D BY SCHNEIDER ELECTRIC | CE CSA GOST IECEE Lloyd's UL | 28 VDC 250 VAC | -40 °C | 55 °C | 67.6 mA | Plug In | Non Latching | 84 W 750 VA | 7.2 VAC | 38.4 VAC | 20 ms | General Purpose | Lighted Indicator Test Button | Gold (Au) Silver (Ag) | 20 ms | 4PDT (4 Form C) | 48 VAC/DC | 710 Ohms | 3 A | Socketable |
SQUARE D BY SCHNEIDER ELECTRIC | CE CSA GOST IECEE Lloyd's UL | 28 VDC 250 VAC | -40 °C | 55 °C | 15.3 mA | Plug In | Non Latching | 84 W 750 VA | 34.5 VAC | 184 VAC | 20 ms | General Purpose | Test Button | Gold (Au) Silver (Ag) | 20 ms | 4PDT (4 Form C) | 230 VAC | 15 kOhms | 3 A | Socketable |
SQUARE D BY SCHNEIDER ELECTRIC | CE CSA GOST IECEE Lloyd's UL | 28 VDC 250 VAC | -40 °C | 55 °C | 8.2 mA | Plug In | Non Latching | 84 W 750 VA | 11 VDC | 88 VDC | 20 ms | General Purpose | Lighted Indicator | Gold (Au) Silver (Ag) | 20 ms | 4PDT (4 Form C) | 110 VDC | 13.44 kOhms | 3 A | Socketable |
SQUARE D BY SCHNEIDER ELECTRIC | CE CSA GOST IECEE Lloyd's UL | 28 VDC 250 VAC | -40 °C | 55 °C | 133.3 mA | Plug In | Non Latching | 84 W 750 VA | 3.6 VAC | 19.2 VAC | 20 ms | General Purpose | Test Button | Gold (Au) Silver (Ag) | 20 ms | 4PDT (4 Form C) | 24 VAC | 180 Ohms | 3 A | Socketable |
SQUARE D BY SCHNEIDER ELECTRIC | CE CSA GOST IECEE Lloyd's UL | 28 VDC 250 VAC | -40 °C | 55 °C | 36.9 mA | Plug In | Non Latching | 84 W 750 VA | 2.4 VDC | 19.2 VDC | 20 ms | General Purpose | Lighted Indicator Test Button | Gold (Au) Silver (Ag) | 20 ms | 4PDT (4 Form C) | 24 VDC | 650 Ohms | 3 A | Socketable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 13.20 | |
| 10 | $ 11.73 | |||
| 25 | $ 11.14 | |||
| 50 | $ 10.56 | |||
| 100 | $ 9.97 | |||
| 250 | $ 9.09 | |||
| 500 | $ 8.51 | |||
| 1000 | $ 8.30 | |||
Description
General part information
RXM4G Series
General Purpose Relay 4PDT (4 Form C) 24VDC Coil Socketable
