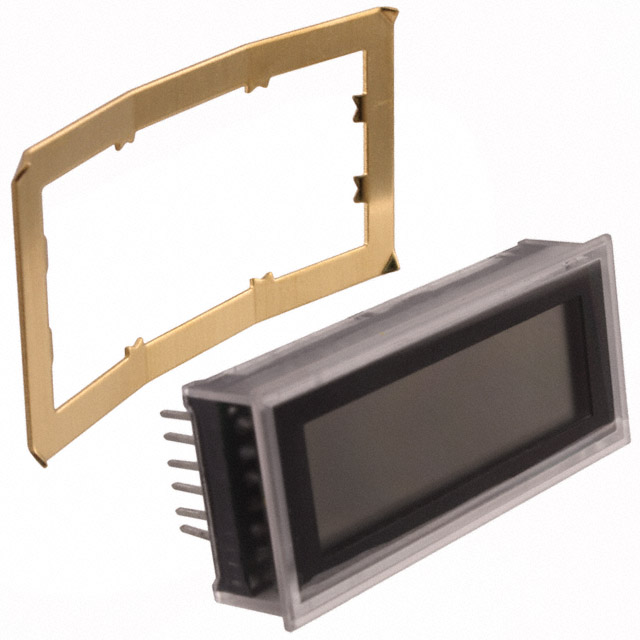

DMS-30LCD-1-5-C - DMS-30LCD-1-5-C

DMS-30LCD-1-5-C

Active
Murata Power Solutions Inc.

VOLTMETER 2VDC LCD PANEL MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetTechnical Data Sheet EN+1
DMS-30LCD-1-5-C - DMS-30LCD-1-5-C

DMS-30LCD-1-5-C

Active
Murata Power Solutions Inc.

VOLTMETER 2VDC LCD PANEL MOUNT

Deep-Dive with AI

DocumentsDatasheetTechnical Data Sheet EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationDMS-30LCD-1-5-C
Display Characters - Height [z]0.401 "
Display Characters - Height [z]10.2 mm
Display TypeLCD - Black Characters
Measuring Range [Max]2 V
Measuring Range [Min]-2 V
Measuring TypeVoltage
Number of Characters Per Row3.5
Operating Temperature [Max]60 °C
Operating Temperature [Min]0 °C
Output TypeReference
Panel Cutout Dimensions [x]53.8 mm
Panel Cutout Dimensions [y]22.3 mm
Termination StylePC Pin
TypeVoltmeter
Voltage - Supply5 V
Weight20.87 g
Weight0.046 lb

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBox 1$ 55.44
5$ 50.82
10$ 49.09
25$ 47.36
50$ 44.47
100$ 40.96
NewarkEach 10$ 51.05
25$ 49.25
50$ 46.25
100$ 42.60

Description

General part information

DMS-30LCD Series

Voltmeter LCD - Black Characters Display Panel Mount
