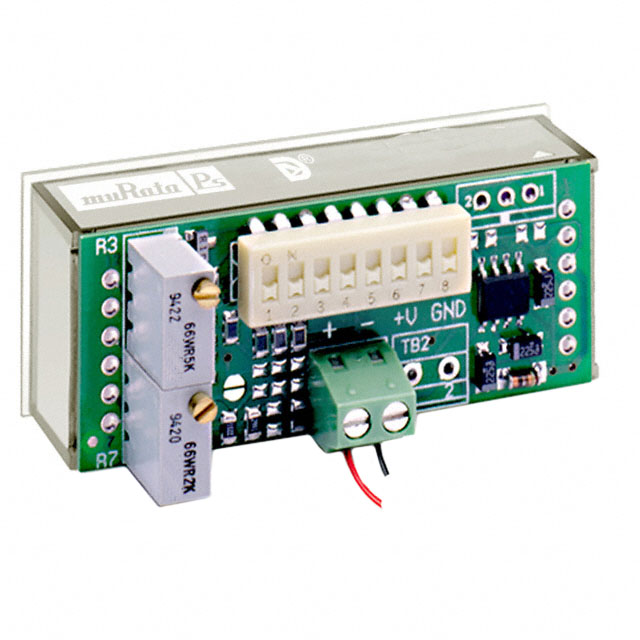

DMS-30LCDA-4/20I-C

Obsolete

Murata Power Solutions Inc.

PROCESS METER 4-20MA LCD PNL MT

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

PROCESS METER 4-20MA LCD PNL MT

Technical Specifications

Parameters and characteristics for this part

Part	Number of Characters Per Row	Measuring Type	Type	Measuring Range [Max]	Measuring Range [Min]	Display Characters - Height [z]	Display Characters - Height [z]	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Output Type	Voltage - Supply	Weight	Weight	Display Type	Voltage - Supply	Features
Murata Power Solutions Inc. DMS-30LCD-1-5-C	3.5	Voltage	Voltmeter	2 V	-2 V	0.401 "	10.2 mm	PC Pin	60 °C	0 °C	22.3 mm	53.8 mm	Reference	5 V	20.87 g	0.046 lb	LCD - Black Characters
Murata Power Solutions Inc. DMS-30LCDA-4/20I-C	3.5	Process	Process Meter			0.401 "	10.2 mm	Screw Terminal	60 °C	0 °C	22.3 mm	53.8 mm			20.87 g	0.046 lb	LCD - Black Characters	Loop Power	Bezel Sold Separately

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Process Meter LCD - Black Characters Display Panel Mount
