RSB2A080M7
ActiveSQUARE D BY SCHNEIDER ELECTRIC

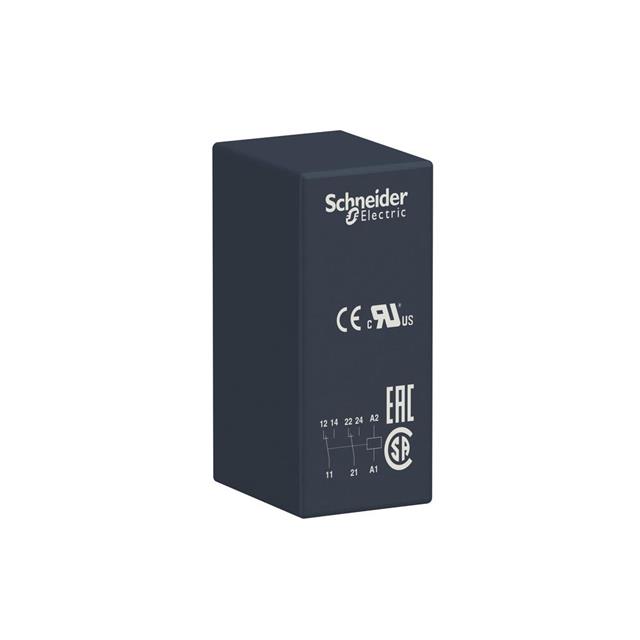

POWER RELAY, DPDT, 220 VAC, 8 A, RSB SERIES, SOCKET, AC
Deep-Dive with AI
Search across all available documentation for this part.
RSB2A080M7
ActiveSQUARE D BY SCHNEIDER ELECTRIC
POWER RELAY, DPDT, 220 VAC, 8 A, RSB SERIES, SOCKET, AC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RSB2A080M7 |
|---|---|
| Approval Agency | CSA, UL, EAC |
| Coil Current | 6.7 mA |
| Coil Resistance | 33 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 220 VAC/DC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 8 A |
| Load - Max Switching | 2240 W, 2000 VA |
| Mounting Type | Socketable |
| Must Operate Voltage | 176 VAC |
| Must Release Voltage | 33 VAC |
| Operate Time | 20 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 20 ms |
| Switching Voltage | 250 VAC, 300 VDC |
| Termination Style | Plug In |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
RSB2A Series
General Purpose Relay DPDT (2 Form C) 220VAC Coil Socketable
