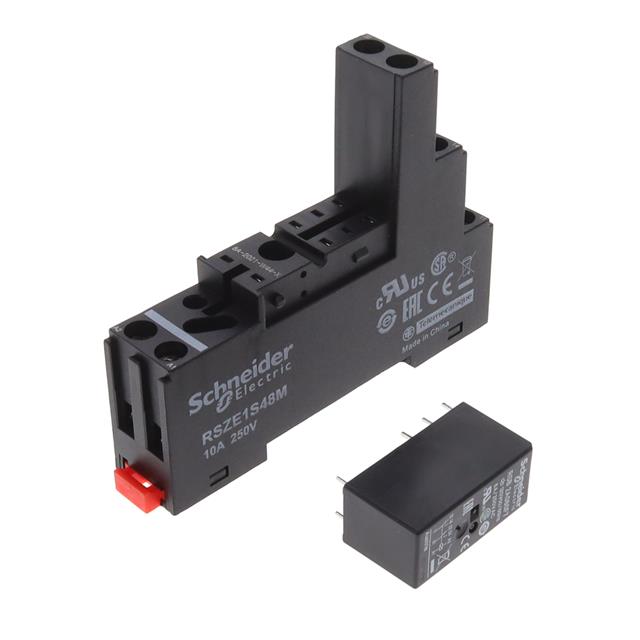

RSB2A080F7S

Obsolete

SQUARE D BY SCHNEIDER ELECTRIC

HARMONY, INTERFACE PLUG-IN RELAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RSB2A080F7S

Obsolete

SQUARE D BY SCHNEIDER ELECTRIC

HARMONY, INTERFACE PLUG-IN RELAY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RSB2A080F7S

Approval Agency	CSA, UL, EAC
Coil Current	11.8 mA
Coil Resistance	10.2 kOhms
Coil Type	Non Latching
Coil Voltage	120 VAC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	8 A
Load - Max Switching	2400 W, 3200 VA
Mounting Type	Chassis Mount
Must Operate Voltage	96 VAC
Must Release Voltage	18 VAC
Operate Time	12 ms
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	10 ms
Switching Voltage	400 VAC, 300 VDC
Termination Style	Plug In

RSB2A Series

Part	Coil Voltage	Load - Max Switching	Contact Form	Switching Voltage	Termination Style	Contact Rating (Current)	Operate Time	Approval Agency	Contact Material	Coil Resistance	Operating Temperature [Min]	Operating Temperature [Max]	Release Time	Mounting Type	Relay Type	Coil Current	Coil Type	Must Operate Voltage	Must Release Voltage	Load - Max Switching [Max]	Features	Switching Voltage [Max]
SQUARE D BY SCHNEIDER ELECTRIC RSB2A080U7	240 VAC	2000 VA 2240 W	DPDT (2 Form C)	250 VAC 300 VDC	Plug In	8 A	20 ms	CSA EAC UL	Silver Nickel (AgNi)	33 kOhms	-40 °C	70 °C	20 ms	Socketable	General Purpose	7.3 mA	Non Latching	192 VAC	36 VAC
SQUARE D BY SCHNEIDER ELECTRIC RSB2A080M7	220 VAC/DC	2000 VA 2240 W	DPDT (2 Form C)	250 VAC 300 VDC	Plug In	8 A	20 ms	CSA EAC UL	Silver Nickel (AgNi)	33 kOhms	-40 °C	70 °C	20 ms	Socketable	General Purpose	6.7 mA	Non Latching	176 VAC	33 VAC
SQUARE D BY SCHNEIDER ELECTRIC RSB2A080F7S	120 VAC	2400 W 3200 VA	DPDT (2 Form C)	300 VDC 400 VAC	Plug In	8 A	12 ms	CSA EAC UL	Silver Nickel (AgNi)	10.2 kOhms	-40 °C	70 °C	10 ms	Chassis Mount	General Purpose	11.8 mA	Non Latching	96 VAC	18 VAC
SQUARE D BY SCHNEIDER ELECTRIC RSB2A080P7	230 VAC	2000 VA 2240 W	DPDT (2 Form C)	250 VAC 300 VDC	Plug In	8 A	20 ms	CSA EAC UL	Silver Nickel (AgNi)	33 kOhms	-40 °C	70 °C	20 ms	Socketable	General Purpose	7 mA	Non Latching	184 VAC	34.5 VAC
SQUARE D BY SCHNEIDER ELECTRIC RSB2A080BDS	24 VDC	2400 W 3200 VA	DPDT (2 Form C)	300 VDC 400 VAC	Plug In	8 A	9 ms	CSA EAC UL	Silver Nickel (AgNi)	1440 Ohms	-40 °C	70 °C	4 ms	Socketable	General Purpose	16.7 mA	Non Latching		2.4 VDC
SQUARE D BY SCHNEIDER ELECTRIC RSB2A080B7S	24 VAC	2400 W 3200 VA	DPDT (2 Form C)	300 VDC 400 VAC	Screw Terminal	8 A	12 ms	CSA EAC UL	Silver Nickel (AgNi)	400 Ohms	-40 °C	70 °C	10 ms	DIN Rail	General Purpose	60 mA	Non Latching	19.2 VAC	3.6 VAC
SQUARE D BY SCHNEIDER ELECTRIC RSB2A080BDPV	24 VDC		DPDT (2 Form C)		Screw Terminal	8 A	20 ms	CSA EAC UL	Silver Nickel (AgNi)	1440 Ohms	-40 °C	85 °C	20 ms	DIN Rail	General Purpose	16.7 mA	Non Latching		2.4 VDC	2400 VA	Lighted Indicator	300 VDC
SQUARE D BY SCHNEIDER ELECTRIC RSB2A080P7S	230 VAC	2400 W 3200 VA	DPDT (2 Form C)	300 VDC 400 VAC	Screw Terminal	8 A	12 ms	CSA EAC UL	Silver Nickel (AgNi)	38.5 kOhms	-40 °C	70 °C	10 ms	DIN Rail	General Purpose	6 mA	Non Latching	184 VAC	34.5 VAC
SQUARE D BY SCHNEIDER ELECTRIC RSB2A080BD	24 VDC	224 W 2000 VA	DPDT (2 Form C)	28 VDC 250 VAC	Plug In	8 A	20 ms	CSA EAC UL	Silver Nickel (AgNi)	1440 Ohms	-40 °C	85 °C	20 ms	Socketable	General Purpose	16.7 mA	Non Latching		2.4 VDC
SQUARE D BY SCHNEIDER ELECTRIC RSB2A080FD	110 VDC	2000 VA 2240 W	DPDT (2 Form C)	250 VAC 300 VDC	Plug In	8 A	20 ms	CSA EAC UL	Silver Nickel (AgNi)	30.25 kOhms	-40 °C	85 °C	20 ms	Socketable	General Purpose	3.6 mA	Non Latching	88 VDC	11 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 19.38

Description

General part information

RSB2A Series

General Purpose Relay DPDT (2 Form C) 120VAC Coil Chassis Mount
