MUSBR-3593-M0

Active

Amphenol ICC (Commercial Products)

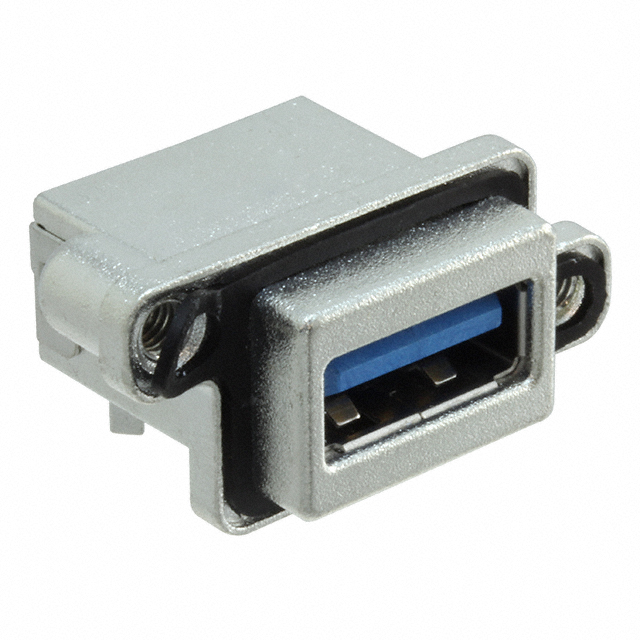

CONN RCPT USB3.0 TYPEA 9POS PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MUSBR-3593-M0

Active

Amphenol ICC (Commercial Products)

CONN RCPT USB3.0 TYPEA 9POS PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MUSBR-3593-M0

Connector Type	USB-A (USB TYPE-A)
Contact Finish	Gold
Current Rating (Amps)	1.8 A, 0.25 A
Features	Board Guide
Gender	Receptacle
Ingress Protection	IP67 - Dust Tight, Waterproof
Insulation Color	Blue
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange, Vertical
Mounting Type	Through Hole, Panel Mount
Number of Contacts	9
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell/Shielding Material	Stainless, Steel
Shielding	Shielded
Termination	Solder

MUSBR Series

Part	Mounting Feature	Number of Contacts	Termination	Shell/Shielding Material	Ingress Protection	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Current Rating (Amps)	Features	Contact Finish	Number of Ports	Shielding	Mounting Type	Connector Type	Material Flammability Rating	Mating Cycles	Specifications	Number of Contacts [custom]	Convert From (Adapter End)	Convert To (Adapter End)
Amphenol ICC (Commercial Products) MUSBR-3593-M0	Flange Vertical	9	Solder	Stainless Steel	IP67 - Dust Tight Waterproof	Receptacle	-40 °C	105 ░C	Blue	0.25 A 1.8 A	Board Guide	Gold	1	Shielded	Panel Mount Through Hole	USB-A (USB TYPE-A)	UL94 V-0
Amphenol ICC (Commercial Products) MUSBRA111M0	Flange Horizontal		Solder	Stainless Steel	IP67 - Dust Tight Waterproof	Receptacle	-40 °C	105 ░C	Black	1.5 A	Board Guide	Gold	1	Shielded	Panel Mount Right Angle Through Hole	USB-A (USB TYPE-A)	UL94 V-0	1500	USB 2.0	4
Amphenol ICC (Commercial Products) MUSBR-4593-M0	Flange Vertical		Solder	Stainless Steel	IP67 - Dust Tight Waterproof	Receptacle	-40 °C	105 ░C	Blue	0.25 A 1.8 A	Board Guide	Gold	2	Shielded	Panel Mount Through Hole	Stacked USB-A (USB TYPE-A)	UL94 V-0
Amphenol ICC (Commercial Products) MUSBRA311M5															Board Mounted						USB-A (USB TYPE-A) Receptacle	Receptacle USB-A (USB TYPE-A)
Amphenol ICC (Commercial Products) MUSBRA511M0	Flange Vertical		Solder	Stainless Steel	IP67 - Dust Tight Waterproof	Receptacle	-40 °C	105 ░C	Black	1.5 A		Gold	1	Shielded	Panel Mount Through Hole	USB-A (USB TYPE-A)	UL94 V-0	1500	USB 2.0	4
Amphenol ICC (Commercial Products) MUSBRM1C130	Flange Horizontal	24	Solder	Stainless Steel	IP67 - Dust Tight Waterproof	Receptacle	-40 °C	105 ░C	Black	0.25 A 1.25 A 5 A		Gold	1	Shielded	Panel Mount Right Angle Through Hole	USB-C (USB TYPE-C)	UL94 V-0
Amphenol ICC (Commercial Products) MUSBR-A511-302	Flange Vertical		Solder	Stainless Steel	IP67 - Dust Tight Waterproof	Receptacle	-40 °C	105 ░C	Black	1.5 A		Gold	1	Shielded	Panel Mount Through Hole	USB-A (USB TYPE-A)	UL94 V-0	1500	USB 2.0	4
Amphenol ICC (Commercial Products) MUSBRA111M5	Flange Horizontal		Solder	Stainless Steel	IP67 - Dust Tight Waterproof	Receptacle	-40 °C	105 ░C	Black	1.5 A	Board Guide Cover	Gold	1	Shielded	Panel Mount Right Angle Through Hole	USB-A (USB TYPE-A)	UL94 V-0	1500	USB 2.0	4
Amphenol ICC (Commercial Products) MUSBRA11145	Flange Horizontal		Solder	Stainless Steel	IP67 - Dust Tight Waterproof	Receptacle	-40 °C	105 ░C	Black	1.5 A	Board Guide Cover	Gold	1	Shielded	Panel Mount Right Angle Through Hole	USB-A (USB TYPE-A)	UL94 V-0	1500	USB 2.0	4
Amphenol ICC (Commercial Products) MUSBRM5C130	Flange Vertical	24	Solder	Stainless Steel	IP67 - Dust Tight Waterproof	Receptacle	-40 °C	105 ░C	Black	0.25 A 1.25 A 5 A		Gold	1	Shielded	Panel Mount Through Hole	USB-C (USB TYPE-C)	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.05
		10	$ 14.22
		25	$ 13.68
		50	$ 13.13
		100	$ 12.40
		250	$ 11.31
		500	$ 10.58
		1000	$ 9.70

Description

General part information

MUSBR Series

USB-A (USB TYPE-A) USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 9 Position Panel Mount, Through Hole
