MUSBRM1C130

Active

Amphenol ICC (Commercial Products)

CONN RCPT TYPEC 24POS PCB R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet MUSBR-M Type C Series Spec

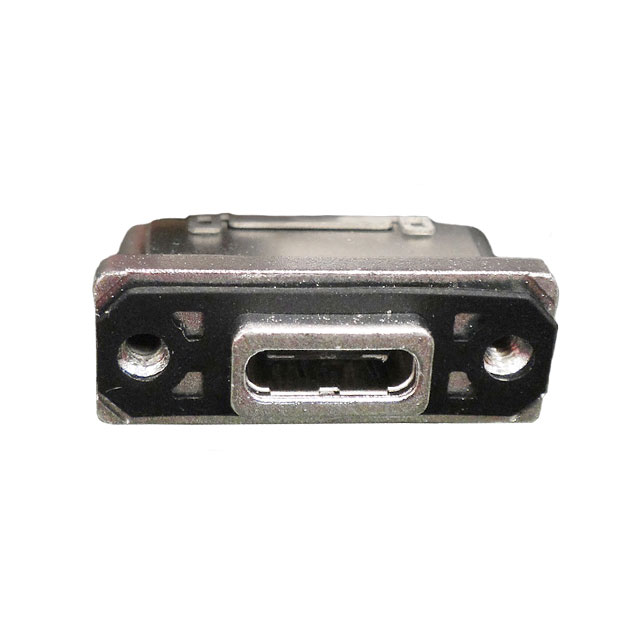

MUSBRM1C130

Active

Amphenol ICC (Commercial Products)

CONN RCPT TYPEC 24POS PCB R/A

Deep-Dive with AI

DocumentsDatasheet MUSBR-M Type C Series Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MUSBRM1C130

Connector Type	USB-C (USB TYPE-C)
Contact Finish	Gold
Current Rating (Amps)	0.25 A, 1.25 A, 5 A
Gender	Receptacle
Ingress Protection	IP67 - Dust Tight, Waterproof
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange, Horizontal
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Contacts	24
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shell/Shielding Material	Stainless, Steel
Shielding	Shielded
Termination	Solder

MUSBR Series

Part	Mounting Feature	Number of Contacts	Termination	Shell/Shielding Material	Ingress Protection	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Current Rating (Amps)	Features	Contact Finish	Number of Ports	Shielding	Mounting Type	Connector Type	Material Flammability Rating	Mating Cycles	Specifications	Number of Contacts [custom]	Convert From (Adapter End)	Convert To (Adapter End)
Amphenol ICC (Commercial Products) MUSBR-3593-M0	Flange Vertical	9	Solder	Stainless Steel	IP67 - Dust Tight Waterproof	Receptacle	-40 °C	105 ░C	Blue	0.25 A 1.8 A	Board Guide	Gold	1	Shielded	Panel Mount Through Hole	USB-A (USB TYPE-A)	UL94 V-0
Amphenol ICC (Commercial Products) MUSBRA111M0	Flange Horizontal		Solder	Stainless Steel	IP67 - Dust Tight Waterproof	Receptacle	-40 °C	105 ░C	Black	1.5 A	Board Guide	Gold	1	Shielded	Panel Mount Right Angle Through Hole	USB-A (USB TYPE-A)	UL94 V-0	1500	USB 2.0	4
Amphenol ICC (Commercial Products) MUSBR-4593-M0	Flange Vertical		Solder	Stainless Steel	IP67 - Dust Tight Waterproof	Receptacle	-40 °C	105 ░C	Blue	0.25 A 1.8 A	Board Guide	Gold	2	Shielded	Panel Mount Through Hole	Stacked USB-A (USB TYPE-A)	UL94 V-0
Amphenol ICC (Commercial Products) MUSBRA311M5															Board Mounted						USB-A (USB TYPE-A) Receptacle	Receptacle USB-A (USB TYPE-A)
Amphenol ICC (Commercial Products) MUSBRA511M0	Flange Vertical		Solder	Stainless Steel	IP67 - Dust Tight Waterproof	Receptacle	-40 °C	105 ░C	Black	1.5 A		Gold	1	Shielded	Panel Mount Through Hole	USB-A (USB TYPE-A)	UL94 V-0	1500	USB 2.0	4
Amphenol ICC (Commercial Products) MUSBRM1C130	Flange Horizontal	24	Solder	Stainless Steel	IP67 - Dust Tight Waterproof	Receptacle	-40 °C	105 ░C	Black	0.25 A 1.25 A 5 A		Gold	1	Shielded	Panel Mount Right Angle Through Hole	USB-C (USB TYPE-C)	UL94 V-0
Amphenol ICC (Commercial Products) MUSBR-A511-302	Flange Vertical		Solder	Stainless Steel	IP67 - Dust Tight Waterproof	Receptacle	-40 °C	105 ░C	Black	1.5 A		Gold	1	Shielded	Panel Mount Through Hole	USB-A (USB TYPE-A)	UL94 V-0	1500	USB 2.0	4
Amphenol ICC (Commercial Products) MUSBRA111M5	Flange Horizontal		Solder	Stainless Steel	IP67 - Dust Tight Waterproof	Receptacle	-40 °C	105 ░C	Black	1.5 A	Board Guide Cover	Gold	1	Shielded	Panel Mount Right Angle Through Hole	USB-A (USB TYPE-A)	UL94 V-0	1500	USB 2.0	4
Amphenol ICC (Commercial Products) MUSBRA11145	Flange Horizontal		Solder	Stainless Steel	IP67 - Dust Tight Waterproof	Receptacle	-40 °C	105 ░C	Black	1.5 A	Board Guide Cover	Gold	1	Shielded	Panel Mount Right Angle Through Hole	USB-A (USB TYPE-A)	UL94 V-0	1500	USB 2.0	4
Amphenol ICC (Commercial Products) MUSBRM5C130	Flange Vertical	24	Solder	Stainless Steel	IP67 - Dust Tight Waterproof	Receptacle	-40 °C	105 ░C	Black	0.25 A 1.25 A 5 A		Gold	1	Shielded	Panel Mount Through Hole	USB-C (USB TYPE-C)	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 20.87
		10	$ 16.07
		25	$ 14.55
		40	$ 13.84
		80	$ 12.87
		230	$ 11.57
		440	$ 10.87
		945	$ 10.17

Description

General part information

MUSBR Series

USB-C (USB TYPE-C) Receptacle Connector 24 Position Panel Mount, Through Hole, Right Angle
