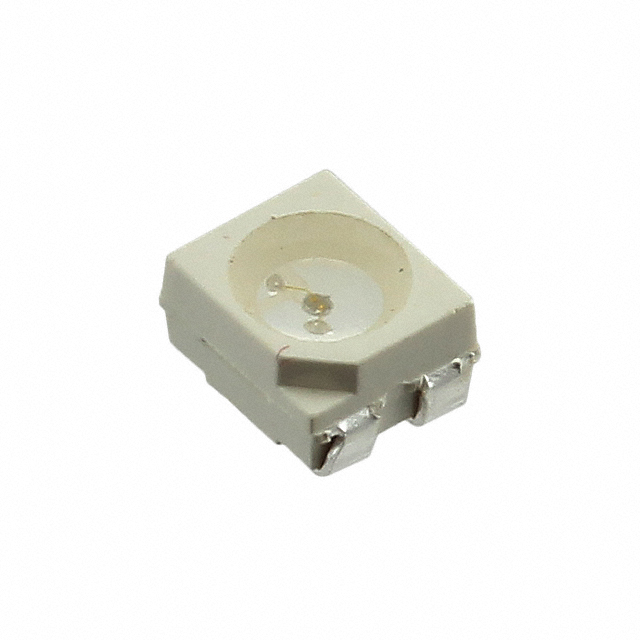

AA3527AVBS/D-30MAV

Active

Kingbright

LED UNI-COLOR BLUE 465NM 4-PIN PLCC T/R

Search across all available documentation for this part.

Active

Kingbright

LED UNI-COLOR BLUE 465NM 4-PIN PLCC T/R

Technical Specifications

Parameters and characteristics for this part

Part	Lens Transparency	Viewing Angle	Wavelength - Peak	Supplier Device Package	Color	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Configuration	Millicandela Rating	Lens Size [diameter]	Height (Max) [Max]	Lens Color	Mounting Type	Package / Case	Current - Test	Height (Max) [Max] [z]
Kingbright AA3527AZGS-30MAV	Clear	120 °	515 nm	4-SMD	Green	3.3 V	525 nm	Standard	750 mcd	2.4 mm	1.9 mm	Colorless	Surface Mount	4-SMD J-Lead	30 mA
Kingbright AA3527ASYSK/J3-50MAV	Clear	120 °	590 nm	4-SMD	Yellow	2.3 V	590 nm	Independent	1500 mcd	2.4 mm		Colorless	Surface Mount	4-SMD J-Lead	50 mA	2.15 mm
Kingbright AA3527AZGSK-30MAV	Clear	120 °	515 nm	4-SMD	Green	3.5 V	525 nm	Independent	700 mcd	2.4 mm		Colorless	Surface Mount	4-SMD J-Lead	30 mA	2.15 mm
Kingbright AA3527ASES-50MAV	Clear	120 °	610 nm	SMD		2.1 V	601 nm	Standard	500 mcd	2.4 mm		Colorless	Surface Mount	4-SMD J-Lead	50 mA	2.15 mm
Kingbright AA3527AVBS/D-30MAV	Clear	120 °	465 nm	4-SMD	Blue	3.5 V	470 nm	Standard	600 mcd	2.4 mm	1.9 mm	Colorless	Surface Mount	4-SMD J-Lead	30 mA
Kingbright AA3527ASYS/J3-50MAV	Clear	120 °	590 nm	4-SMD	Yellow	2.3 V	590 nm	Standard	1600 mcd	2.4 mm	1.9 mm	Colorless	Surface Mount	4-SMD J-Lead	50 mA
Kingbright AA3527ASESK-50MAV	Clear	120 °	610 nm	4-SMD		2.25 V	601 nm	Independent	900 mcd	2.4 mm		Colorless	Surface Mount	4-SMD J-Lead	50 mA	2.15 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Blue 470nm LED Indication - Discrete 3.5V 4-SMD, J-Lead
