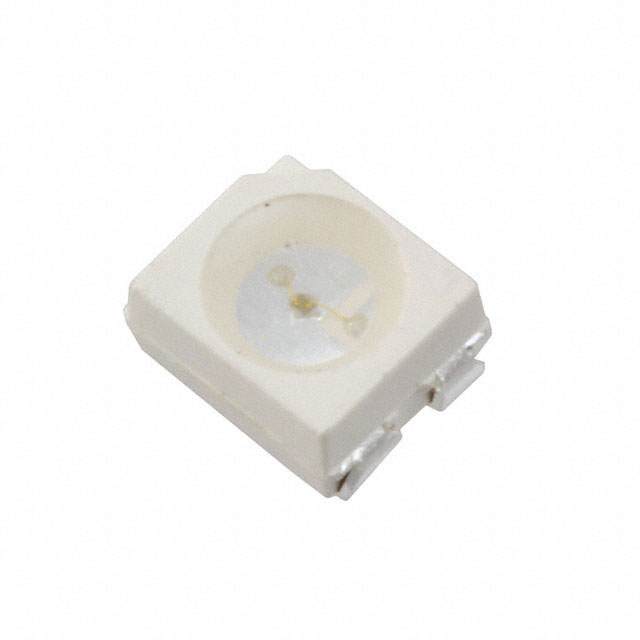

AA3527ASYS/J3-50MAV

Active

Kingbright

LED YELLOW CLEAR 4SMD

Search across all available documentation for this part.

Active

Kingbright

LED YELLOW CLEAR 4SMD

Technical Specifications

Parameters and characteristics for this part

Part	Lens Transparency	Viewing Angle	Wavelength - Peak	Supplier Device Package	Color	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Configuration	Millicandela Rating	Lens Size [diameter]	Height (Max) [Max]	Lens Color	Mounting Type	Package / Case	Current - Test	Height (Max) [Max] [z]
Kingbright AA3527AZGS-30MAV	Clear	120 °	515 nm	4-SMD	Green	3.3 V	525 nm	Standard	750 mcd	2.4 mm	1.9 mm	Colorless	Surface Mount	4-SMD J-Lead	30 mA
Kingbright AA3527ASYSK/J3-50MAV	Clear	120 °	590 nm	4-SMD	Yellow	2.3 V	590 nm	Independent	1500 mcd	2.4 mm		Colorless	Surface Mount	4-SMD J-Lead	50 mA	2.15 mm
Kingbright AA3527AZGSK-30MAV	Clear	120 °	515 nm	4-SMD	Green	3.5 V	525 nm	Independent	700 mcd	2.4 mm		Colorless	Surface Mount	4-SMD J-Lead	30 mA	2.15 mm
Kingbright AA3527ASES-50MAV	Clear	120 °	610 nm	SMD		2.1 V	601 nm	Standard	500 mcd	2.4 mm		Colorless	Surface Mount	4-SMD J-Lead	50 mA	2.15 mm
Kingbright AA3527AVBS/D-30MAV	Clear	120 °	465 nm	4-SMD	Blue	3.5 V	470 nm	Standard	600 mcd	2.4 mm	1.9 mm	Colorless	Surface Mount	4-SMD J-Lead	30 mA
Kingbright AA3527ASYS/J3-50MAV	Clear	120 °	590 nm	4-SMD	Yellow	2.3 V	590 nm	Standard	1600 mcd	2.4 mm	1.9 mm	Colorless	Surface Mount	4-SMD J-Lead	50 mA
Kingbright AA3527ASESK-50MAV	Clear	120 °	610 nm	4-SMD		2.25 V	601 nm	Independent	900 mcd	2.4 mm		Colorless	Surface Mount	4-SMD J-Lead	50 mA	2.15 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Yellow 590nm LED Indication - Discrete 2.3V 4-SMD, J-Lead
