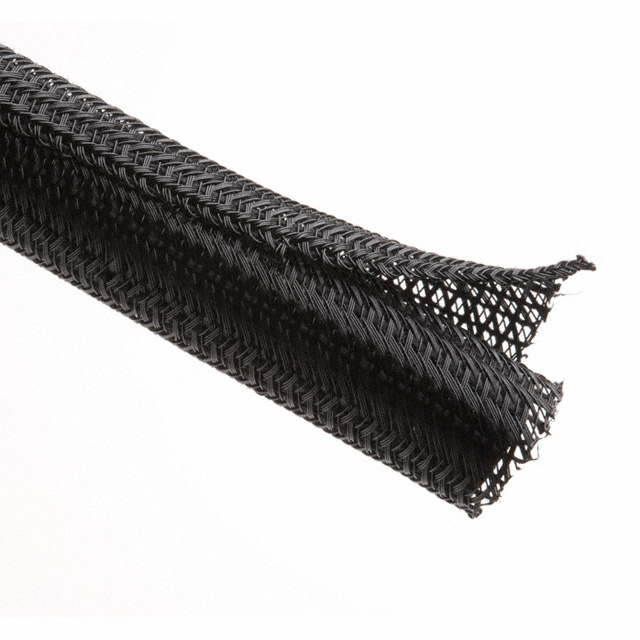

F6N0.13BK25

Active

Techflex

SELF WRAP 1/8" X 25' BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

F6N0.13BK25

Active

Techflex

SELF WRAP 1/8" X 25' BLACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	F6N0.13BK25

Abrasion Protection	Abrasion and Cut Resistant
Color	Black
Diameter - Inside, Non-Expanded [diameter]	0.125 in
Diameter - Inside, Non-Expanded [diameter]	3.18 mm
Features	Clean Cut, Chemical Resistant
Length [x]	25 ft
Length [x]	7.62 m
Material	Polyethylene Terephthalate (PET), Halogen Free
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-70 °C
Type	Self Wrap
Type Attributes	Split Flexible Tube
Wall Thickness	0.024 in
Wall Thickness	0.61 mm

F6N0 Series

Part	Type Attributes	Abrasion Protection	Color	Operating Temperature [Max]	Operating Temperature [Min]	Material	Type	Features	Wall Thickness	Wall Thickness	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Material Flammability Rating	Length [x]	Length [x]	Wall Thickness [custom]	Wall Thickness [custom]	Length	Length
Techflex F6N0.13BK25	Split Flexible Tube	Abrasion and Cut Resistant	Black	125 °C	-70 °C	Polyethylene Terephthalate (PET) Halogen Free	Self Wrap	Chemical Resistant Clean Cut	0.024 in	0.61 mm	0.125 in	3.18 mm	UL94 V-0	25 ft	7.62 m
Techflex F6N0.25OR200	Split Flexible Tube	Abrasion and Cut Resistant		125 °C	-70 °C	Polyethylene Terephthalate (PET) Halogen Free	Self Wrap	Chemical Resistant Clean Cut					UL94 V-0			0.025 in	0.64 mm	60.96 m	200 '
Techflex F6N0.38BK75	Split Flexible Tube	Abrasion and Cut Resistant	Black	125 °C	-70 °C	Polyethylene Terephthalate (PET) Halogen Free	Self Wrap	Chemical Resistant Clean Cut			0.375 in	9.53 mm	UL94 V-0	75 ft	22.86 m	0.025 in	0.64 mm
Techflex F6N0.25OR100	Split Flexible Tube	Abrasion and Cut Resistant		125 °C	-70 °C	Polyethylene Terephthalate (PET) Halogen Free	Self Wrap	Chemical Resistant Clean Cut					UL94 V-0			0.025 in	0.64 mm	30.48 m	100 ft
Techflex F6N0.38BK25	Split Flexible Tube	Abrasion and Cut Resistant	Black	125 °C	-70 °C	Polyethylene Terephthalate (PET) Halogen Free	Self Wrap	Chemical Resistant Clean Cut			0.375 in	9.53 mm	UL94 V-0	25 ft	7.62 m	0.025 in	0.64 mm
Techflex F6N0.75PG25	Split Flexible Tube	Abrasion and Cut Resistant	Gray	125 °C	-70 °C	Polyethylene Terephthalate (PET) Halogen Free	Self Wrap	Chemical Resistant Clean Cut			0.75 in	19.05 mm	UL94 V-0	25 ft	7.62 m	0.025 in	0.64 mm
Techflex F6N0.13PG25	Split Flexible Tube	Abrasion and Cut Resistant	Gray	125 °C	-70 °C	Polyethylene Terephthalate (PET) Halogen Free	Self Wrap	Chemical Resistant Clean Cut	0.024 in	0.61 mm	0.125 in	3.18 mm	UL94 V-0	25 ft	7.62 m
Techflex F6N0.75PG100	Split Flexible Tube	Abrasion and Cut Resistant	Gray	125 °C	-70 °C	Polyethylene Terephthalate (PET) Halogen Free	Self Wrap	Chemical Resistant Clean Cut			0.75 in	19.05 mm	UL94 V-0			0.025 in	0.64 mm	30.48 m	100 ft
Techflex F6N0.25OR25	Split Flexible Tube	Abrasion and Cut Resistant		125 °C	-70 °C	Polyethylene Terephthalate (PET) Halogen Free	Self Wrap	Chemical Resistant Clean Cut					UL94 V-0	25 ft	7.62 m	0.025 in	0.64 mm
Techflex F6N0.13CW25	Split Flexible Tube	Abrasion and Cut Resistant	Clear White	125 °C	-70 °C	Polyethylene Terephthalate (PET) Halogen Free	Self Wrap	Chemical Resistant Clean Cut	0.024 in	0.61 mm	0.125 in	3.18 mm	UL94 V-0	25 ft	7.62 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.71
		5	$ 13.09
		10	$ 9.97
		25	$ 9.35
		50	$ 8.72
		100	$ 8.29

Description

General part information

F6N0 Series

Self Wrap X 25.00' (7.62m) Black

Documents

Technical documentation and resources
