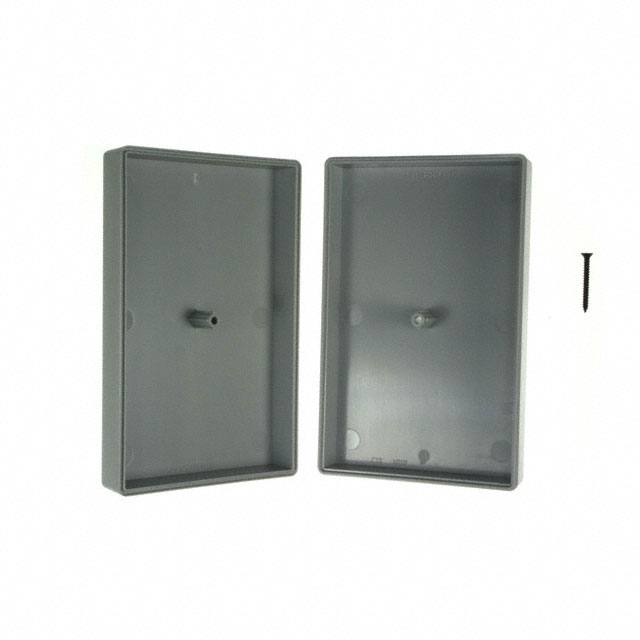

C12,GY

Active

Serpac

BOX ABS GRAY 3.75"L X 2.4"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS GRAY 3.75"L X 2.4"W

Technical Specifications

Parameters and characteristics for this part

Specification	C12,GY

Area (L x W) [custom]	9 in²
Area (L x W) [custom]	58.1 cm²
Color	Gray
Container Type	Box
Design	Split Sides, Hand Held
Height [z]	1 in
Height [z]	25.4 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	95.25 mm
Size / Dimension [x]	3.75 in
Size / Dimension [y]	60.96 mm
Size / Dimension [y]	2.4 "
Thickness	2.54 mm
Thickness	0.1 in
Weight	34.93 g
Weight	0.077 lb

Part	Height [z]	Height [z]	Design	Material Flammability Rating	Container Type	Color	Area (L x W) [custom]	Area (L x W) [custom]	Thickness	Thickness	Ratings	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Weight	Weight	Material
Serpac C12,GY	1 in	25.4 mm	Hand Held Split Sides	UL94 HB	Box	Gray	9 in²	58.1 cm²	2.54 mm	0.1 in	IP40	95.25 mm	60.96 mm	3.75 in	2.4 "	34.93 g	0.077 lb	Plastic ABS
Serpac C12,AL	1 in	25.4 mm	Hand Held Split Sides	UL94 HB	Box	Almond	9 in²	58.1 cm²	2.54 mm	0.1 in	IP40	95.25 mm	60.96 mm	3.75 in	2.4 "	34.93 g	0.077 lb	Plastic ABS

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Gray Hand Held, Split Sides 3.750" L x 2.400" W (95.25mm x 60.96mm) X 1.000" (25.40mm)

Technical documentation and resources

No documents available
