C12,AL

Active

Serpac

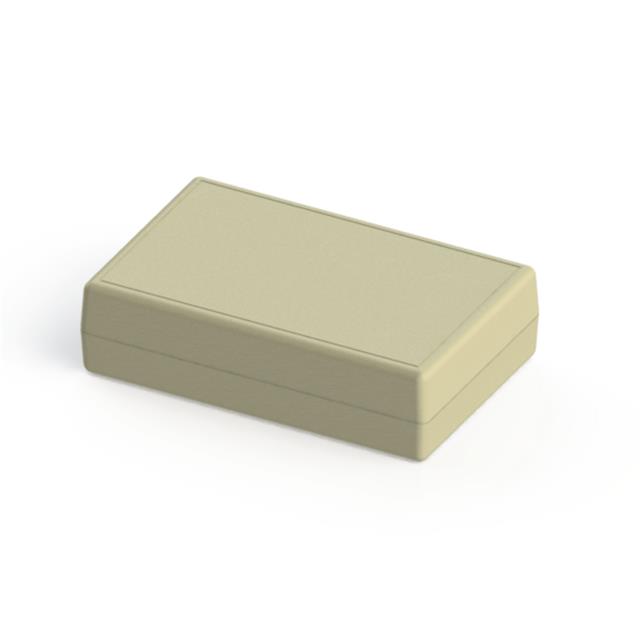

BOX ABS ALMOND 3.75"L X 2.4"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS ALMOND 3.75"L X 2.4"W

Technical Specifications

Parameters and characteristics for this part

Specification	C12,AL

Area (L x W) [custom]	9 in²
Area (L x W) [custom]	58.1 cm²
Color	Almond
Container Type	Box
Design	Split Sides, Hand Held
Height [z]	1 in
Height [z]	25.4 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	95.25 mm
Size / Dimension [x]	3.75 in
Size / Dimension [y]	60.96 mm
Size / Dimension [y]	2.4 "
Thickness	2.54 mm
Thickness	0.1 in
Weight	34.93 g
Weight	0.077 lb

Part	Height [z]	Height [z]	Design	Material Flammability Rating	Container Type	Color	Area (L x W) [custom]	Area (L x W) [custom]	Thickness	Thickness	Ratings	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Weight	Weight	Material
Serpac C12,GY	1 in	25.4 mm	Hand Held Split Sides	UL94 HB	Box	Gray	9 in²	58.1 cm²	2.54 mm	0.1 in	IP40	95.25 mm	60.96 mm	3.75 in	2.4 "	34.93 g	0.077 lb	Plastic ABS
Serpac C12,AL	1 in	25.4 mm	Hand Held Split Sides	UL94 HB	Box	Almond	9 in²	58.1 cm²	2.54 mm	0.1 in	IP40	95.25 mm	60.96 mm	3.75 in	2.4 "	34.93 g	0.077 lb	Plastic ABS

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.90

General part information

Box Plastic, ABS Almond Hand Held, Split Sides 3.750" L x 2.400" W (95.25mm x 60.96mm) X 1.000" (25.40mm)
