51-141.025D

Obsolete

EAO

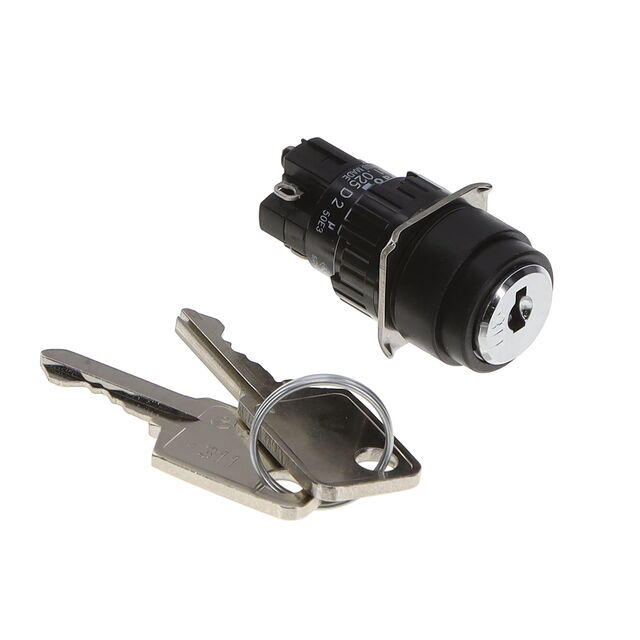

SWITCH KEYLOCK 2POS DPST 5A 250V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 51 Datasheet

51-141.025D

Obsolete

EAO

SWITCH KEYLOCK 2POS DPST 5A 250V

Deep-Dive with AI

DocumentsDatasheet 51 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	51-141.025D

Actuator Type	Flat Key
Angle of Throw	42 °
Circuit	DPST-NO/NC
Contact Timing	Not Specified
Current Rating (Amps)	5 A
Depth Behind Flange	26.5 mm
Features	IP65
Key Removable Positions	1 only
Number of Positions	2
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	Off-Mom, On-Mom
Termination Style	Solder Lug
Voltage Rating - AC	250 V

51-141 Series

Rotary Switches Rotary Switch, Standard, 1/8" shaft, 22.5°, 1 deck, 2 pole/deck, 5 positions/pole, non-shorting

Part	Shape	Illumination	Switch Type	Mounting Type	Size [x]	Size [y]	Color	Ingress Protection	Actuator Type	Type	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Switch Function	Actuator Marking	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Circuit	Contact Timing	Number of Positions	Depth Behind Flange	Features	Electrical Life	Termination Style	Termination Style	Termination Style	Angle of Throw	Key Removable Positions	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Accessory Type	Voltage Rating - DC
EAO 51-951.3	Square	Illuminated	Pushbutton	Snap Fit	15.3 mm	15.3 mm
EAO 51-951.5	Square	Illuminated	Pushbutton	Snap Fit	15.3 mm	15.3 mm	Green
EAO 51-151.012				Panel Mount Front				IP65 - Dust Tight Water Resistant	Square Button (Not Included)	Standard	250 V	55 °C	-25 °C	1000000 Cycles	Off-Mom On-Mom	No Marking	16 mm	5 A	DPST-NO/NC
EAO 51-141.022K									Flat Key		250 V	55 °C	-25 °C		Off-Mom On-Mom		16 mm	5 A	DPST-NO/NC	Not Specified	2	35.5 mm	IP65	50000 Cycles	0.11 in	Quick Connect Solder	2.8 mm	42 °	1 only
EAO 51-151.022				Panel Mount Front				IP65 - Dust Tight Water Resistant	Square Button (Not Included)	Standard	250 V	55 °C	-25 °C	2000000 Cycles	Off-Mom On-Mom	No Marking	16 mm	5 A	DPST-NO/NC						0.11 in	Quick Connect Solder	2.8 mm
EAO 51-151.022F				Panel Mount Front				IP65 - Dust Tight Water Resistant	Square Button (Not Included)	Standard	250 V	55 °C	-25 °C	2000000 Cycles	Off-Mom On-Mom	No Marking		5 A	DPST-NO/NC						0.11 in	Quick Connect Solder	2.8 mm			21.2 mm	21.2 mm
EAO 51-925																																Cover
EAO 51-141.025D									Flat Key		250 V	55 °C	-25 °C		Off-Mom On-Mom		16 mm	5 A	DPST-NO/NC	Not Specified	2	26.5 mm	IP65			Solder Lug		42 °	1 only
EAO 51-457.036D									Flat Key		42 V	55 °C	-25 °C		Off-Mom On-Mom		16 mm	100 mA	DPST-NO	Not Specified	2	35.5 mm	IP65			PC Pin Solder Lug		42 °	1 only				42 V
EAO 51-451.036F				Panel Mount Front				IP65 - Dust Tight Water Resistant	Square Button (Not Included)	Standard	42 V	55 °C	-25 °C	5000000 Cycles	Off-Mom	No Marking		100 mA	DPST-NO							PC Pin Solder Lug				21.2 mm	21.2 mm		42 V
