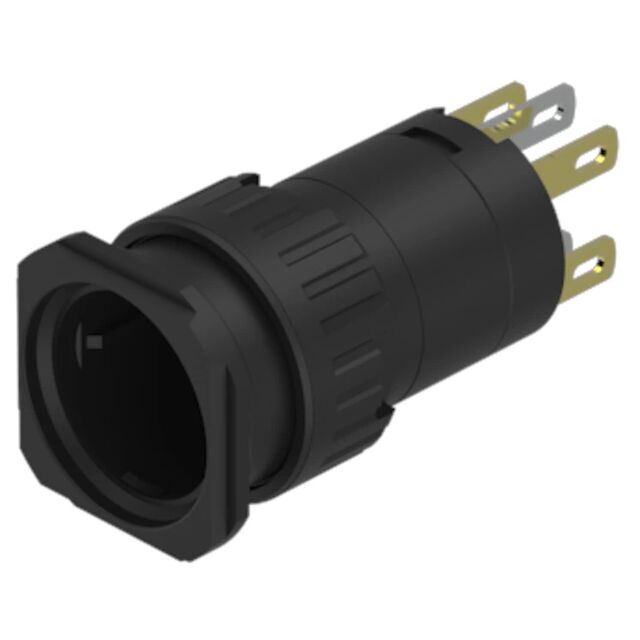

51-151.022F

Active

EAO

ILLUMINATED PUSHBUTTON FLUSH MOUNTING NEUTRAL MOM SA 1NC+1NO ST/PT GOLD/SILVER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet +1

51-151.022F

Active

EAO

ILLUMINATED PUSHBUTTON FLUSH MOUNTING NEUTRAL MOM SA 1NC+1NO ST/PT GOLD/SILVER

Deep-Dive with AI

DocumentsDatasheet Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	51-151.022F

Actuator Marking	No Marking
Actuator Type	Square, Button (Not Included)
Circuit	DPST-NO/NC
Current Rating (Amps)	5 A
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	2000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	21.2 mm
Panel Cutout Dimensions [y]	21.2 mm
Switch Function	Off-Mom, On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Standard
Voltage Rating - AC	250 V

51-141 Series

Rotary Switches Rotary Switch, Standard, 1/8" shaft, 22.5°, 1 deck, 2 pole/deck, 5 positions/pole, non-shorting

Part	Shape	Illumination	Switch Type	Mounting Type	Size [x]	Size [y]	Color	Ingress Protection	Actuator Type	Type	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Switch Function	Actuator Marking	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Circuit	Contact Timing	Number of Positions	Depth Behind Flange	Features	Electrical Life	Termination Style	Termination Style	Termination Style	Angle of Throw	Key Removable Positions	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Accessory Type	Voltage Rating - DC
EAO 51-951.3	Square	Illuminated	Pushbutton	Snap Fit	15.3 mm	15.3 mm
EAO 51-951.5	Square	Illuminated	Pushbutton	Snap Fit	15.3 mm	15.3 mm	Green
EAO 51-151.012				Panel Mount Front				IP65 - Dust Tight Water Resistant	Square Button (Not Included)	Standard	250 V	55 °C	-25 °C	1000000 Cycles	Off-Mom On-Mom	No Marking	16 mm	5 A	DPST-NO/NC
EAO 51-141.022K									Flat Key		250 V	55 °C	-25 °C		Off-Mom On-Mom		16 mm	5 A	DPST-NO/NC	Not Specified	2	35.5 mm	IP65	50000 Cycles	0.11 in	Quick Connect Solder	2.8 mm	42 °	1 only
EAO 51-151.022				Panel Mount Front				IP65 - Dust Tight Water Resistant	Square Button (Not Included)	Standard	250 V	55 °C	-25 °C	2000000 Cycles	Off-Mom On-Mom	No Marking	16 mm	5 A	DPST-NO/NC						0.11 in	Quick Connect Solder	2.8 mm
EAO 51-151.022F				Panel Mount Front				IP65 - Dust Tight Water Resistant	Square Button (Not Included)	Standard	250 V	55 °C	-25 °C	2000000 Cycles	Off-Mom On-Mom	No Marking		5 A	DPST-NO/NC						0.11 in	Quick Connect Solder	2.8 mm			21.2 mm	21.2 mm
EAO 51-925																																Cover
EAO 51-141.025D									Flat Key		250 V	55 °C	-25 °C		Off-Mom On-Mom		16 mm	5 A	DPST-NO/NC	Not Specified	2	26.5 mm	IP65			Solder Lug		42 °	1 only
EAO 51-457.036D									Flat Key		42 V	55 °C	-25 °C		Off-Mom On-Mom		16 mm	100 mA	DPST-NO	Not Specified	2	35.5 mm	IP65			PC Pin Solder Lug		42 °	1 only				42 V
EAO 51-451.036F				Panel Mount Front				IP65 - Dust Tight Water Resistant	Square Button (Not Included)	Standard	42 V	55 °C	-25 °C	5000000 Cycles	Off-Mom	No Marking		100 mA	DPST-NO							PC Pin Solder Lug				21.2 mm	21.2 mm		42 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 43.76
		10	$ 39.82
		25	$ 37.97
		50	$ 35.42
		100	$ 34.03
		250	$ 31.72
Newark	Each	1	$ 40.09
		5	$ 38.53
		10	$ 36.08
		25	$ 34.97
		50	$ 32.08
		100	$ 30.96
		250	$ 30.07
Sager	N/A	1	$ 38.43
		25	$ 35.31
		50	$ 34.11
		100	$ 33.39
		250	$ 32.43
		500	$ 31.23
		1000	$ 30.02

Description

General part information

51-141 Series

Rotary Switches Rotary Switch, Standard, 1/8" shaft, 22.5°, 1 deck, 2 pole/deck, 5 positions/pole, non-shorting

Documents

Technical documentation and resources

Datasheet

Document

Datasheet

Technical Data Sheet EN

Datasheet
