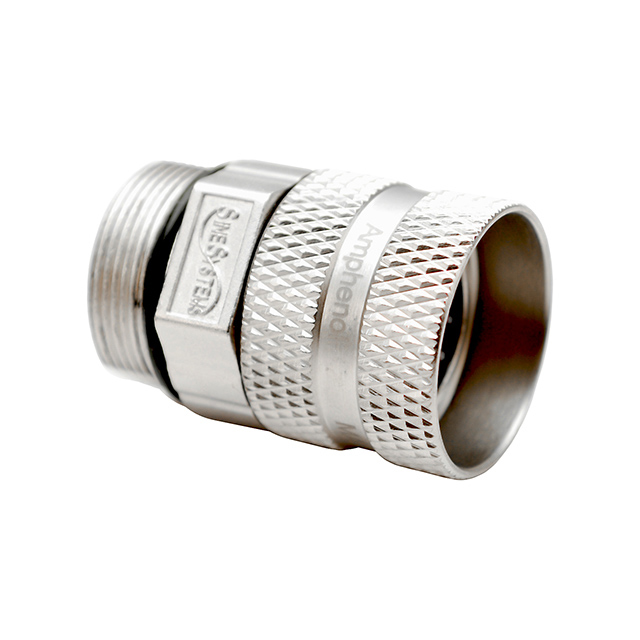

MA1CAE1600

Active

Amphenol Sine Systems Corp

CONN PLUG HSNG F/M 16POS INLINE

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN PLUG HSNG F/M 16POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	MA1CAE1600

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1 mm
Contact Type	Crimp
Features	Coupling Nut
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	16
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	E
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-16
Shielding	Shielded
Type	For Female Sockets or Male Pins

Part	Termination	Current Rating (Amps)	Contact Finish - Mating	Mounting Type	Voltage Rating	Shielding	Shell Size - Insert	Ingress Protection	Shell Material	Connector Type	Primary Material	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Color	Shell Finish	Material Flammability Rating	Housing Color	Note	Type	Contact Size	Features	Insert Material	Contact Type	Contact Shape	Number of Positions
Amphenol Sine Systems Corp MA1CAE1700M-KIT	Crimp	9 A	Gold	Free Hanging (In-Line)	125 VAC	Shielded	M23-17	IP67 - Dust Tight Waterproof	Zinc Die Cast	Male Pins Plug	Metal	E	-20 C	130 °C	Silver	Nickel
Amphenol Sine Systems Corp MA1CAE1600				Free Hanging (In-Line)		Shielded	M23-16	IP67 - Dust Tight Waterproof	Zinc Die Cast	Plug Housing		E	-20 C	130 °C		Nickel	UL94 V-0	Silver	Contacts Not Included	For Female Sockets or Male Pins	1 mm	Coupling Nut	Polyamide (PA66) Nylon 6/6	Crimp	Circular	16
Amphenol Sine Systems Corp MA1CAE1700				Free Hanging (In-Line)		Shielded	M23-17	IP67 - Dust Tight Waterproof	Zinc Die Cast	Plug Housing		E	-20 C	130 °C		Nickel	UL94 V-0	Silver	Contacts Not Included	For Female Sockets or Male Pins	1 mm	Coupling Nut	Polyamide (PA66) Nylon 6/6	Crimp	Circular

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 12.09

General part information

16 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
