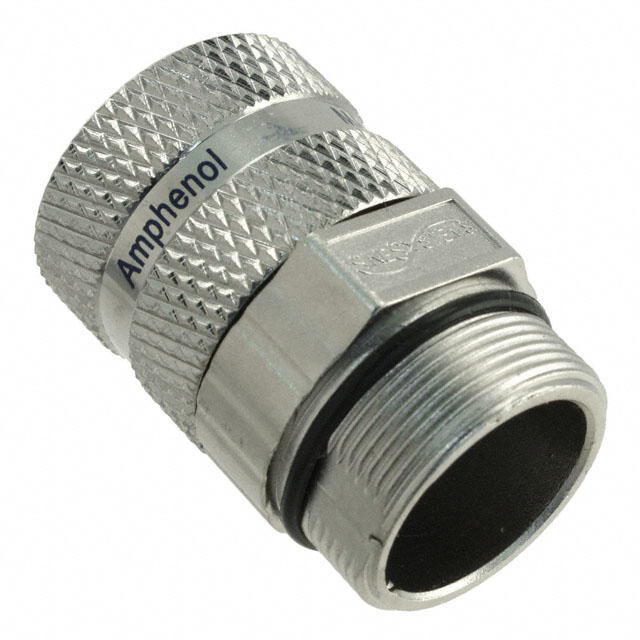

MA1CAE1700
ActiveAmphenol Sine Systems Corp
CONN PLUG HSNG F/M 17POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
MA1CAE1700
ActiveAmphenol Sine Systems Corp
CONN PLUG HSNG F/M 17POS INLINE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MA1CAE1700 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 1 mm |
| Contact Type | Crimp |
| Features | Coupling Nut |
| Housing Color | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -20 C |
| Orientation | E |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | M23-17 |
| Shielding | Shielded |
| Type | For Female Sockets or Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.82 | |
| 10 | $ 8.71 | |||
| 25 | $ 8.37 | |||
| 50 | $ 8.04 | |||
| 100 | $ 7.86 | |||
Description
General part information
MA1CAE Series
17 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
