BM20B(0.6)-24DS-0.4V(53)

Active

Hirose Electric USA, Inc.

0.4MM PITCH, 0.6 AND 0.8MM HEIGHT, BOARD TO BOARD / FPC TO BOARD CONNECTORS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

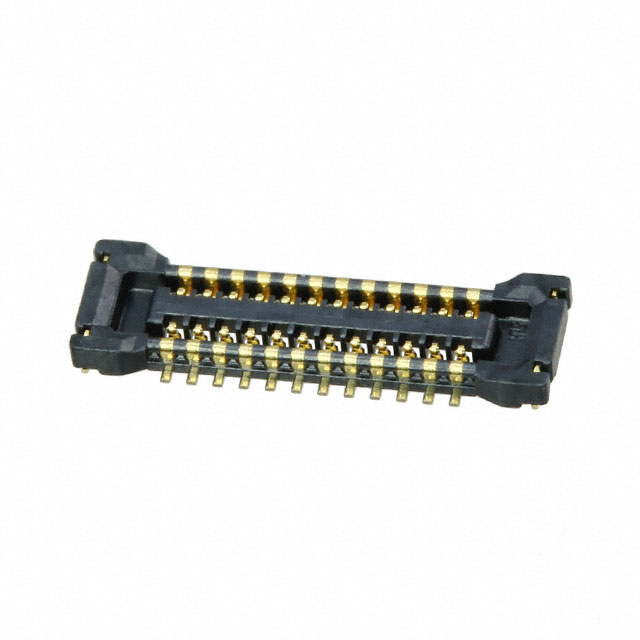

BM20B(0.6)-24DS-0.4V(53)

Active

Hirose Electric USA, Inc.

0.4MM PITCH, 0.6 AND 0.8MM HEIGHT, BOARD TO BOARD / FPC TO BOARD CONNECTORS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BM20B(0.6)-24DS-0.4V(53)

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.024 in
Height Above Board	0.61 mm
Mated Stacking Heights	0.6 mm
Mounting Type	Surface Mount
Number of Positions	24
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

BM20B Series

Part	Height Above Board	Height Above Board	Mounting Type	Contact Finish	Number of Positions	Pitch [x]	Pitch [x]	Connector Type	Features	Number of Rows	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness	Height Above Board [z]	Height Above Board [z]
Hirose Electric USA, Inc. BM20B(0.6)-24DS-0.4V(51)	0.024 in	0.61 mm	Surface Mount	Gold	24	0.016 in	0.4 mm	Center Strip Contacts Receptacle	Solder Retention	2	0.6 mm
Hirose Electric USA, Inc. BM20B(0.6)-50DP-0.4V(53)	0.02 in	0.5 mm	Surface Mount	Gold	50	0.016 in	0.4 mm	Header Outer Shroud Contacts		2	0.6 mm
Hirose Electric USA, Inc. BM20B(0.8)-30DP-0.4V(79)
Hirose Electric USA, Inc. BM20B(0.8)-20DP-0.4V(51)	0.026 in	0.65 mm	Surface Mount	Gold	20	0.016 in	0.4 mm	Header Outer Shroud Contacts	Solder Retention	2	0.8 mm
Hirose Electric USA, Inc. BM20B(0.8)-10DP-0.4V(75)	0.026 in	0.65 mm	Surface Mount	Gold	10	0.016 in	0.4 mm	Header Outer Shroud Contacts	Solder Retention	2	0.8 mm	4 Áin	0.1 Ám
Hirose Electric USA, Inc. BM20B(0.6)-24DS-0.4V(53)	0.024 in	0.61 mm	Surface Mount	Gold	24	0.016 in	0.4 mm	Center Strip Contacts Receptacle	Solder Retention	2	0.6 mm
Hirose Electric USA, Inc. BM20B(0.8)-20DS-0.4V(53)			Surface Mount	Gold	20	0.016 in	0.4 mm	Center Strip Contacts Receptacle	Solder Retention	2	0.8 mm			0.8 mm	0.031 in
Hirose Electric USA, Inc. BM20B(0.6)-50DP-0.4V(51)	0.02 in	0.5 mm	Surface Mount	Gold	50	0.016 in	0.4 mm	Header Outer Shroud Contacts		2	0.6 mm
Hirose Electric USA, Inc. BM20B(0.8)-24DP-0.4V(53)	0.026 in	0.65 mm	Surface Mount	Gold	24	0.016 in	0.4 mm	Header Outer Shroud Contacts	Solder Retention	2	0.8 mm
Hirose Electric USA, Inc. BM20B(0.6)-40DS-0.4V(53)	0.024 in	0.61 mm	Surface Mount	Gold	40	0.016 in	0.4 mm	Center Strip Contacts Receptacle	Solder Retention	2	0.6 mm
