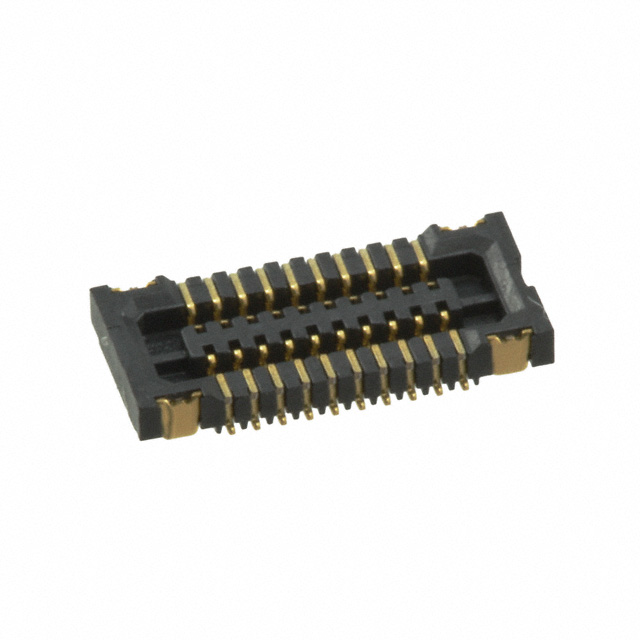

BM20B(0.8)-20DS-0.4V(53)

Active

Hirose Electric USA, Inc.

CONN RCPT 20POS SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BM20B(0.8)-20DS-0.4V(53)

Active

Hirose Electric USA, Inc.

CONN RCPT 20POS SMD GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BM20B(0.8)-20DS-0.4V(53)

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	0.8 mm
Height Above Board [z]	0.031 in
Mated Stacking Heights	0.8 mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

BM20B Series

Part	Height Above Board	Height Above Board	Mounting Type	Contact Finish	Number of Positions	Pitch [x]	Pitch [x]	Connector Type	Features	Number of Rows	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness	Height Above Board [z]	Height Above Board [z]
Hirose Electric USA, Inc. BM20B(0.6)-24DS-0.4V(51)	0.024 in	0.61 mm	Surface Mount	Gold	24	0.016 in	0.4 mm	Center Strip Contacts Receptacle	Solder Retention	2	0.6 mm
Hirose Electric USA, Inc. BM20B(0.6)-50DP-0.4V(53)	0.02 in	0.5 mm	Surface Mount	Gold	50	0.016 in	0.4 mm	Header Outer Shroud Contacts		2	0.6 mm
Hirose Electric USA, Inc. BM20B(0.8)-30DP-0.4V(79)
Hirose Electric USA, Inc. BM20B(0.8)-20DP-0.4V(51)	0.026 in	0.65 mm	Surface Mount	Gold	20	0.016 in	0.4 mm	Header Outer Shroud Contacts	Solder Retention	2	0.8 mm
Hirose Electric USA, Inc. BM20B(0.8)-10DP-0.4V(75)	0.026 in	0.65 mm	Surface Mount	Gold	10	0.016 in	0.4 mm	Header Outer Shroud Contacts	Solder Retention	2	0.8 mm	4 Áin	0.1 Ám
Hirose Electric USA, Inc. BM20B(0.6)-24DS-0.4V(53)	0.024 in	0.61 mm	Surface Mount	Gold	24	0.016 in	0.4 mm	Center Strip Contacts Receptacle	Solder Retention	2	0.6 mm
Hirose Electric USA, Inc. BM20B(0.8)-20DS-0.4V(53)			Surface Mount	Gold	20	0.016 in	0.4 mm	Center Strip Contacts Receptacle	Solder Retention	2	0.8 mm			0.8 mm	0.031 in
Hirose Electric USA, Inc. BM20B(0.6)-50DP-0.4V(51)	0.02 in	0.5 mm	Surface Mount	Gold	50	0.016 in	0.4 mm	Header Outer Shroud Contacts		2	0.6 mm
Hirose Electric USA, Inc. BM20B(0.8)-24DP-0.4V(53)	0.026 in	0.65 mm	Surface Mount	Gold	24	0.016 in	0.4 mm	Header Outer Shroud Contacts	Solder Retention	2	0.8 mm
Hirose Electric USA, Inc. BM20B(0.6)-40DS-0.4V(53)	0.024 in	0.61 mm	Surface Mount	Gold	40	0.016 in	0.4 mm	Center Strip Contacts Receptacle	Solder Retention	2	0.6 mm
