CT2236-7

Obsolete

Cal Test Electronics

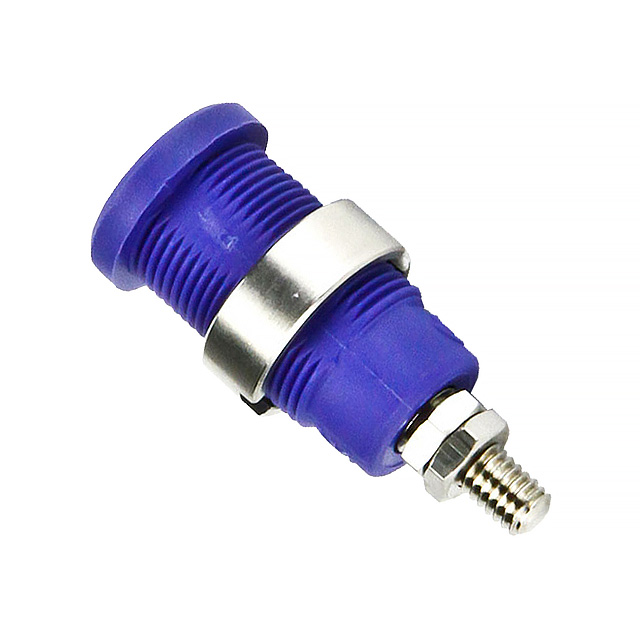

4MM SAFETY JACK, M4 STUD - PANEL, VIOLET ROHS COMPLIANT: YES

Search across all available documentation for this part.

Obsolete

Cal Test Electronics

4MM SAFETY JACK, M4 STUD - PANEL, VIOLET ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Body Material	Color	Type	Gender	Insulation	Termination	Contact Finish	Plug/Mating Plug Diameter	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]
Cal Test Electronics CT2236-9	Nylon Polyamide (PA)	White	Banana Jack	Female	Mating End Insulated	Threaded External (Nut)	Nickel	Standard Banana	Brass	-20 C	80 C
Cal Test Electronics CT2236-7	Nylon Polyamide (PA)	Purple	Banana Jack	Female	Mating End Insulated	Threaded External (Nut)	Nickel	Standard Banana	Brass	-20 C	80 C
Cal Test Electronics CT2236-6	Nylon Polyamide (PA)	Blue	Banana Jack	Female	Mating End Insulated	Threaded External (Nut)	Nickel	Standard Banana	Brass	-20 C	80 C
Cal Test Electronics CT2236-0	Nylon Polyamide (PA)	Black	Banana Jack	Female	Mating End Insulated	Threaded External (Nut)	Nickel	Standard Banana	Brass	-20 C	80 C
Cal Test Electronics CT2236-2	Nylon Polyamide (PA)	Red	Banana Jack	Female	Mating End Insulated	Threaded External (Nut)	Nickel	Standard Banana	Brass	-20 C	80 C
Cal Test Electronics CT2236-8	Nylon Polyamide (PA)	Gray	Banana Jack	Female	Mating End Insulated	Threaded External (Nut)	Nickel	Standard Banana	Brass	-20 C	80 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.00
Newark	Each	1	$ 3.00

General part information

Banana Jack Connector Standard Banana Threaded, External (Nut) Purple

Technical documentation and resources

No documents available
