CT2236-0

Active

Cal Test Electronics

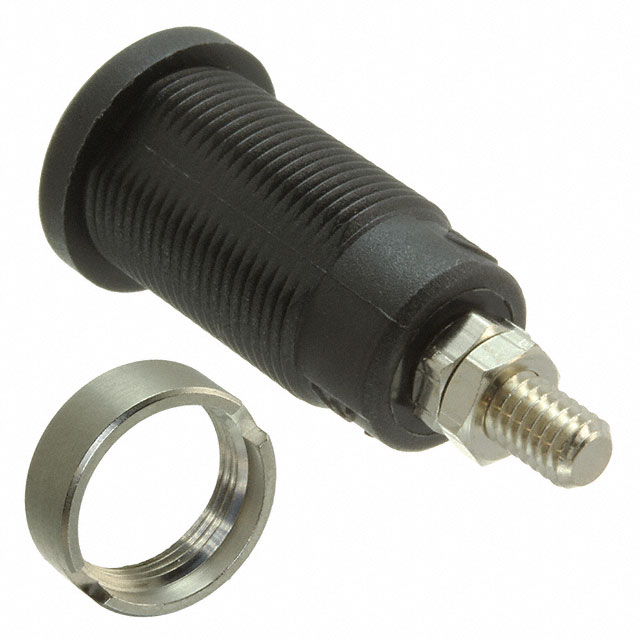

CONN BANANA JACK THRD BLACK

Search across all available documentation for this part.

Active

Cal Test Electronics

CONN BANANA JACK THRD BLACK

Technical Specifications

Parameters and characteristics for this part

Part	Body Material	Color	Type	Gender	Insulation	Termination	Contact Finish	Plug/Mating Plug Diameter	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]
Cal Test Electronics CT2236-9	Nylon Polyamide (PA)	White	Banana Jack	Female	Mating End Insulated	Threaded External (Nut)	Nickel	Standard Banana	Brass	-20 C	80 C
Cal Test Electronics CT2236-7	Nylon Polyamide (PA)	Purple	Banana Jack	Female	Mating End Insulated	Threaded External (Nut)	Nickel	Standard Banana	Brass	-20 C	80 C
Cal Test Electronics CT2236-6	Nylon Polyamide (PA)	Blue	Banana Jack	Female	Mating End Insulated	Threaded External (Nut)	Nickel	Standard Banana	Brass	-20 C	80 C
Cal Test Electronics CT2236-0	Nylon Polyamide (PA)	Black	Banana Jack	Female	Mating End Insulated	Threaded External (Nut)	Nickel	Standard Banana	Brass	-20 C	80 C
Cal Test Electronics CT2236-2	Nylon Polyamide (PA)	Red	Banana Jack	Female	Mating End Insulated	Threaded External (Nut)	Nickel	Standard Banana	Brass	-20 C	80 C
Cal Test Electronics CT2236-8	Nylon Polyamide (PA)	Gray	Banana Jack	Female	Mating End Insulated	Threaded External (Nut)	Nickel	Standard Banana	Brass	-20 C	80 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.55

General part information

Banana Jack Connector Standard Banana Threaded, External (Nut) Black

Technical documentation and resources

No documents available
