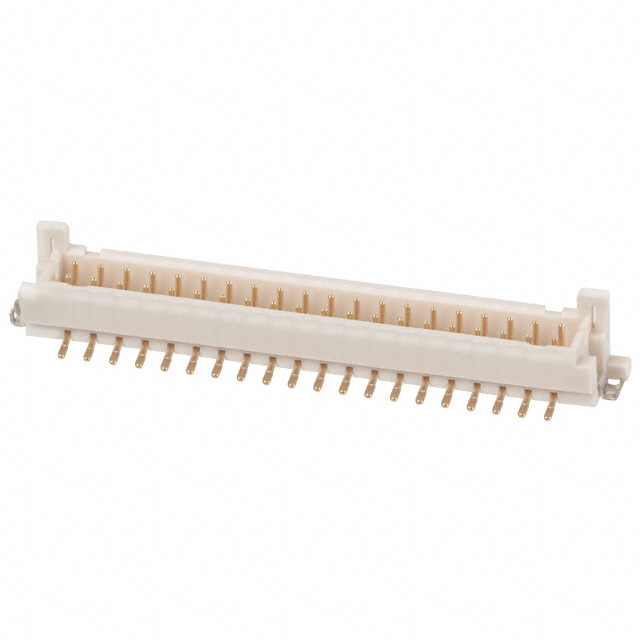

DF11G-40DP-2V(50)

Obsolete

Hirose Electric USA, Inc.

CONN HEADER SMD 40POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF11G-40DP-2V(50)

Obsolete

Hirose Electric USA, Inc.

CONN HEADER SMD 40POS 2MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF11G-40DP-2V(50)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Detent Lock
Features	Solder Retention, Board Guide
Insulation Color	Beige
Insulation Height	0.283 "
Insulation Height	7.19 mm
Insulation Material	Polyamide (PA), Nylon
Mated Stacking Heights	8.2 mm, 9.55 mm, 8.45 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VDC

DF11G Series

Part	Mounting Type	Mated Stacking Heights	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Material Flammability Rating	Contact Shape	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Mating	Voltage Rating	Shrouding	Insulation Height	Insulation Height	Insulation Color	Connector Type	Contact Type	Current Rating (Amps)	Number of Positions Loaded	Fastening Type	Features	Contact Material	Style	Row Spacing - Mating	Row Spacing - Mating	Termination	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post
Hirose Electric USA, Inc. DF11G-32DP-2V(50)	Surface Mount	8.2 mm 8.45 mm 9.55 mm	2	-30 ░C	85 °C	Nylon Polyamide (PA)	UL94 V-0	Circular	0.079 in	2 mm	Gold	250 VDC	Shrouded - 4 Wall	0.283 "	7.19 mm	Beige	Header	Male Pin	2 A	All	Detent Lock	Board Guide Solder Retention	Brass	Board to Board Cable	0.079 in	2 mm	Solder
Hirose Electric USA, Inc. DF11GZ-8DP-2V(20)	Surface Mount	8.2 mm 8.45 mm 9.55 mm	2	-30 ░C	85 °C	Nylon Polyamide (PA)	UL94 V-0	Circular	0.079 in	2 mm		250 VDC	Shrouded - 4 Wall	0.283 "	7.19 mm	Beige	Header	Male Pin	2 A	All	Detent Lock	Board Guide Solder Retention	Brass	Board to Board Cable	0.079 in	2 mm	Solder	8	1 µm	39.4 µin	Tin
Hirose Electric USA, Inc. DF11GZ-30DP-2V(20)	Surface Mount	8.2 mm 8.45 mm 9.55 mm	2	-30 ░C	85 °C	Nylon Polyamide (PA)	UL94 V-0	Circular	0.079 in	2 mm		250 VDC	Shrouded - 4 Wall	0.283 "	7.19 mm	Beige	Header	Male Pin	2 A	All	Detent Lock	Board Guide Solder Retention	Brass	Board to Board Cable	0.079 in	2 mm	Solder	30	1 µm	39.4 µin	Tin
Hirose Electric USA, Inc. DF11G-8DP-2V(50)	Surface Mount	8.2 mm 8.45 mm 9.55 mm	2	-30 ░C	85 °C	Nylon Polyamide (PA)	UL94 V-0	Circular	0.079 in	2 mm	Gold	250 VDC	Shrouded - 4 Wall	0.283 "	7.19 mm	Beige	Header	Male Pin	2 A	All	Detent Lock	Board Guide Solder Retention	Brass	Board to Board Cable	0.079 in	2 mm	Solder	8
Hirose Electric USA, Inc. DF11GZ-4DP-2V(20)	Surface Mount	8.2 mm 8.45 mm 9.55 mm	2	-30 ░C	85 °C	Nylon Polyamide (PA)	UL94 V-0	Circular	0.079 in	2 mm		250 VDC	Shrouded - 4 Wall	0.283 "	7.19 mm	Beige	Header	Male Pin	2 A	All	Detent Lock	Board Guide Solder Retention	Brass	Board to Board Cable	0.079 in	2 mm	Solder	4	1 µm	39.4 µin	Tin
Hirose Electric USA, Inc. DF11GZ-28DP-2V(20)	Surface Mount	8.2 mm 8.45 mm 9.55 mm	2	-30 ░C	85 °C	Nylon Polyamide (PA)	UL94 V-0	Circular	0.079 in	2 mm		250 VDC	Shrouded - 4 Wall	0.283 "	7.19 mm	Beige	Header	Male Pin	2 A	All	Detent Lock	Board Guide Solder Retention	Brass	Board to Board Cable	0.079 in	2 mm	Solder	28	1 µm	39.4 µin	Tin
Hirose Electric USA, Inc. DF11GZ-18DP-2V(20)	Surface Mount	8.2 mm 8.45 mm 9.55 mm	2	-30 ░C	85 °C	Nylon Polyamide (PA)	UL94 V-0	Circular	0.079 in	2 mm		250 VDC	Shrouded - 4 Wall	0.283 "	7.19 mm	Beige	Header	Male Pin	2 A	All	Detent Lock	Board Guide Solder Retention	Brass	Board to Board Cable	0.079 in	2 mm	Solder	18	1 µm	39.4 µin	Tin
Hirose Electric USA, Inc. DF11GZ-40DP-2V(20)	Surface Mount	8.2 mm 8.45 mm 9.55 mm	2	-30 ░C	85 °C	Nylon Polyamide (PA)	UL94 V-0	Circular	0.079 in	2 mm		250 VDC	Shrouded - 4 Wall	0.283 "	7.19 mm	Beige	Header	Male Pin	2 A	All	Detent Lock	Board Guide Solder Retention	Brass	Board to Board Cable	0.079 in	2 mm	Solder	40	1 µm	39.4 µin	Tin
Hirose Electric USA, Inc. DF11G-40DP-2V(50)	Surface Mount	8.2 mm 8.45 mm 9.55 mm	2	-30 ░C	85 °C	Nylon Polyamide (PA)	UL94 V-0	Circular	0.079 in	2 mm	Gold	250 VDC	Shrouded - 4 Wall	0.283 "	7.19 mm	Beige	Header	Male Pin	2 A	All	Detent Lock	Board Guide Solder Retention	Brass	Board to Board Cable	0.079 in	2 mm	Solder	40
Hirose Electric USA, Inc. DF11GZ-12DP-2V(20)	Surface Mount	8.2 mm 8.45 mm 9.55 mm	2	-30 ░C	85 °C	Nylon Polyamide (PA)	UL94 V-0	Circular	0.079 in	2 mm		250 VDC	Shrouded - 4 Wall	0.283 "	7.19 mm	Beige	Header	Male Pin	2 A	All	Detent Lock	Board Guide Solder Retention	Brass	Board to Board Cable	0.079 in	2 mm	Solder	12	1 µm	39.4 µin	Tin
