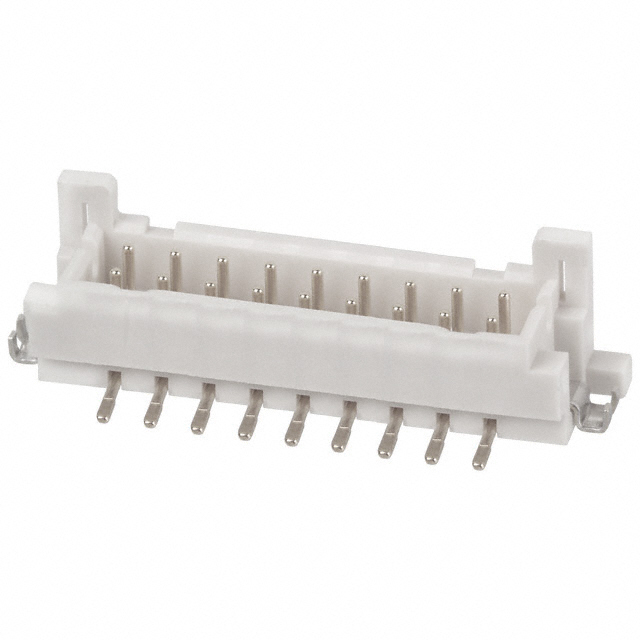

DF11GZ-18DP-2V(20)
ObsoleteHirose Electric USA, Inc.
CONN HEADER SMD 18POS 2MM
Deep-Dive with AI
Search across all available documentation for this part.
DF11GZ-18DP-2V(20)
ObsoleteHirose Electric USA, Inc.
CONN HEADER SMD 18POS 2MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DF11GZ-18DP-2V(20) |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 1 µm |
| Contact Finish Thickness - Mating | 39.4 µin |
| Contact Material | Brass |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2 A |
| Fastening Type | Detent Lock |
| Features | Solder Retention, Board Guide |
| Insulation Color | Beige |
| Insulation Height | 0.283 " |
| Insulation Height | 7.19 mm |
| Insulation Material | Polyamide (PA), Nylon |
| Mated Stacking Heights | 8.2 mm, 9.55 mm, 8.45 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 18 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 250 VDC |
DF11G Series
| Part | Mounting Type | Mated Stacking Heights | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material | Material Flammability Rating | Contact Shape | Pitch - Mating [x] | Pitch - Mating [x] | Contact Finish - Mating | Voltage Rating | Shrouding | Insulation Height | Insulation Height | Insulation Color | Connector Type | Contact Type | Current Rating (Amps) | Number of Positions Loaded | Fastening Type | Features | Contact Material | Style | Row Spacing - Mating | Row Spacing - Mating | Termination | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric USA, Inc. | Surface Mount | 8.2 mm 8.45 mm 9.55 mm | 2 | -30 ░C | 85 °C | Nylon Polyamide (PA) | UL94 V-0 | Circular | 0.079 in | 2 mm | Gold | 250 VDC | Shrouded - 4 Wall | 0.283 " | 7.19 mm | Beige | Header | Male Pin | 2 A | All | Detent Lock | Board Guide Solder Retention | Brass | Board to Board Cable | 0.079 in | 2 mm | Solder | ||||
Hirose Electric USA, Inc. | Surface Mount | 8.2 mm 8.45 mm 9.55 mm | 2 | -30 ░C | 85 °C | Nylon Polyamide (PA) | UL94 V-0 | Circular | 0.079 in | 2 mm | 250 VDC | Shrouded - 4 Wall | 0.283 " | 7.19 mm | Beige | Header | Male Pin | 2 A | All | Detent Lock | Board Guide Solder Retention | Brass | Board to Board Cable | 0.079 in | 2 mm | Solder | 8 | 1 µm | 39.4 µin | Tin | |
Hirose Electric USA, Inc. | Surface Mount | 8.2 mm 8.45 mm 9.55 mm | 2 | -30 ░C | 85 °C | Nylon Polyamide (PA) | UL94 V-0 | Circular | 0.079 in | 2 mm | 250 VDC | Shrouded - 4 Wall | 0.283 " | 7.19 mm | Beige | Header | Male Pin | 2 A | All | Detent Lock | Board Guide Solder Retention | Brass | Board to Board Cable | 0.079 in | 2 mm | Solder | 30 | 1 µm | 39.4 µin | Tin | |
Hirose Electric USA, Inc. | Surface Mount | 8.2 mm 8.45 mm 9.55 mm | 2 | -30 ░C | 85 °C | Nylon Polyamide (PA) | UL94 V-0 | Circular | 0.079 in | 2 mm | Gold | 250 VDC | Shrouded - 4 Wall | 0.283 " | 7.19 mm | Beige | Header | Male Pin | 2 A | All | Detent Lock | Board Guide Solder Retention | Brass | Board to Board Cable | 0.079 in | 2 mm | Solder | 8 | |||
Hirose Electric USA, Inc. | Surface Mount | 8.2 mm 8.45 mm 9.55 mm | 2 | -30 ░C | 85 °C | Nylon Polyamide (PA) | UL94 V-0 | Circular | 0.079 in | 2 mm | 250 VDC | Shrouded - 4 Wall | 0.283 " | 7.19 mm | Beige | Header | Male Pin | 2 A | All | Detent Lock | Board Guide Solder Retention | Brass | Board to Board Cable | 0.079 in | 2 mm | Solder | 4 | 1 µm | 39.4 µin | Tin | |
Hirose Electric USA, Inc. | Surface Mount | 8.2 mm 8.45 mm 9.55 mm | 2 | -30 ░C | 85 °C | Nylon Polyamide (PA) | UL94 V-0 | Circular | 0.079 in | 2 mm | 250 VDC | Shrouded - 4 Wall | 0.283 " | 7.19 mm | Beige | Header | Male Pin | 2 A | All | Detent Lock | Board Guide Solder Retention | Brass | Board to Board Cable | 0.079 in | 2 mm | Solder | 28 | 1 µm | 39.4 µin | Tin | |
Hirose Electric USA, Inc. | Surface Mount | 8.2 mm 8.45 mm 9.55 mm | 2 | -30 ░C | 85 °C | Nylon Polyamide (PA) | UL94 V-0 | Circular | 0.079 in | 2 mm | 250 VDC | Shrouded - 4 Wall | 0.283 " | 7.19 mm | Beige | Header | Male Pin | 2 A | All | Detent Lock | Board Guide Solder Retention | Brass | Board to Board Cable | 0.079 in | 2 mm | Solder | 18 | 1 µm | 39.4 µin | Tin | |
Hirose Electric USA, Inc. | Surface Mount | 8.2 mm 8.45 mm 9.55 mm | 2 | -30 ░C | 85 °C | Nylon Polyamide (PA) | UL94 V-0 | Circular | 0.079 in | 2 mm | 250 VDC | Shrouded - 4 Wall | 0.283 " | 7.19 mm | Beige | Header | Male Pin | 2 A | All | Detent Lock | Board Guide Solder Retention | Brass | Board to Board Cable | 0.079 in | 2 mm | Solder | 40 | 1 µm | 39.4 µin | Tin | |
Hirose Electric USA, Inc. | Surface Mount | 8.2 mm 8.45 mm 9.55 mm | 2 | -30 ░C | 85 °C | Nylon Polyamide (PA) | UL94 V-0 | Circular | 0.079 in | 2 mm | Gold | 250 VDC | Shrouded - 4 Wall | 0.283 " | 7.19 mm | Beige | Header | Male Pin | 2 A | All | Detent Lock | Board Guide Solder Retention | Brass | Board to Board Cable | 0.079 in | 2 mm | Solder | 40 | |||
Hirose Electric USA, Inc. | Surface Mount | 8.2 mm 8.45 mm 9.55 mm | 2 | -30 ░C | 85 °C | Nylon Polyamide (PA) | UL94 V-0 | Circular | 0.079 in | 2 mm | 250 VDC | Shrouded - 4 Wall | 0.283 " | 7.19 mm | Beige | Header | Male Pin | 2 A | All | Detent Lock | Board Guide Solder Retention | Brass | Board to Board Cable | 0.079 in | 2 mm | Solder | 12 | 1 µm | 39.4 µin | Tin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.91 | |
| 10 | $ 1.46 | |||
| 100 | $ 1.12 | |||
Description
General part information
DF11G Series
Connector Header Surface Mount 18 position 0.079" (2.00mm)
