MS3106E22-10P

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED PLUG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3106E22-10P

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED PLUG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3106E22-10P

Applications	Military, Marine
Cable Opening [diameter]	0.74 in
Cable Opening [diameter]	18.8 mm
Color	Olive Drab
Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	13 A
Features	Cable Clamp, Coupling Nut, Backshell
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shielding	Unshielded
Voltage Rating	1250 VAC, 1750 VDC

MS3106E22 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Orientation	Shielding	Qualification	Connector Type	Grade	Applications	Insert Material	Cable Opening [diameter]	Cable Opening [diameter]	Contact Material	Number of Positions	Shell Finish	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Features	Contact Finish - Mating	Primary Material	Mounting Type	Color	Current Rating (Amps)	Ingress Protection	Shell Size - Insert	Voltage Rating
Amphenol Industrial Operations MS3106E22-20P	-55 °C	125 °C	Aluminum Alloy	N	Unshielded	MIL-DTL-5015	Male Pins Plug	Military	Marine Military	Neoprene	0.74 in	18.8 mm	Copper Alloy	9	Olive Drab Chromate over Cadmium	22	20	Backshell Cable Clamp Coupling Nut	Silver	Metal	Free Hanging (In-Line)	Olive Drab	13 A	Environment Resistant
Amphenol Industrial Operations MS3106E22-18P	-55 °C	125 °C	Aluminum Alloy	N	Unshielded	MIL-DTL-5015	Male Pins Plug	Military	Marine Military	Neoprene	0.74 in	18.8 mm	Copper Alloy	8	Olive Drab Chromate over Cadmium	18	22	Backshell Cable Clamp Coupling Nut	Silver	Metal	Free Hanging (In-Line)	Olive Drab	13 A	Environment Resistant
Amphenol Industrial Operations MS3106E22-20S
Amphenol Industrial Operations MS3106E22-11S	-55 °C	125 °C	Aluminum Alloy	N	Unshielded	MIL-DTL-5015	Female Sockets Plug	Military	Marine Military	Neoprene	0.74 in	18.8 mm	Copper Alloy	2	Olive Drab Chromate over Cadmium			Backshell Cable Clamp Coupling Nut	Silver	Metal	Free Hanging (In-Line)	Olive Drab	13 A	Environment Resistant	22-11
Amphenol Industrial Operations MS3106E22-8P	-55 °C	125 °C	Aluminum Alloy	N	Unshielded	MIL-DTL-5015	Male Pins Plug	Military	Marine Military	Neoprene	0.74 in	18.8 mm	Copper Alloy	2	Olive Drab Chromate over Cadmium	8	22	Backshell Cable Clamp Coupling Nut	Silver	Metal	Free Hanging (In-Line)	Olive Drab	23 A	Environment Resistant		1250 VAC 1750 VDC
Amphenol Industrial Operations MS3106E22-1S
Amphenol Industrial Operations MS3106E22-16S
Amphenol Industrial Operations MS3106E22-12S
Amphenol Industrial Operations MS3106E22-10P	-55 °C	125 °C	Aluminum Alloy	N	Unshielded	MIL-DTL-5015	Male Pins Plug	Military	Marine Military	Neoprene	0.74 in	18.8 mm	Copper Alloy	4	Olive Drab Chromate over Cadmium			Backshell Cable Clamp Coupling Nut	Silver	Metal	Free Hanging (In-Line)	Olive Drab	13 A	Environment Resistant		1250 VAC 1750 VDC
Amphenol Industrial Operations MS3106E22-15S

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 39.54
		10	$ 34.62
		25	$ 33.13
		50	$ 32.06
		100	$ 30.99
		250	$ 29.28

Description

General part information

MS3106E22 Series

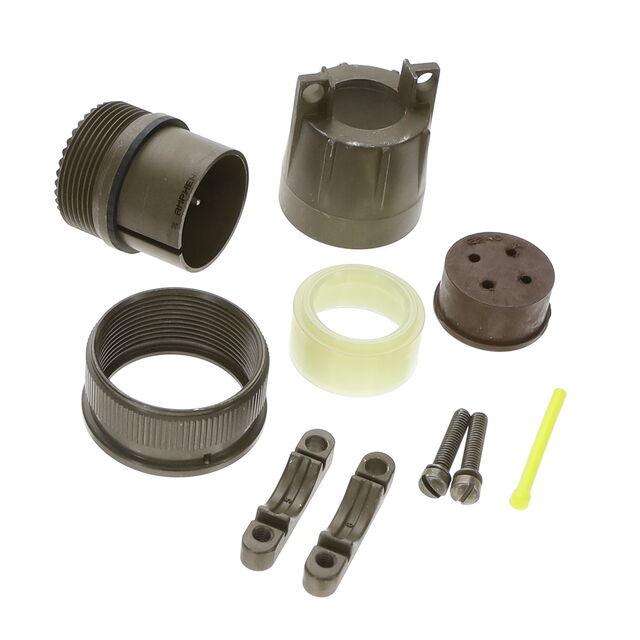

4 Position Circular Connector Plug, Male Pins Solder Cup
