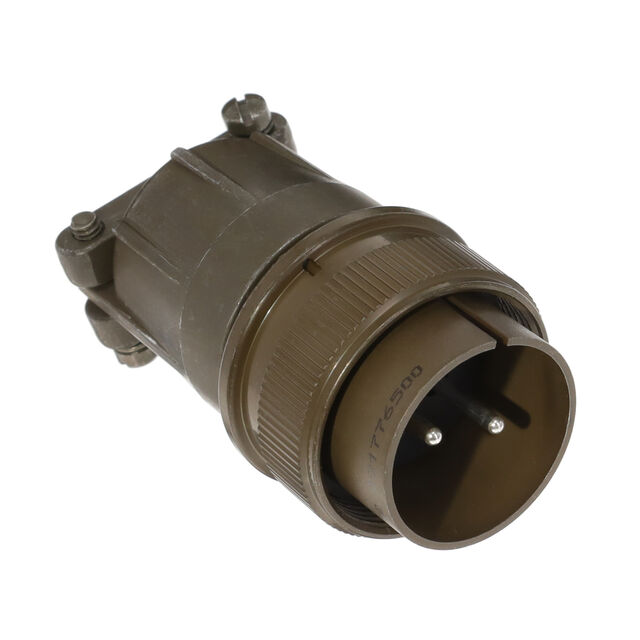

MS3106E22-8P
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED PLUG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3106E22-8P
ActiveAmphenol Industrial Operations
MIL-5015 MS/AC THREADED PLUG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MS3106E22-8P |
|---|---|
| Applications | Military, Marine |
| Cable Opening [diameter] | 0.74 in |
| Cable Opening [diameter] | 18.8 mm |
| Color | Olive Drab |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 23 A |
| Features | Cable Clamp, Coupling Nut, Backshell |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Insert Material | Neoprene |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-5015 |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert [Max] | 8 |
| Shell Size - Insert [Min] | 22 |
| Shielding | Unshielded |
| Voltage Rating | 1250 VAC, 1750 VDC |
MS3106E22 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Shell Material | Orientation | Shielding | Qualification | Connector Type | Grade | Applications | Insert Material | Cable Opening [diameter] | Cable Opening [diameter] | Contact Material | Number of Positions | Shell Finish | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Features | Contact Finish - Mating | Primary Material | Mounting Type | Color | Current Rating (Amps) | Ingress Protection | Shell Size - Insert | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations | -55 °C | 125 °C | Aluminum Alloy | N | Unshielded | MIL-DTL-5015 | Male Pins Plug | Military | Marine Military | Neoprene | 0.74 in | 18.8 mm | Copper Alloy | 9 | Olive Drab Chromate over Cadmium | 22 | 20 | Backshell Cable Clamp Coupling Nut | Silver | Metal | Free Hanging (In-Line) | Olive Drab | 13 A | Environment Resistant | ||
Amphenol Industrial Operations | -55 °C | 125 °C | Aluminum Alloy | N | Unshielded | MIL-DTL-5015 | Male Pins Plug | Military | Marine Military | Neoprene | 0.74 in | 18.8 mm | Copper Alloy | 8 | Olive Drab Chromate over Cadmium | 18 | 22 | Backshell Cable Clamp Coupling Nut | Silver | Metal | Free Hanging (In-Line) | Olive Drab | 13 A | Environment Resistant | ||
Amphenol Industrial Operations | ||||||||||||||||||||||||||
Amphenol Industrial Operations | -55 °C | 125 °C | Aluminum Alloy | N | Unshielded | MIL-DTL-5015 | Female Sockets Plug | Military | Marine Military | Neoprene | 0.74 in | 18.8 mm | Copper Alloy | 2 | Olive Drab Chromate over Cadmium | Backshell Cable Clamp Coupling Nut | Silver | Metal | Free Hanging (In-Line) | Olive Drab | 13 A | Environment Resistant | 22-11 | |||
Amphenol Industrial Operations | -55 °C | 125 °C | Aluminum Alloy | N | Unshielded | MIL-DTL-5015 | Male Pins Plug | Military | Marine Military | Neoprene | 0.74 in | 18.8 mm | Copper Alloy | 2 | Olive Drab Chromate over Cadmium | 8 | 22 | Backshell Cable Clamp Coupling Nut | Silver | Metal | Free Hanging (In-Line) | Olive Drab | 23 A | Environment Resistant | 1250 VAC 1750 VDC | |
Amphenol Industrial Operations | ||||||||||||||||||||||||||
Amphenol Industrial Operations | ||||||||||||||||||||||||||
Amphenol Industrial Operations | ||||||||||||||||||||||||||
Amphenol Industrial Operations | -55 °C | 125 °C | Aluminum Alloy | N | Unshielded | MIL-DTL-5015 | Male Pins Plug | Military | Marine Military | Neoprene | 0.74 in | 18.8 mm | Copper Alloy | 4 | Olive Drab Chromate over Cadmium | Backshell Cable Clamp Coupling Nut | Silver | Metal | Free Hanging (In-Line) | Olive Drab | 13 A | Environment Resistant | 1250 VAC 1750 VDC | |||
Amphenol Industrial Operations |
