306-027-500-178

Active

EDAC Inc.

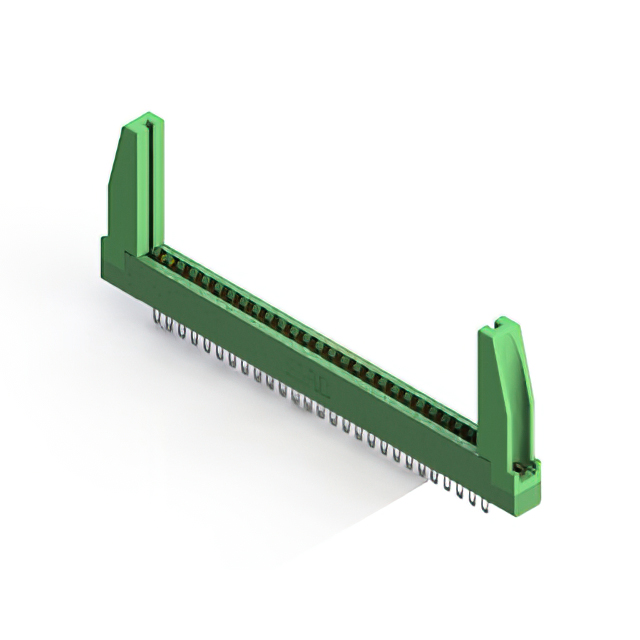

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 27 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

306-027-500-178

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 27 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	306-027-500-178

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Guides
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Number of Positions	54
Number of Positions/Bay/Row [custom]	27
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	1

306-027 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Features	Contact Type	Material - Insulation	Card Type	Termination Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Pitch [x]	Pitch [x]	Termination	Color	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Contact Material	Number of Rows	Number of Positions	Contact Finish	Gender	Read Out	Number of Positions/Bay/Row [custom]	Mounting Type	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 306-027-500-168	10 Áin	0.25 Ám	Card Guides	Cantilever	Polyester Thermoplastic	Non Specified - Dual Edge	1	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Solder Eyelet(s)	Green	-40 °C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	2	54	Gold	Female	Dual	27
EDAC Inc. 306-027-521-101	10 Áin	0.25 Ám		Cantilever	Polyester Thermoplastic	Non Specified - Dual Edge	1	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Solder	Green	-40 °C	105 ░C		Copper Alloy	2	54	Gold	Female	Dual	27	Through Hole
EDAC Inc. 306-027-520-103	10 Áin	0.25 Ám		Cantilever	Polyester Thermoplastic	Non Specified - Dual Edge	1	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Solder	Green	-40 °C	105 ░C	Floating Bobbin Flush Mount	Copper Alloy	2	54	Gold	Female	Dual	27	Panel Mount Through Hole	0.116 in	2.95 mm
EDAC Inc. 306-027-520-168	10 Áin	0.25 Ám	Card Guides	Cantilever	Polyester Thermoplastic	Non Specified - Dual Edge	1	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Solder	Green	-40 °C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	2	54	Gold	Female	Dual	27	Panel Mount Through Hole
EDAC Inc. 306-027-421-158			Card Guides	Cantilever	Polyester Thermoplastic	Non Specified - Dual Edge	1	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Solder	Green	-40 °C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	2	54	Tin	Female	Dual	27	Panel Mount Through Hole
EDAC Inc. 306-027-500-178	10 Áin	0.25 Ám	Card Guides	Cantilever	Polyester Thermoplastic	Non Specified - Dual Edge	1	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Solder Eyelet(s)	Green	-40 °C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	2	54	Gold	Female	Dual	27
EDAC Inc. 306-027-400-108				Cantilever	Polyester Thermoplastic	Non Specified - Dual Edge	1	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Solder Eyelet(s)	Green	-40 °C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	2	54	Tin	Female	Dual	27
EDAC Inc. 306-027-520-178	10 Áin	0.25 Ám	Card Guides	Cantilever	Polyester Thermoplastic	Non Specified - Dual Edge	1	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Solder	Green	-40 °C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	2	54	Gold	Female	Dual	27	Panel Mount Through Hole
EDAC Inc. 306-027-520-158	10 Áin	0.25 Ám	Card Guides	Cantilever	Polyester Thermoplastic	Non Specified - Dual Edge	1	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Solder	Green	-40 °C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	2	54	Gold	Female	Dual	27	Panel Mount Through Hole
EDAC Inc. 306-027-521-102	10 Áin	0.25 Ám		Cantilever	Polyester Thermoplastic	Non Specified - Dual Edge	1	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Solder	Green	-40 °C	105 ░C	Flush Mount Top Opening Unthreaded	Copper Alloy	2	54	Gold	Female	Dual	27	Panel Mount Through Hole	0.128 "	3.25 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 18.31
Newark	Each	1	$ 20.45
		100	$ 12.51
		250	$ 10.67
		500	$ 9.52
		1000	$ 8.13

Description

General part information

306-027 Series

54 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
