306-027-400-108

Active

EDAC Inc.

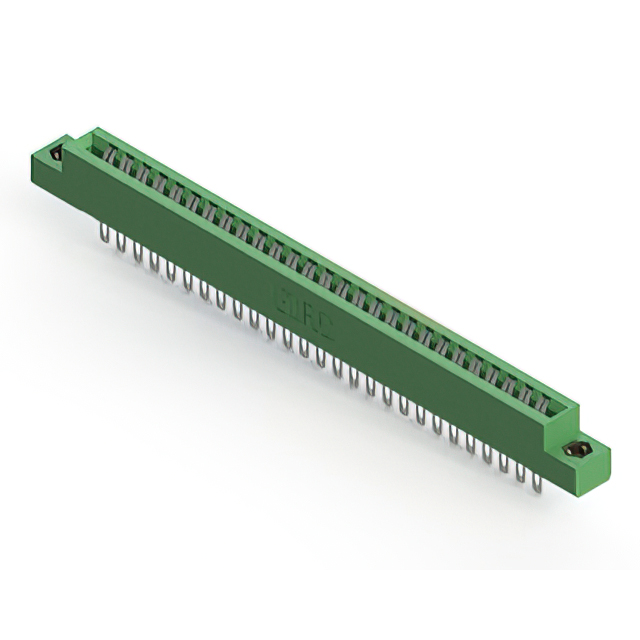

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 27 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

306-027-400-108

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 27 CONTACTS, PANEL MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	306-027-400-108

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Number of Positions	54
Number of Positions/Bay/Row [custom]	27
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	1

306-027 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Features	Contact Type	Material - Insulation	Card Type	Termination Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Pitch [x]	Pitch [x]	Termination	Color	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Contact Material	Number of Rows	Number of Positions	Contact Finish	Gender	Read Out	Number of Positions/Bay/Row [custom]	Mounting Type	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 306-027-500-168	10 Áin	0.25 Ám	Card Guides	Cantilever	Polyester Thermoplastic	Non Specified - Dual Edge	1	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Solder Eyelet(s)	Green	-40 °C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	2	54	Gold	Female	Dual	27
EDAC Inc. 306-027-521-101	10 Áin	0.25 Ám		Cantilever	Polyester Thermoplastic	Non Specified - Dual Edge	1	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Solder	Green	-40 °C	105 ░C		Copper Alloy	2	54	Gold	Female	Dual	27	Through Hole
EDAC Inc. 306-027-520-103	10 Áin	0.25 Ám		Cantilever	Polyester Thermoplastic	Non Specified - Dual Edge	1	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Solder	Green	-40 °C	105 ░C	Floating Bobbin Flush Mount	Copper Alloy	2	54	Gold	Female	Dual	27	Panel Mount Through Hole	0.116 in	2.95 mm
EDAC Inc. 306-027-520-168	10 Áin	0.25 Ám	Card Guides	Cantilever	Polyester Thermoplastic	Non Specified - Dual Edge	1	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Solder	Green	-40 °C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	2	54	Gold	Female	Dual	27	Panel Mount Through Hole
EDAC Inc. 306-027-421-158			Card Guides	Cantilever	Polyester Thermoplastic	Non Specified - Dual Edge	1	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Solder	Green	-40 °C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	2	54	Tin	Female	Dual	27	Panel Mount Through Hole
EDAC Inc. 306-027-500-178	10 Áin	0.25 Ám	Card Guides	Cantilever	Polyester Thermoplastic	Non Specified - Dual Edge	1	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Solder Eyelet(s)	Green	-40 °C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	2	54	Gold	Female	Dual	27
EDAC Inc. 306-027-400-108				Cantilever	Polyester Thermoplastic	Non Specified - Dual Edge	1	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Solder Eyelet(s)	Green	-40 °C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	2	54	Tin	Female	Dual	27
EDAC Inc. 306-027-520-178	10 Áin	0.25 Ám	Card Guides	Cantilever	Polyester Thermoplastic	Non Specified - Dual Edge	1	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Solder	Green	-40 °C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	2	54	Gold	Female	Dual	27	Panel Mount Through Hole
EDAC Inc. 306-027-520-158	10 Áin	0.25 Ám	Card Guides	Cantilever	Polyester Thermoplastic	Non Specified - Dual Edge	1	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Solder	Green	-40 °C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	2	54	Gold	Female	Dual	27	Panel Mount Through Hole
EDAC Inc. 306-027-521-102	10 Áin	0.25 Ám		Cantilever	Polyester Thermoplastic	Non Specified - Dual Edge	1	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	Solder	Green	-40 °C	105 ░C	Flush Mount Top Opening Unthreaded	Copper Alloy	2	54	Gold	Female	Dual	27	Panel Mount Through Hole	0.128 "	3.25 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 16.83
Newark	Each	1	$ 19.55
		100	$ 11.89
		250	$ 9.96
		500	$ 8.96
		1000	$ 7.60

Description

General part information

306-027 Series

54 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green
