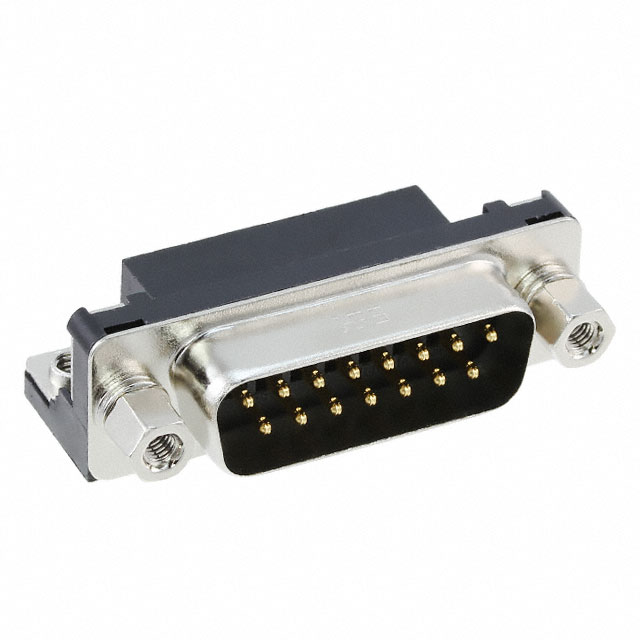

RDAD-15S(55)

Active

Hirose Electric USA, Inc.

D SUBMINIATURE CONNECTOR, 15 CONTACT(S), MALE, SOLDER TERMINAL, M2.5X0.45

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

D SUBMINIATURE CONNECTOR, 15 CONTACT(S), MALE, SOLDER TERMINAL, M2.5X0.45

Technical Specifications

Parameters and characteristics for this part

Specification	RDAD-15S(55)

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Material	Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Flange Feature	Housing/Shell
Flange Feature	2.6 M
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Termination	Solder
Voltage Rating	350 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size, Connector Layout	Dielectric Material	Contact Finish	Contact Material	Number of Rows	Current Rating (Amps)	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Voltage Rating	Contact Type	Number of Positions	Shell Material, Finish	Termination	Color	Material Flammability Rating	Mounting Type	Connector Style	Flange Feature	Flange Feature
Hirose Electric USA, Inc. RDAD-15SE-LNA(55)	85 °C	-55 °C	2	Polybutylene Terephthalate (PBT)	Gold	Phosphor Bronze	2	3 A	Receptacle Female Sockets	8 çin	0.203 çm	350 V	Signal	15	Nickel Plated Steel	Solder	Black	UL94 V-0	Panel Mount Right Angle Through Hole	D-Sub
Hirose Electric USA, Inc. RDAD-15S(55)	85 °C	-55 °C	2	Polybutylene Terephthalate (PBT)	Gold	Phosphor Bronze	2	3 A	Receptacle Female Sockets	8 çin	0.203 çm	350 V	Signal	15	Nickel Plated Steel	Solder	Black	UL94 V-0	Panel Mount Right Angle Through Hole	D-Sub	Housing/Shell	2.6 M

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 Position D-Sub Receptacle, Female Sockets Connector
