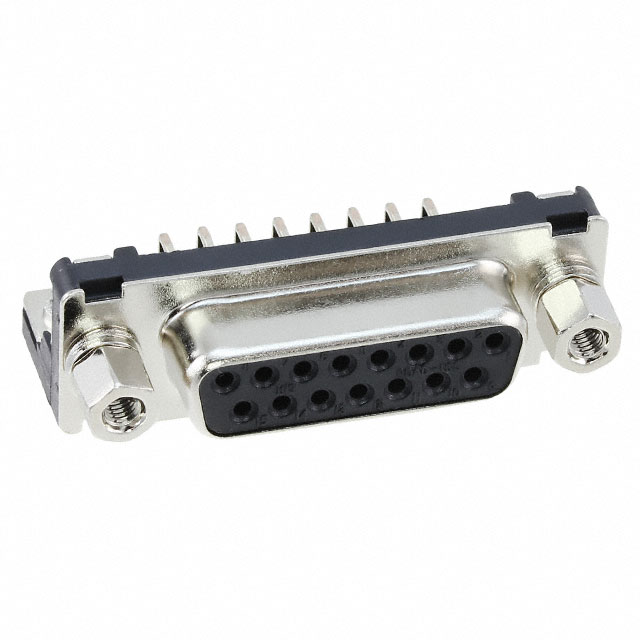

RDAD-15SE-LNA(55)
ActiveHirose Electric USA, Inc.
CONN D-SUB RCPT 15POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RDAD-15SE-LNA(55)
ActiveHirose Electric USA, Inc.
CONN D-SUB RCPT 15POS R/A SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RDAD-15SE-LNA(55) |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Contact Material | Phosphor Bronze |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 2 |
| Termination | Solder |
| Voltage Rating | 350 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 9.86 | |
| 10 | $ 7.57 | |||
| 25 | $ 6.83 | |||
| 40 | $ 6.49 | |||
| 80 | $ 6.03 | |||
| 230 | $ 5.40 | |||
| 440 | $ 5.06 | |||
| 945 | $ 4.70 | |||
Description
General part information
RDAD Series
15 Position D-Sub Receptacle, Female Sockets Connector
