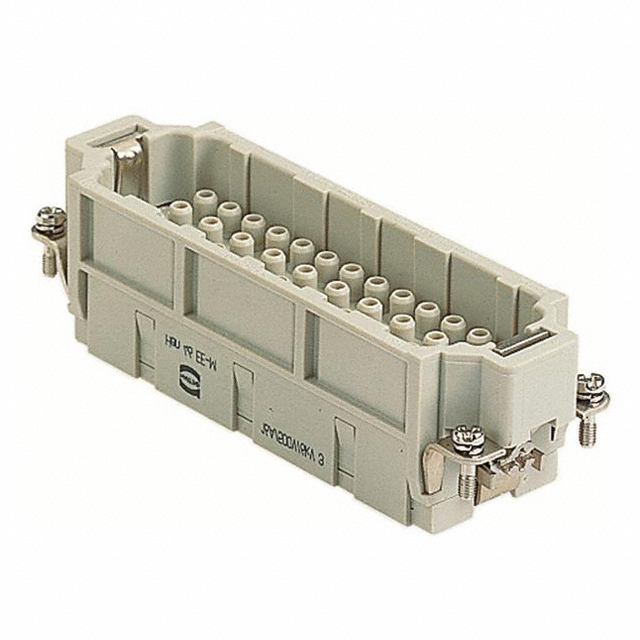

HEAVY DUTY CONNECTOR, UL508, HAN EE SERIES, INSERT, 46+PE CONTACTS, 24B, PLUG, CRIMP PIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

09320463001

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, UL508, HAN EE SERIES, INSERT, 46+PE CONTACTS, 24B, PLUG, CRIMP PIN

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09320463001

Color	Gray
Connector Type	Insert without Contacts
Contact Type	Han®
Current Rating (Amps)	16 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	46+Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Termination Style	Crimp
Voltage Rating	600 V

09320463 Series

Part	Number of Positions	Termination Style	Gender	Connector Type	Voltage Rating	Number of Positions	Material Flammability Rating	Housing Material	Size	Color	Current Rating (Amps)	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]
HARTING Technology Group 09320463181	46	Crimp	Female	Insert without Contacts
HARTING Technology Group 09320463011		Crimp	Male	Insert without Contacts	600 V	46+Ground	UL94 V-0	Polycarbonate (PC)	48 B	Gray	16 A	Han®	125 °C	-40 °C
HARTING Technology Group 09320463101		Crimp	Female	Insert without Contacts	600 V	46+Ground	UL94 V-0	Polycarbonate (PC)	24 B	Gray	16 A	Han®	125 °C	-40 °C
HARTING Technology Group 09320463111		Crimp	Female	Insert without Contacts	600 V	46+Ground	UL94 V-0	Polycarbonate (PC)	48 B	Gray	16 A	Han®	125 °C	-40 °C
HARTING Technology Group 09320463001		Crimp	Male	Insert without Contacts	600 V	46+Ground	UL94 V-0	Polycarbonate (PC)	24 B	Gray	16 A	Han®	125 °C	-40 °C
HARTING Technology Group 09320463081	46	Crimp	Male	Insert without Contacts

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 37.84
		10	$ 33.14
		25	$ 31.71
		50	$ 30.68
		100	$ 29.66
		250	$ 28.02

Description

General part information

09320463 Series

The 09320463001 is a 46-contact rectangular Han EE Male Crimp Terminal Insert, 24B size, 0.14 to 4mm² wire cross section area with crimp terminals. Made of polycarbonate, RAL 7032 (light grey) color insert.
