09320463011

Active

HARTING Technology Group

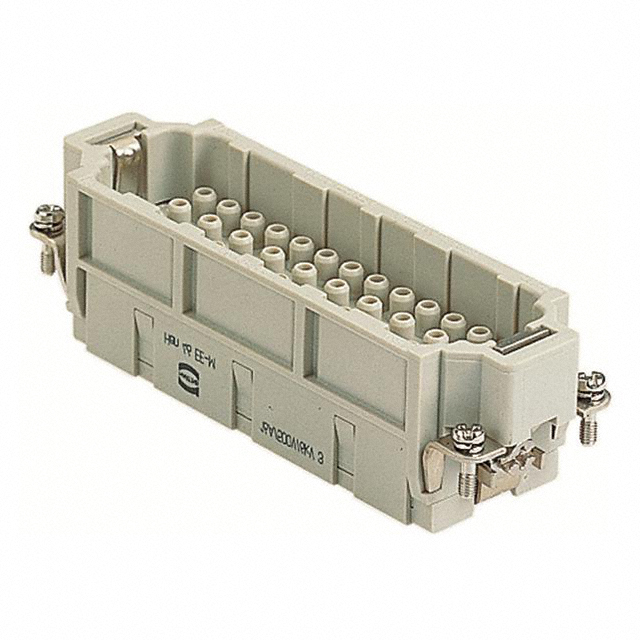

HAN EE 46 POS. MALE CRIMP TERM. (47-92) ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN EE 46 POS. MALE CRIMP TERM. (47-92) ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Specification	09320463011

Color	Gray
Connector Type	Insert without Contacts
Contact Type	Han®
Current Rating (Amps)	16 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	46+Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	48 B
Termination Style	Crimp
Voltage Rating	600 V

Part	Number of Positions	Termination Style	Gender	Connector Type	Voltage Rating	Number of Positions	Material Flammability Rating	Housing Material	Size	Color	Current Rating (Amps)	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]
HARTING Technology Group 09320463181	46	Crimp	Female	Insert without Contacts
HARTING Technology Group 09320463011		Crimp	Male	Insert without Contacts	600 V	46+Ground	UL94 V-0	Polycarbonate (PC)	48 B	Gray	16 A	Han®	125 °C	-40 °C
HARTING Technology Group 09320463101		Crimp	Female	Insert without Contacts	600 V	46+Ground	UL94 V-0	Polycarbonate (PC)	24 B	Gray	16 A	Han®	125 °C	-40 °C
HARTING Technology Group 09320463111		Crimp	Female	Insert without Contacts	600 V	46+Ground	UL94 V-0	Polycarbonate (PC)	48 B	Gray	16 A	Han®	125 °C	-40 °C
HARTING Technology Group 09320463001		Crimp	Male	Insert without Contacts	600 V	46+Ground	UL94 V-0	Polycarbonate (PC)	24 B	Gray	16 A	Han®	125 °C	-40 °C
HARTING Technology Group 09320463081	46	Crimp	Male	Insert without Contacts

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert without Contacts Gray 46+Ground Position Crimp
