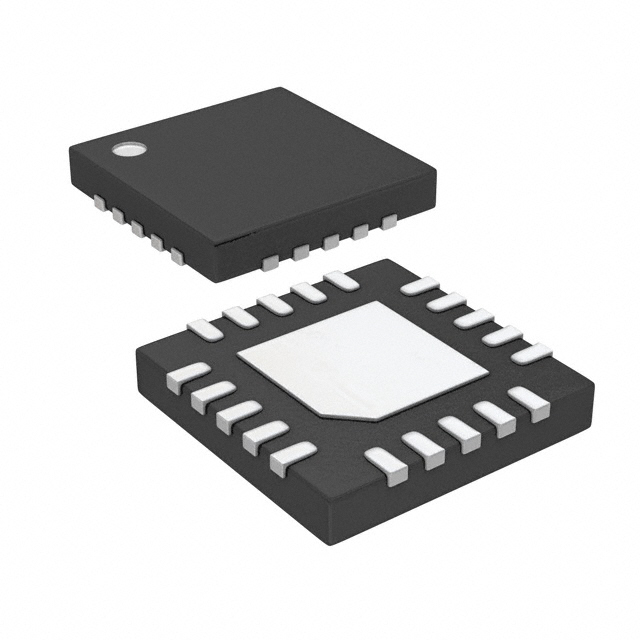

SKY12242-492LF
ActiveSkyworks Solutions Inc.
IC RF SWITCH SPDT 3GHZ 20QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SKY12242-492LF
ActiveSkyworks Solutions Inc.
IC RF SWITCH SPDT 3GHZ 20QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SKY12242-492LF |
|---|---|
| Circuit | SPDT |
| Frequency Range [Max] | 3 GHz |
| Frequency Range [Min] | 1.8 GHz |
| IIP3 | 68 dBm |
| Impedance | 50 Ohms |
| Insertion Loss | 0.8 dB |
| Isolation | 12 dB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 °C |
| Operating Temperature [Min] | -40 °C |
| P1dB | 38 dBm |
| Package / Case | 20-LQFN Exposed Pad |
| RF Type | LTE |
| Supplier Device Package | 20-QFN (5x5) |
| Test Frequency | 3 GHz |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 11.97 | |
| 10 | $ 10.83 | |||
| 25 | $ 9.98 | |||
| 100 | $ 9.12 | |||
| 250 | $ 8.55 | |||
| 500 | $ 7.98 | |||
| 1000 | $ 7.58 | |||
| Digi-Reel® | 1 | $ 11.97 | ||
| 10 | $ 10.83 | |||
| 25 | $ 9.98 | |||
| 100 | $ 9.12 | |||
| 250 | $ 8.55 | |||
| 500 | $ 7.98 | |||
| 1000 | $ 7.58 | |||
| Tape & Reel (TR) | 3000 | $ 7.27 | ||
Description
General part information
SKY12242 Series
RF Switch IC LTE SPDT 50Ohm 20-QFN (5x5)
